The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 200 g for F2 class and lower.
The comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

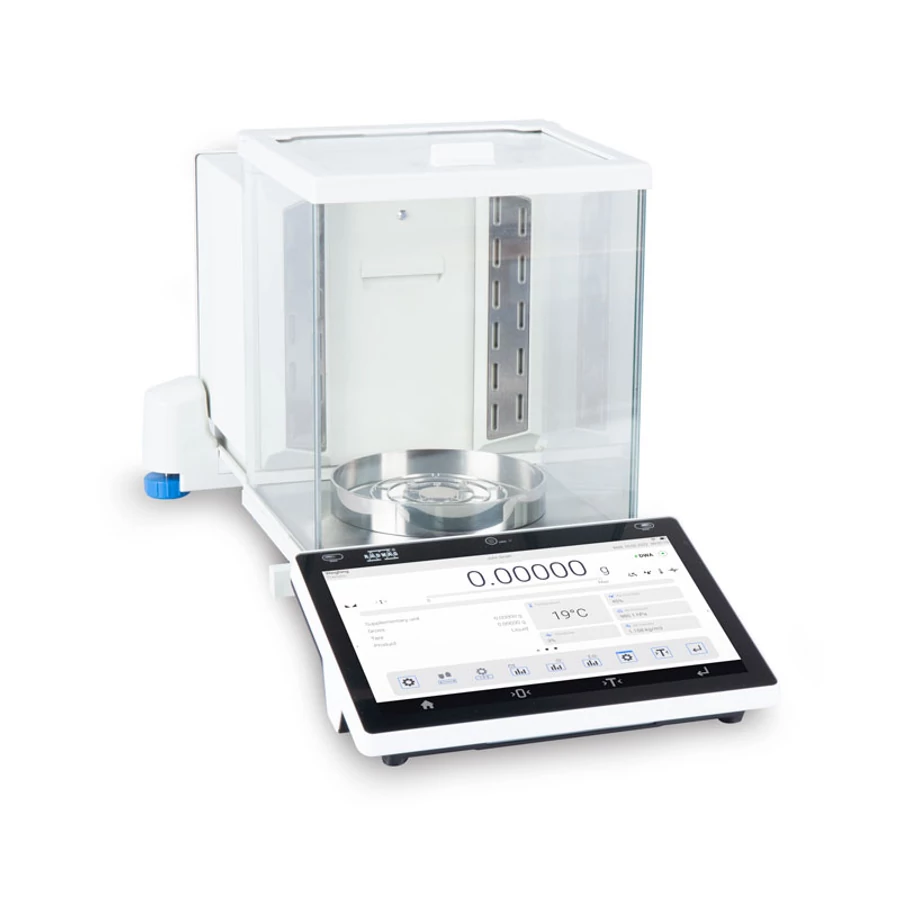

Mass comparator XA 5Y.KO series comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The comparator features an aesthetic, large weighing chamber and a glass draft shield in one. Its asset is an automatic door opening system. The XA 5Y.KO series features an intuitive menu supporting a user in instrument operation.
Functions
- Automatic sliding door
Parameters
- F2 Calibration Range: 1 mg ÷ 200 g
- M1 Calibration Range: 1 mg ÷ 200 g
- M2 Calibration Range: 1 mg ÷ 200 g
- Maximum capacity [Max]: 210 g
- Readability [d]: 0,01 mg
- Stabilization time: 5 s
- Weighing pan dimensions: ø90 mm
- Electric compensation range: 0 ÷ 210 g
- Adjustment: internal (automatic)
- Operating temperature: +15 ÷ +35 °C
- Operating temperature change rate: ±1°C/12h
- Relative humidity: 40% ÷ 70%
- Relative humidity change rate: ±5%/4h
- Weighing device dimensions: 564×253×300 mm
- E1 Calibration Range: 200 g
- E2 Calibration Range: 50 g ÷ 200 g
- F1 Calibration Range: 50 mg ÷ 200 g
- Eccentricity (tested load): 1d / 1 mm
- Packaging dimensions: 765×515×545 mm
- Net weight: 15,7 kg
- Gross weight: 20,1 kg
- Standard repeatability [5% Max]: 0,005 mg
- Standard repeatability [Max]: 0,025 mg
- Permissible repeatability: 0,05 mg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
