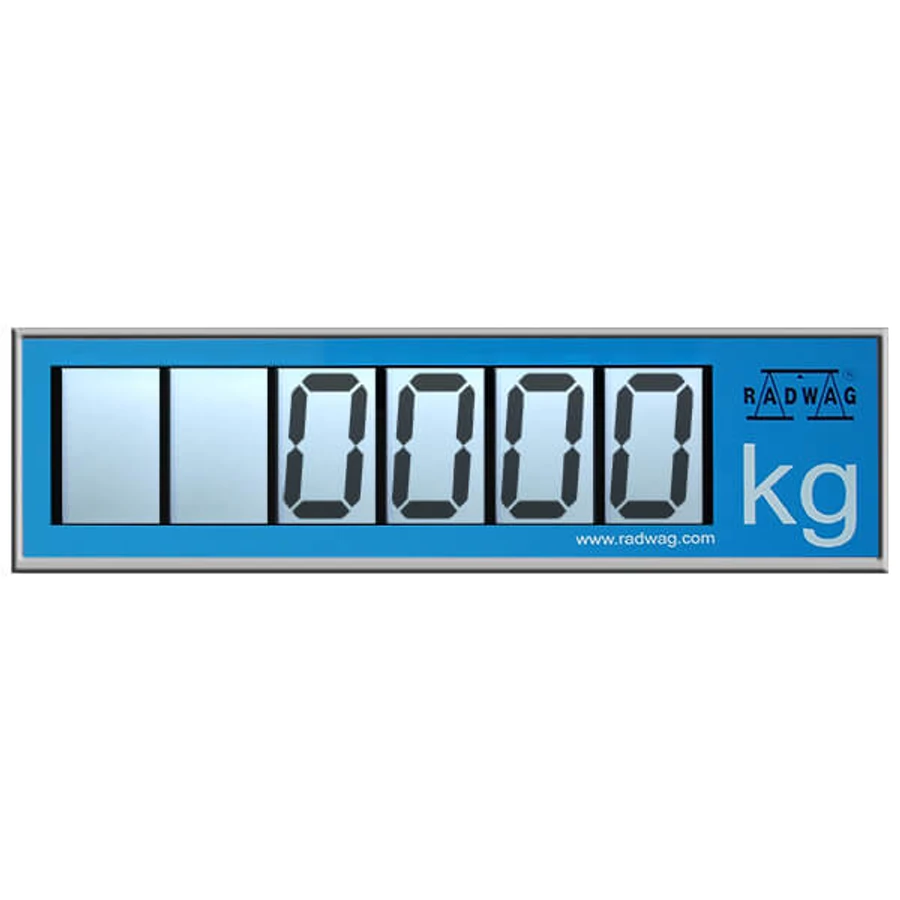

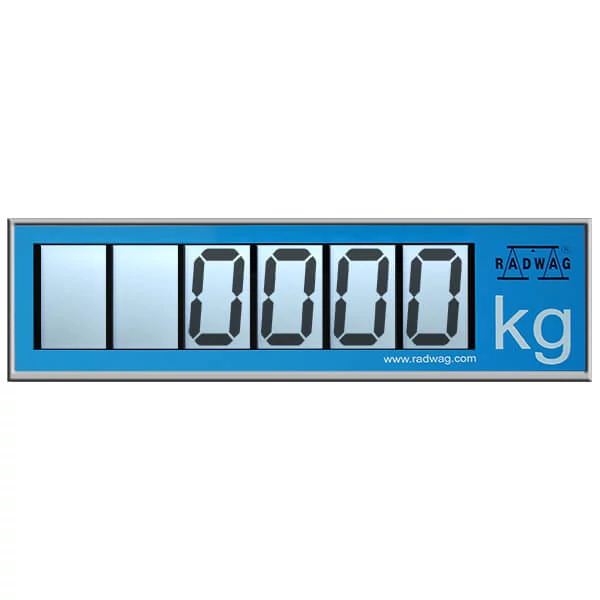

Large-size additional display, model WWG-2, is designed as a LCD display for cooperation with RADWAG scales. The display can indicate up to 6 digits each with 4,5 inches in height (11,2cm). The display is equipped with an assembly jig for hanging on a wall.
Area of use:
Mainly WWG-2 large size display is used as:
Additional equipment for load cell industrial scales; and for
Increasing scale functionality – presentation of weighing result on a large size display.
Design:
WWG-2 is an LCD large size display with diodes backlit in white colour. The display is placed in a stainless steel housing. Communication with a scale is realized through RS232, RS485 or optionally through Ethernet interfaces. Depending of version, the WWG-2 large size display can be powered from 230VAC or 7-24VAC.
Communication through RS232, power supply 230VAC. Main application as option for terminal PUE 7 series. Maximum length of RS232 connecting cable is 10m.
Parameters
- Gross weight: 7 kg
- Net weight: 5,5 kg
- Cable length: 3 (max 10) m
- Protection class: IP 66 / IP 67
- Character size: 112 mm
- Packaging dimensions: 750×280×120 mm
