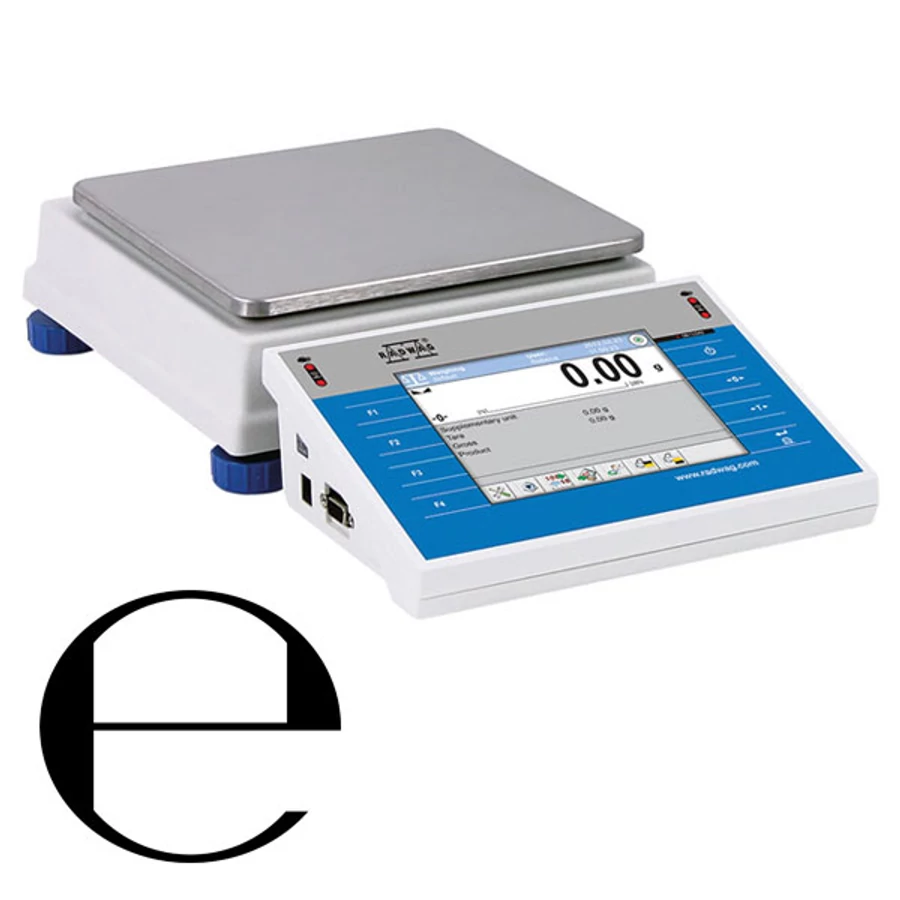

Scale WPY for statistic control
WPY/PGC is equipped with modules that put packed products control into practice. The module is supported by database containing products and operators lists. A control started by the scale is automatically stopped after controlling pre-defined quantity of packages (samples). Number of the packages is fixed by scale program depending on product batch size. Scales are equipped with 5,7" colourful, graphic touch screen display for previewing information concerning currently performed control and its result.
Control cycle runs according to the following scheme:
operator choice,
product choice,
control start,
acquiring weighing records,
automatic control end after certain packages number,
control report print.
Each carried out control is ended with a final report containing all information that is necessary for prepacked products control report. The report is automatically saved in scale memory and at the same time it can be printed by printer connected to scale.
Scale coupling with computer program enables:
keeping weighing records from successive weighments in the database,
automatic printout of control processes from computer software level,
sending user defined codes from scale to computer software; the codes match weighed product (product code, operator code, batch quantity, batch no., control Start/Stop),
defining product codes and their descriptions (names) from the level of computer program, therefore user can assign an individual product name suitable for the company's branch.
The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- Animal weighing
- Differential weighing
- Packaged Goods Control
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 1,5 / 3 kg
- Minimum load: 10 / 20 g
- Readability [d]: 0,5 / 1 g
- Tare range: -3 kg
- Weighing pan dimensions: 195×195 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: 5,7” Resistive Color Touchscreen
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- OIML Class: III
- Packaging dimensions: 530×310×150 mm
- Cable length: 1 m
