If you buy a WLY series balance by July 31, 2024,
you will receive each of these products along with a FREE lifetime license for the Workflow Module.

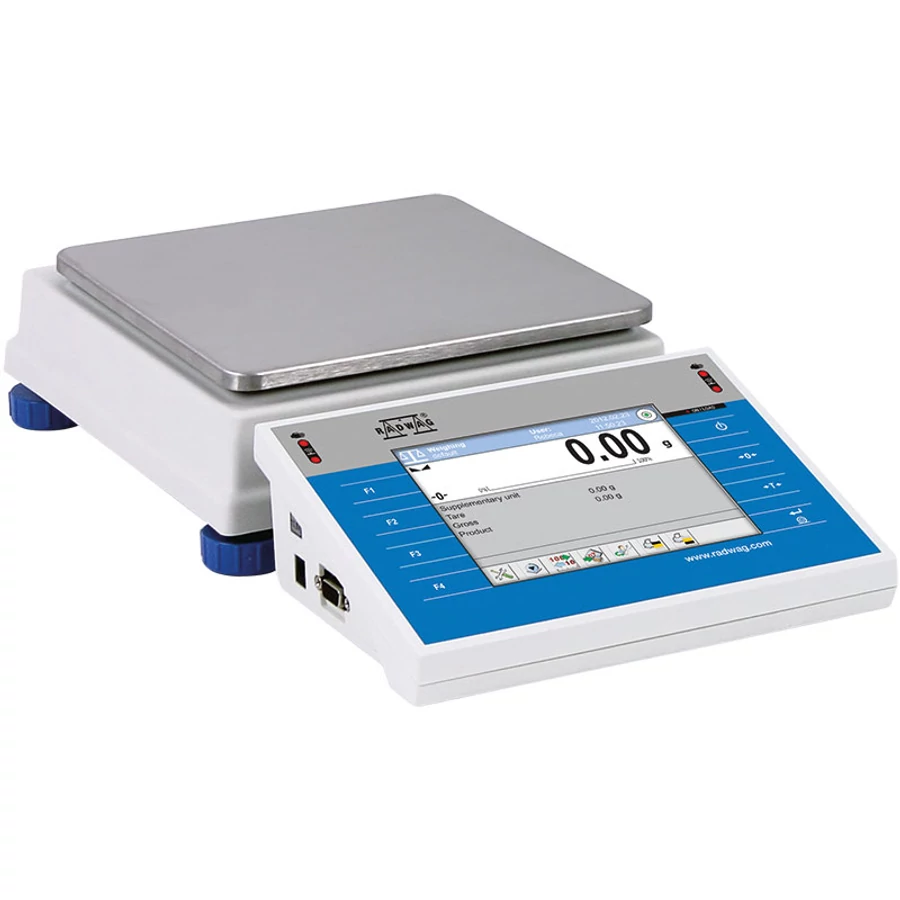

Precision Balance WLY
Fast and accurate weight determination thanks to the duo: the WLY multifunction balance and the PUE7 weighing terminal. Ease of operation and maximum automation of the weighing process.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations and differential weighing. The power of WLY’s working mods.
Use the potential
Barcode scanners, receipt printers, label printers, RFID readers, PC equipment or an additional weighing platform – thanks to multipurpose software, WLY balance can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
The Workflow Module
will improve work in your company. It enables developing a path of customized weighing process adapted to individual requirements of a particular production system, and next sending it to all weighing instruments cooperating with the E2R. The given process is started on the weighing instrument upon operator logging or after selecting a product, a formulation or an ingredient to which it is assigned. Modifications are made with use of convenient and intuitive interface.
DIY with WLY
With WLY you will Do It Yourself:
You will program on-screen keys and functional keys
You will program infrared proximity sensors
You will design printouts
You will design text data that is displayed in an indicator display.
This balance is the result of a combination of our experience and true precision.
Want to generate labels?
You can. With Label Editor software, you will generate:
Standard labels for single products
C labels for cumulative containers
CC labels for containers with cumulative containers.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- Animal weighing
- Differential weighing
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 10 kg
- Minimum load: -
- Readability [d]: 0,1 g
- Verification unit [e]: -
- Tare range: -10 kg
- Repeatability: 0,3 g
- Linearity: ±0,3 g
- Weighing pan dimensions: 195×195 mm
- Stabilization time: 3 s
- Operating temperature: +15 ÷ +30 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 43
- Adjustment: external
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Packaging dimensions: 530×310×150 mm
- OIML Class: -
- Storage temperature: -25 - +70 °C
- Net weight: 2,7 kg
- Gross weight: 3,6 kg
- Leveling system: manual
- Power supply: Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 10 – 28V DC 1A max
