Leírás

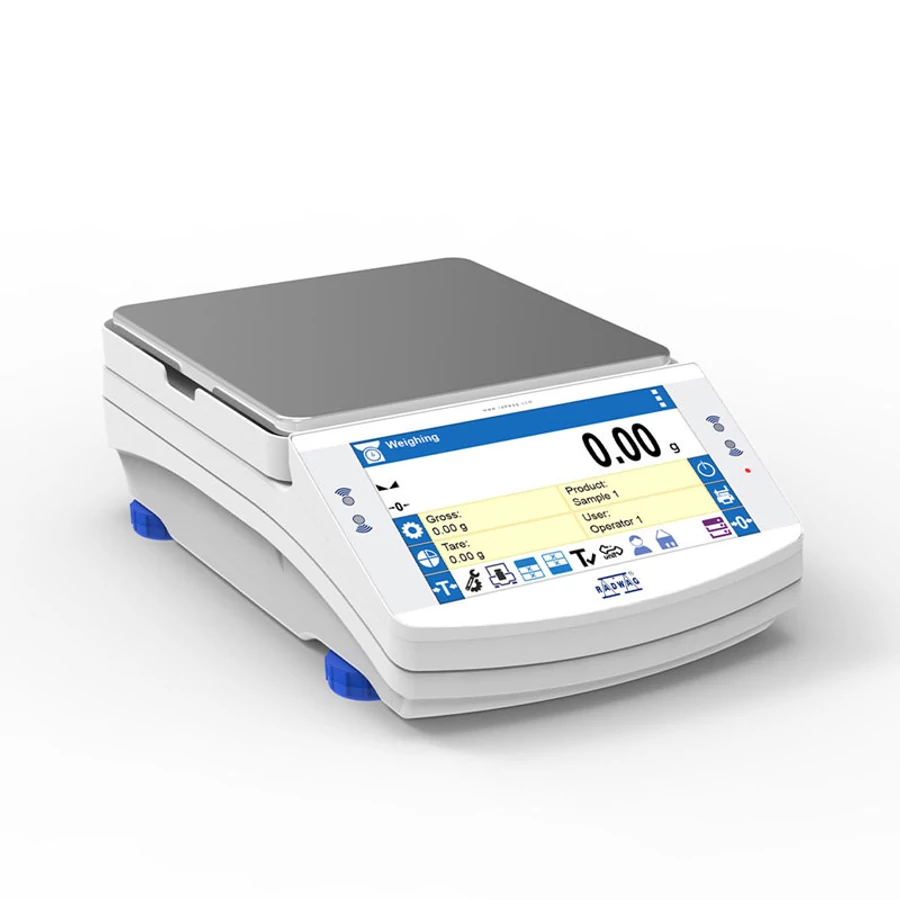

The WLC.X7 series represents a new advanced level for precision balances.
The X7 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication.
Weighing Data Management
The X7 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.
Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances.
Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.
WLC.X7 scales are equipped with many communication interfaces: 2 x RS 232, USB type A, USB type B and Wireless Connection.
Databases in X7 series balances
In new WLC.X7 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
Users (up to 100 users),
Products (up to 5 000 products),
Weighments (up to 50 000 weighments),
Packaging (up to 100 packaging types),
Formulas (up to 100 formulas),
Clients (up to 1000 clients),
ALIBI memory (up to 512 000 weighments).
The X7 series features option of making reports on formulas (up to 500 reports).
Personalization taken to the next level
The X7 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X7 series offers direct access to the results of your work and other important information directly from the home screen.
ALIBI Memory
The X7 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well.
The ALIBI memory allows to record up to 500 000 weighment records.
Under-Pan Weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Autotest
- Dosing
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Animal weighing
- Density determination
- Ambient conditions monitoring
- Replaceable unit
- Statistical Quality Control
- ALIBI Memory
- Mass for titrator
- Wi-Fi
Parameters
- Readability [d]: 0,01 g
- Maximum capacity [Max]: 2 kg
- Tare range: -2 kg
- Repeatability: 0,015 g
- Linearity: ±0,03 g
- Stabilization time: 2 s
- Weighing pan dimensions: 195×195 mm
- Operating temperature: +10 ÷ +40 °C
- Adjustment: internal (automatic)
- Display: 7″ graphic colour touchscreen
- Communication interface: 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi
- Packaging dimensions: 430×270×190 mm
- Database capacity: 7
- Net weight: 2,2 kg
- Gross weight: 3,5 kg
- Verification unit [e]: -
- Leveling system: manual
- Delivery components: Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 10 – 15VDC 0,6A max - Protection class: IP 43
