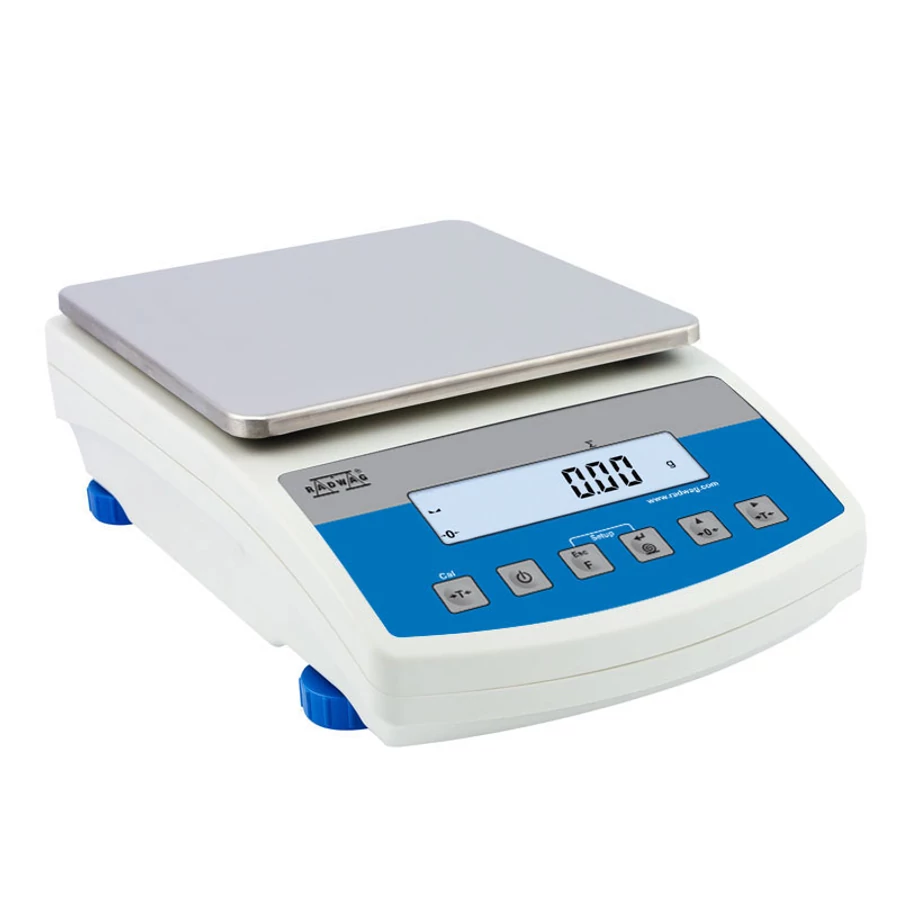

Precision of WLC balances
Fast, accurate and repeatable weight determination. Energy-efficient electronics and display, combined with an internal rechargeable battery, are the perfect duo to allow you to work without access to mains power.
Precision not just in the name
When we designed this balance, we took care of the smallest details – both those you can’t see, hidden in the solid housing, and those you can touch. This balance is the result of a combination of our experience and true precision.
The power of steel
The use of stainless steel for the pan guarantees you a long life for the balance. It is not afraid of contact with moist objects or accidental splashes.
It has been with us for years, and will stay for a long time to come
The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient.
Internal power
The internal rechargeable battery combined with the energy-saving display and electronics allow many hours of operation without mains power.
Time counts
The balance is equipped with a real-time clock that provides accurate time measurement in a way that is independent of external power supply.
There is potential
Printer, computer, flash drive or additional display – you can easily connect them thanks to the fact that the balance is equipped with interfaces: 2 x RS232, USB type A and USB type B. Optionally, the balance can be equipped with 4 IN and 4 OUT. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Good ALIBI
The ALIBI memory used in the terminal allows for safe storage of weighing records without the possibility of unauthorized interference. A single measurement remains in the ALIBI memory up to a preset limit number of days of storage, counting from the date it was taken.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Under-pan weighing
Parameters
- Maximum capacity [Max]: 1 kg
- Readability [d]: 0,01 g
- Tare range: -1 kg
- Repeatability: 0,01 g
- Linearity: ±0,03 g
- Weighing pan dimensions: 195×195 mm
- Stabilization time: 3 s
- Operating temperature: +15 ÷ +30 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 43
- Operation time on batteries: 15 h (average time)
- Display: LCD (backlit)
- Communication interface: 2×RS232, USB-A, USB-B, 4 IN / 4 OUT
- Packaging dimensions: 430×270×190 mm
- Adjustment: external
- Net weight: 2,8 kg
- Gross weight: 4 kg
- Verification unit [e]: -
- Leveling system: manual
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 10 – 15VDC 0,6A max - Minimum load: -
- OIML Class: -
