Leírás
The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.
Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

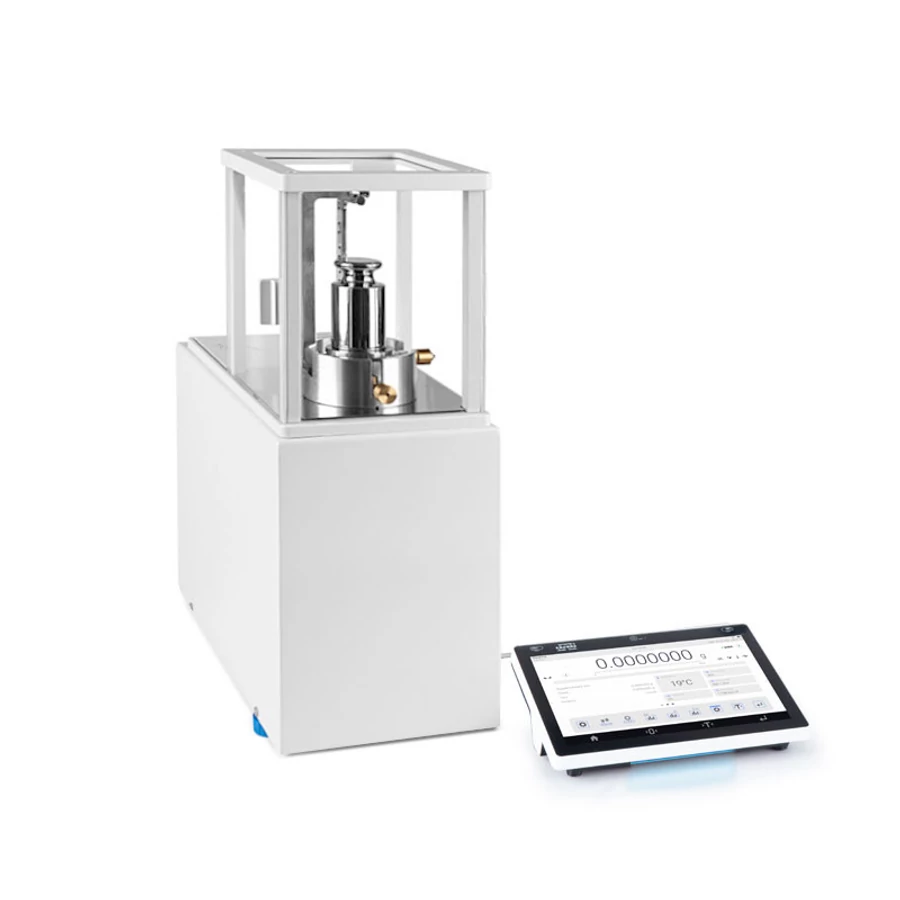

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.
Parameters
- E1 Calibration Range: 500 g ÷ 1 kg
- E2 Calibration Range: 100 g ÷ 1 kg
- F1 Calibration Range: 10 g ÷ 1 kg
- F2 Calibration Range: 1 g ÷ 1 kg
- M1 Calibration Range: 1 g ÷ 1 kg
- M2 Calibration Range: 1 g ÷ 1 kg
- Maximum capacity [Max]: 1,02 kg
- Readability [d]: 0,01 mg
- Stabilization time: 30 s
- Weighing pan dimensions: ø60 mm
- Electric compensation range: -10 g ÷ +20 g
- Adjustment: internal
- Supplementary weights internal: automatic
- Supplementary weights external: 50 g, 30 g, 2× 10 g
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ± 3 % / 4 h
- Weighing device dimensions: 385×215×525 mm
- Packaging dimensions: 860×800×550 mm
- Eccentricity (tested load): 1d / 1 mm
- Anti-draft chamber dimensions: 660×470×700 mm
- Chamber packaging size: 820×850×630 mm
- Net weight: 38 kg
- Gross weight: 58 kg
- Standard repeatability [5% Max]: 0,025 mg
- Standard repeatability [Max]: 0,03 mg
- Permissible repeatability: 0,05 mg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
