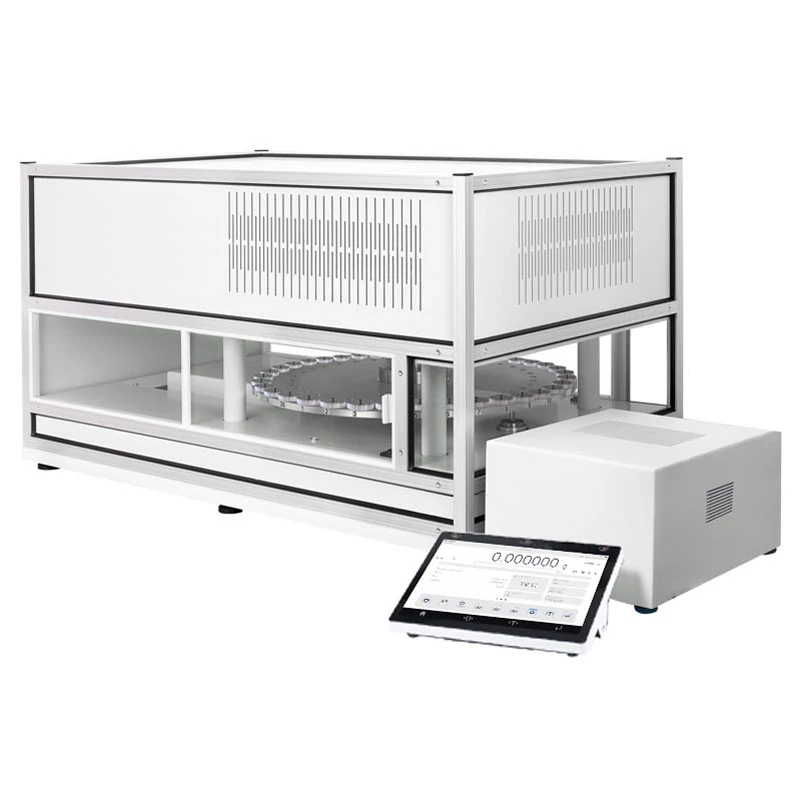

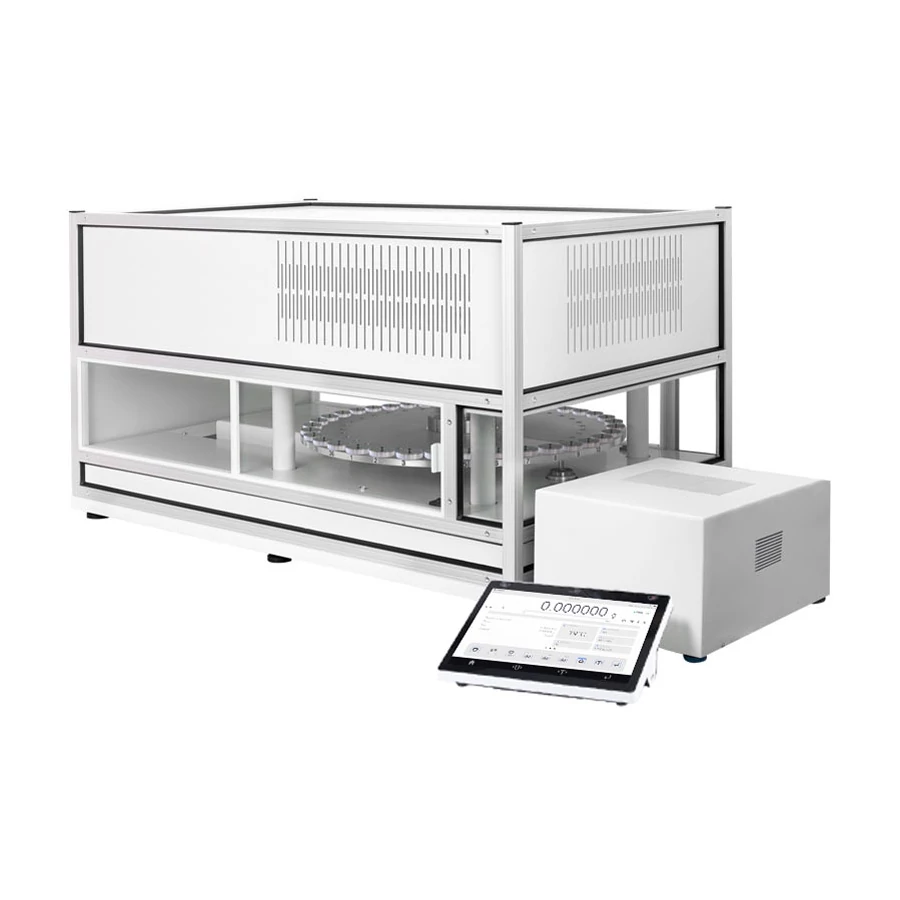

The UMA 2.5Y.F automatic weighing system has been designed to test mass changes of filters made of quartz glass fibre, glass fibre, teflon and teflon covered with glass fibre. Mass measurement is carried out with readability of 1 μg or 0.1 μg. The weighing system enables conditioning filters in accordance with PN-EN 14907 and PN-EN 12341 standards.
Effective and Excellent Measurement
The UMA 2.5Y.F automatic weighing system is a first-class solution for professional mass measurement. Dynamic control and correction of mass indications both ensure fast and stable weighing regardless of the weighed filter type.
The UMA weighing systems, due to the elimination of the human factor, temperature changes and air drafts, guarantee excellent measurement repeatability.
Effective Weighing Analysis
Full automation of the weighing cycle, thanks to the elimination of the ‚human factor’, is a guarantee of measurement repeatability impossible to be obtained in case of manual weighing. Remote programming of measurement processes significantly increases operation efficiency.
Dedicated Software
The RMCS Filters software allows to manage time and comparison test plans of each filter or filter series. Summary reports and report components are defined by the system administrator.
Metrological Control
Periodically, correctness of weighing system operation is verified via a certified mass standard or a reference filter.
Compact Design
The UMA 2.5Y.F automatic weighing system can be easily adapted to any laboratory conditions. The device size facilitates its placing on the anti-vibration table of standard dimensions.
Ambient Conditions Module
The ambient conditions module is housed inside the bottom part of the weighing system. This results with a laminar air flow that does not disturb the ongoing filter mass measurement. The range of temperature and humidity changes is automatically forced in accordance with the values programmed via device terminal.
Parameters
- Maximum capacity [Max]: 2,1 g
- Readability [d]: 1 µg
- Repeatability (Max): 1 - 2 µg
- Repeatability low load: 0,5
- Stabilization time: 30 s
- Adjustment: internal (automatic)
- Operating temperature: +15 ÷ +30 °C
- Storage temperature: -20 ÷ +50 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ± 2 % / 4 h
- Weighing pan dimensions: ø20 mm
- Magazine positions: 24 filtrów
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Tare range: -2,1 g
- Linearity: ≤ 1,5 µg
- Weighing device dimensions: 950×590×540 mm
- Controling device dimensions: 460×250×195 mm
- Packaging dimensions: 1200×800×950 mm
- Net weight: 102,5 kg
- Gross weight: 183,5 kg
- Display: 10″ graphic colour touchscreen
- Power supply: 100 – 240 V AC 50/60 Hz
