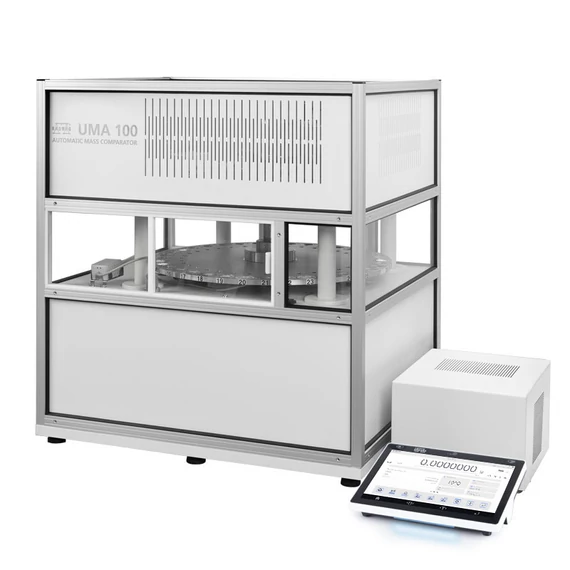

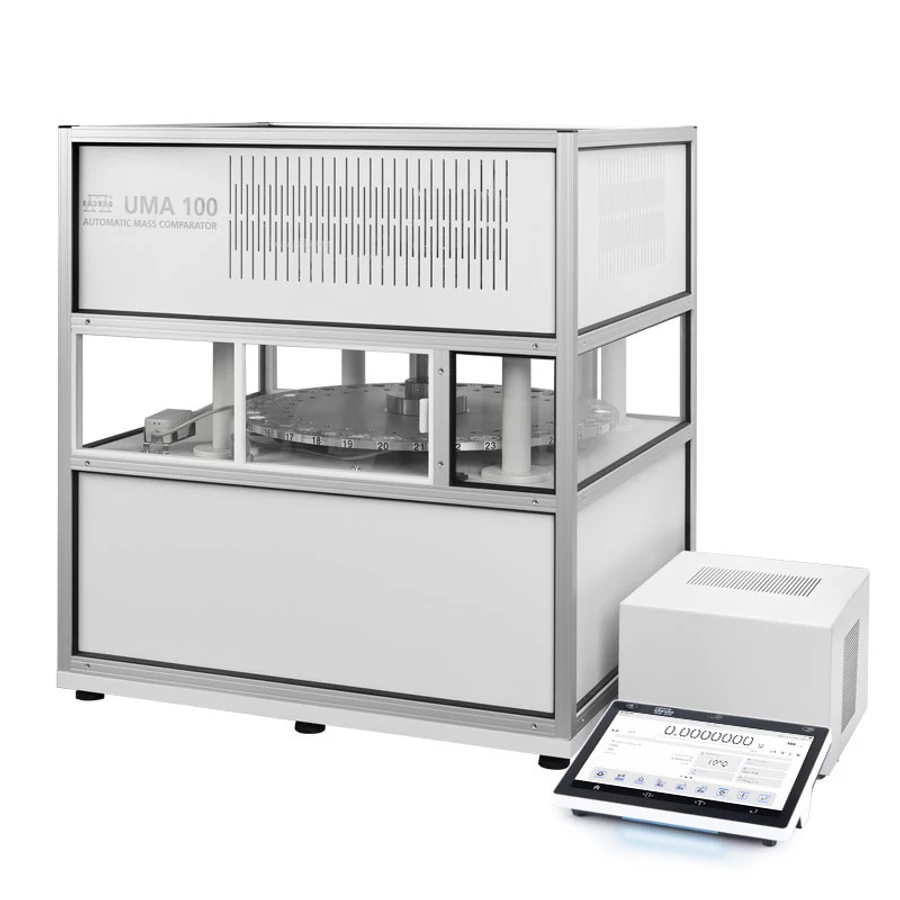

Mass comparators of UMA 100 series stand for the highest standard of professional automatic mass comparators.
They provide comparison of 1 g – 100 g weights of E1 and lower classes.
The device is equipped with 36 magazine positions allowing to deposit up to 36 weights. This solution allows to perform either comparison for complete set of weights carried out within one process or comparison for just a few weights of the same mass.
Owing to elimination of human factor and with temperature changes and air drafts reduced to zero, UMA automatic mass comparators provide the highest possible measurement repeatability.
Parameters
- Maximum capacity [Max]: 110 g
- E1 Calibration Range: 1 g ÷ 100 g
- E2 Calibration Range: 1 g ÷ 100 g
- F1 Calibration Range: 1 g ÷ 100 g
- F2 Calibration Range: 1 g ÷ 100 g
- M2 Calibration Range: 1 g ÷ 100 g
- Readability [d]: 0,001 mg
- Stabilization time: 30 s
- Electric compensation range: -1 g ÷ +10 g
- Adjustment: external
- Power supply: 100 – 240 V AC 50/60 Hz
- Weighing pan dimensions: ø21 mm
- Supplementary weights internal: automatic
- Supplementary weights external: -
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ±5%/12h (3%/4h)
- Weighing device dimensions: 700×585×720 mm
- Controling device dimensions: 460×250×195 mm
- Packaging dimensions: 1200×1000×1566 mm
- Magazine positions: 36
- Eccentricity (tested load): 0 mg
- Net weight: 114,3 kg
- Gross weight: 204,3 kg
- Standard repeatability [5% Max]: 1,5 µg
- Standard repeatability [Max]: 2 µg
- Permissible repeatability: 3,5 µg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- M1 Calibration Range: 1 g ÷ 100 g
