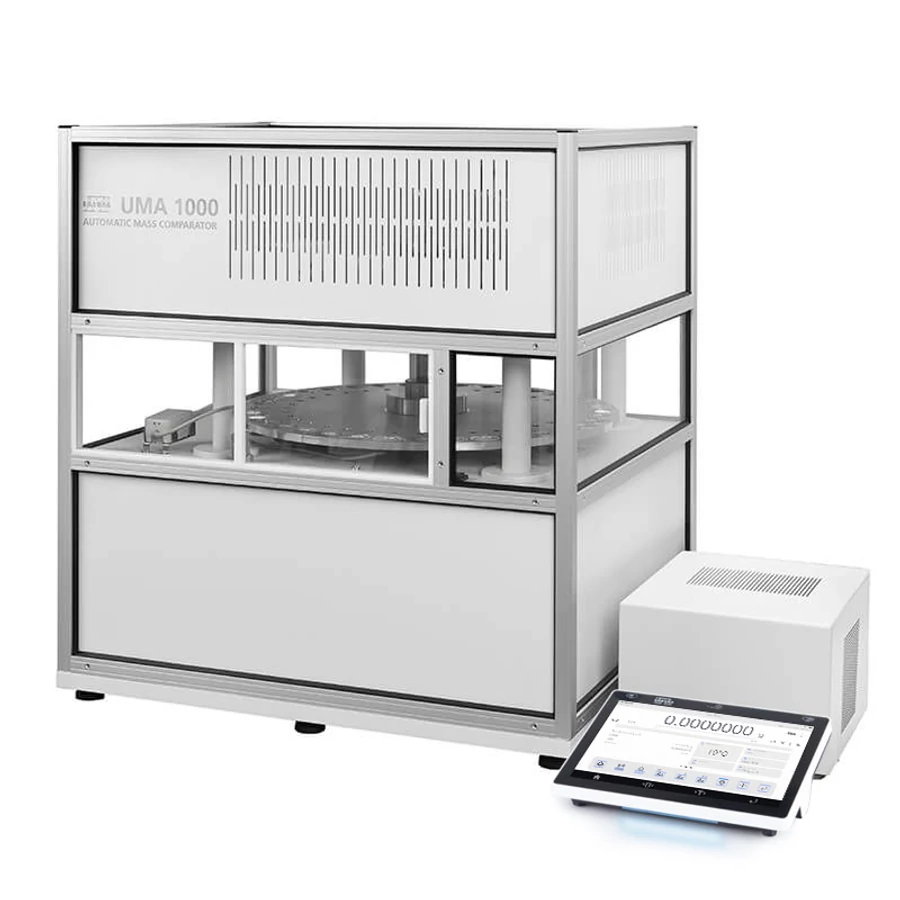

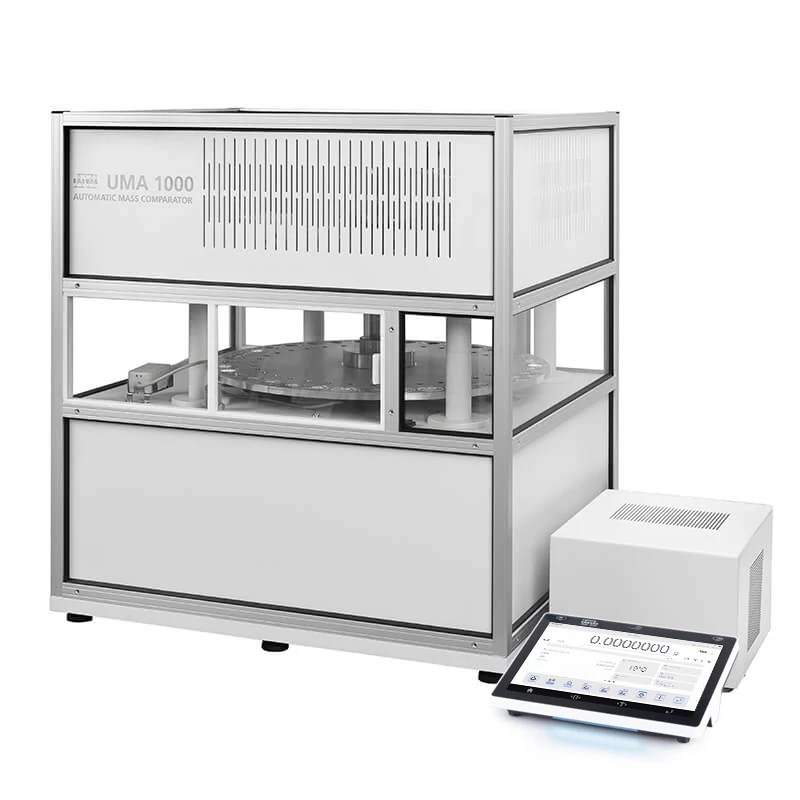

Mass comparators of UMA 1000 series stand for the highest standard of professional automatic mass comparators.
They provide comparison of 100 g – 1000 g weights of E1 and 10 g - 1000 g weights of E2 and lower classes.
The device is equipped with 18 magazine positions allowing to deposit up to 18 weights. This solution allows to perform either comparison for complete set of weights carried out within one process or comparison for just a few weights of the same mass.
Owing to elimination of human factor and with temperature changes and air drafts reduced to zero, UMA automatic mass comparators provide the highest possible measurement repeatability.
Parameters
- Maximum capacity [Max]: 1060 g
- E1 Calibration Range: 100 g ÷ 1000 g
- E2 Calibration Range: 10 g ÷ 1000 g
- F1 Calibration Range: 10 g ÷ 1000 g
- F2 Calibration Range: 10 g ÷ 1000 g
- Readability [d]: 0,005 mg
- Stabilization time: 30 s
- Electric compensation range: -10 g ÷ +60 g
- Adjustment: external
- Power supply: 100 – 240 V AC 50/60 Hz
- Weighing pan dimensions: ø48 mm
- Supplementary weights internal: automatic
- Supplementary weights external: -
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ±5%/12h (3%/4h)
- Weighing device dimensions: 700×585×720 mm
- Controling device dimensions: 460×250×195 mm
- Packaging dimensions: 1200×1000×1200 mm
- Magazine positions: 18
- Eccentricity (tested load): 0 mg
- Net weight: 116 kg
- Gross weight: 206 kg
- Standard repeatability [5% Max]: 8 µg
- Standard repeatability [Max]: 12 µg
- Permissible repeatability: 20 µg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
