Multifunctional scales TMX is designed to fast and precise determination of mass in industrial conditions.
TMX

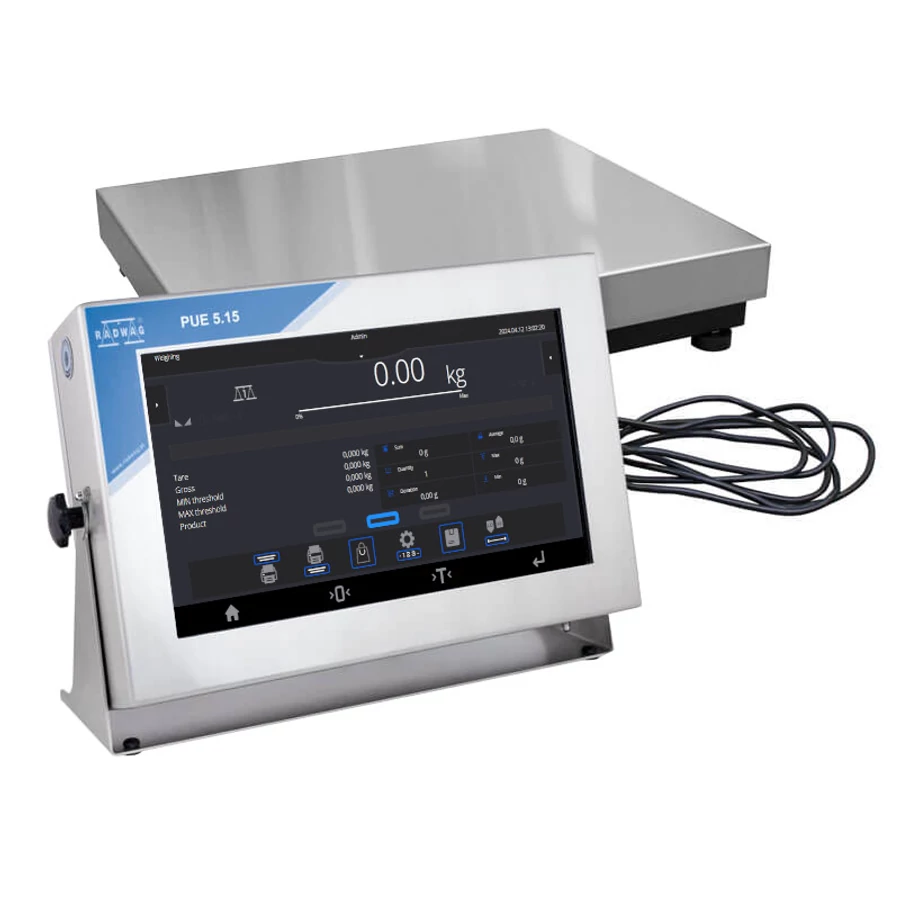

Multifunctional scales TMX comprises terminal PUE 5 and a weighing platform.
Labelling system series TMX is used to print labels for marking weighted goods e.g. in the process of packing.
The program can generate standard labels for single goods.
Functionality of the software:
a function of weight control (weighing control + / -),
previewing weighments carried out on weighing terminal as a table of weighments,
simplified reporting module allowing the report to be generated,
creation of label templates from labels in weighing terminal,
identification of goods by using the code EAN-13 and EAN-128,
quick search using the range of barcode scanner,
the availability of databases: the operators, products, clients, warehouses, tares (packages), etc.
The application enables measurements execution and their record into a local database or on the server. Networked terminals allow transmission of the measurements to the parent database installed on the server.
The ability to work with a computer program E2R SYSTEM.
Terminal types:
PUE 5.15R, PUE 5.19R – resistive touch screen technology. Protection class IP68. High resistance to moisture and dust. In comparison to remaining models, limited brightness and lower resistance to shocks and scratches. Possibility of operation using gloves preventing scratches (latex, material).
PUE 5.15IR, PUE 5.19IR – infrared touch screen technology. Protection class IP68. Very high brightness and readability level. High resistance to moisture and dust. High mechanical resistance, possibility of operation using gloves (made of latex, material or even steel chain).
PUE 5.15C, PUE 5.19C – capacitive touch screen technology. Protection class IP68. High brightness and readability level. High resistance to moisture and dust, good mechanical resistance. Absolute precision of touch detection, sensing multiple points of touch (multi-touch).
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Parts counting
- Formulation
- Statistics
- Checkweighing
Parameters
- Controling device dimensions: 560×360×240 mm
- Display: 15,6” graphic colour touchscreen
- Power supply: 100 – 240 V AC 50/60 Hz
- Protection class: IP 43 construction, IP 68 (1h max)/69 terminal
- Relative humidity: 10% ÷ 85% RH no condensation
- Operating temperature: 0 ÷ +40 °C
- Weighing pan dimensions: 500×700 mm
- Minimum load: 2 kg
- Readability [d]: 100 g
- Tare range: -300 kg
- Maximum capacity [Max]: 300 kg
- OIML Class: III
- Power consumption: 45 W
- Max readability for non-verified scale: 10 g
- Packaging dimensions: 730×800×510 mm
- Cable length: 2,5 m
- Communication interface: 4×USB 2.0 (2×USB-A, 2×M12 4P), Ethernet - 2×10/100/1000 Mbit (2×RJ45 hermetic), Profibus DP (operation mode: slave), 2×RS232, RS485 (2×M12 8P), 4IN / 4OUT (2×ports M12 8P or 2×cables fed through the cable gland)
- Optional interfaces: external buttons PRINT, TARE, START - wymagana wersja terminala z zainstalowanymi 4IN/4OUT (ports M12 8P), additional weighing platform module - max. 3 pcs, metrological parameters as in the main weighing platform
