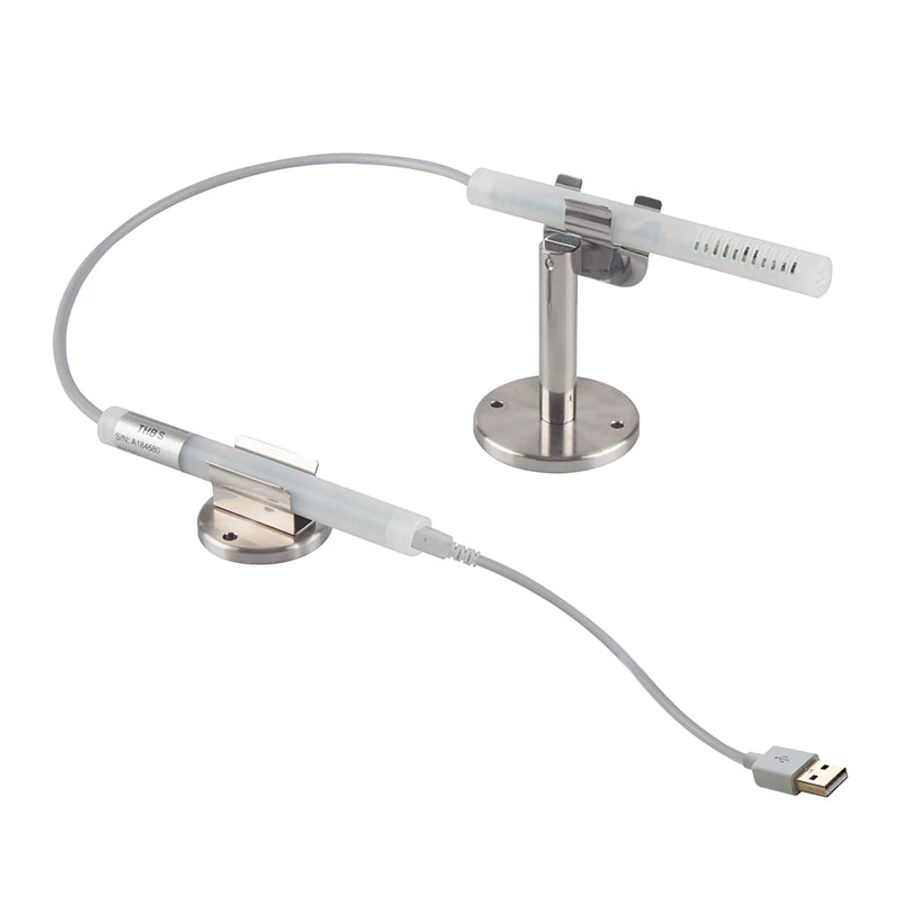

THB sensor
THB sensor is a device measuring ambient conditions, it cooperates with:
a computer (1 sensor via USB 2.0 port); direct cooperation,
a weighing device (1 sensor via USB 2.0 port); direct cooperation,
a THBR Box (up to 4 sensors connected to THBR Box via USB 2.0 port).
The THB sensor is designed to measure parameters such as temperature, humidity, pressure, air density and vibrations level. Sensor registers level of permissible vibrations at the workstation, wherein the values of vibrations level are displayed within 0 - 100% range versus reference values in laboratory conditions. Values exceeding 100% threshold inform about potential occurrence of error greater than permissible error of mass measurement performed using weighing device.
Each sensor has its own identification number that is assigned to measurements saved to the database.
Ambient conditions can be monitored using:
weighing instrument display
website
Windows OS application: THB Single or THB Multi
Android application.
On the basis of sent measurements, the THB Single or THB Multi software determines air temperature, humidity, pressure, density and permissible vibrations factor.
Parameters
- Measured temperature range: +5 – +45 °C
- Measured pressure range: 850 -1050 hPa
- Measured humidity range: 0-100 %
- Temperature readability [d]: 0,001 °C
- Temperature measurement accuracy: +/- 0,1 °C
- Pressure readability [d]: 0,001 hPa
- Pressure measurement accuracy: 1 hPa
- Humidity readability [d]: 0,01 %
- Humidity measurement accuracy: +/- 1,8 %
- Communication interface: USB 2.0
- Vibrations detection: YES
- Air density determination: YES
- Operating temperature: +5 – +45 °C
