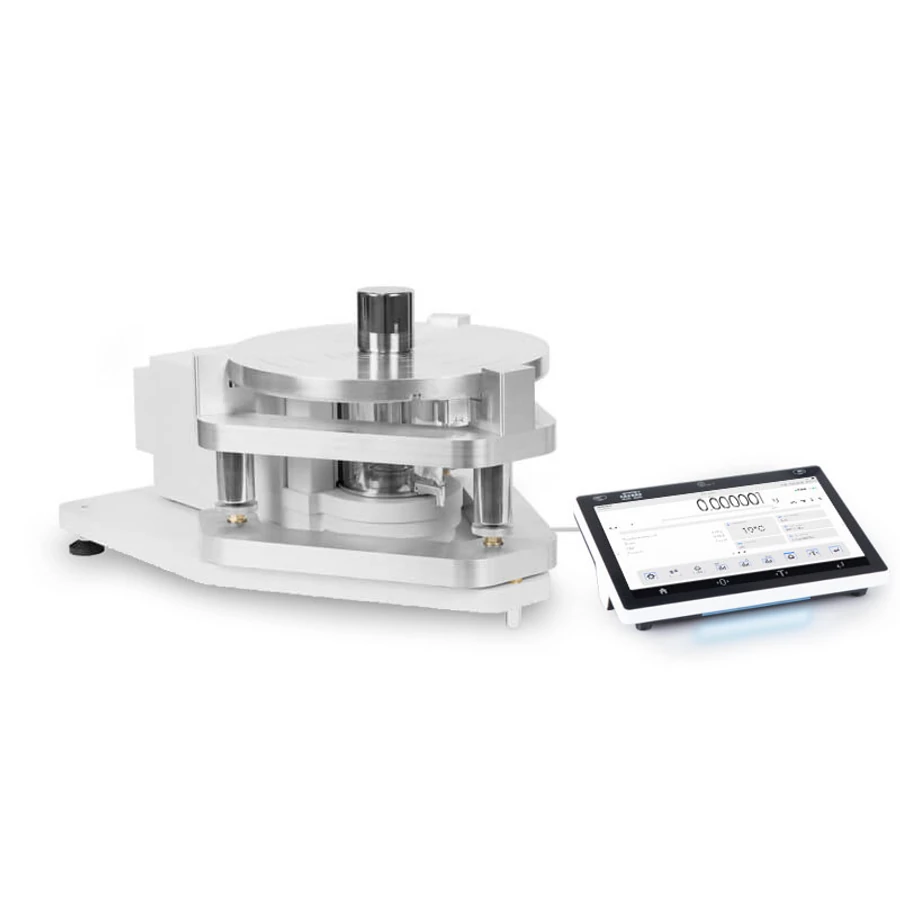

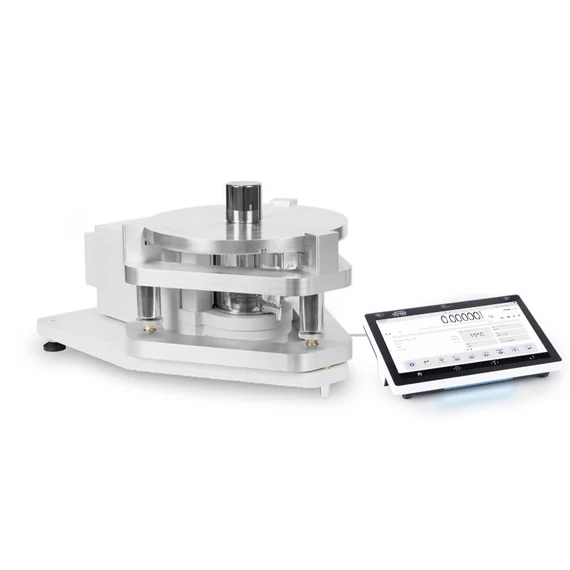

RADWAG-manufactured susceptometer enables carrying out measurements of magnetic susceptibility and magnetization of weights of E1 and lower classes in accordance with OIML R111.
Modular design, upon disassembling respective module, enables using the susceptometer as a mass comparator or a balance.
Compared to the previous model, the new one features option of internal adjustment and higher readability: [d] 0.1 μg for loads ranging from 2 g to 50 kg.
Parameters
- Maximum capacity [Max]: 50 kg
- E2 Calibration Range: 2 g ÷ 50 kg
- F1 Calibration Range: 2 g ÷ 50 kg
- F2 Calibration Range: 2 g ÷ 50 kg
- Calibration Range: 2g÷50kg
- Readability [d]: 1 µg
- Stabilization time: 10 s
- Adjustment: internal (automatic)
- Housing: ABS plastic
- Memory: RAM 256 MB DDR2, 16GB - microSD
- Processor: 2×1 GHz
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ± 2 % / 4 h
- Weighing pan dimensions: ø300 mm
- Dipole moment of magnets: <= 0,1 Am2
- Magnetizing field strenght: 2700, 2000, 800, 380, 200 A/m
- Distance platform Z0: 18; 20; 27; 35; 43 mm
- Device dimensions: 525×350×250 mm
- Packaging dimensions: 950×750×750 mm
- Net weight: 26 kg
- Gross weight: 36 kg
- E1 Calibration Range: 2 g ÷ 50 kg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Weighing chamber doors: automatic
