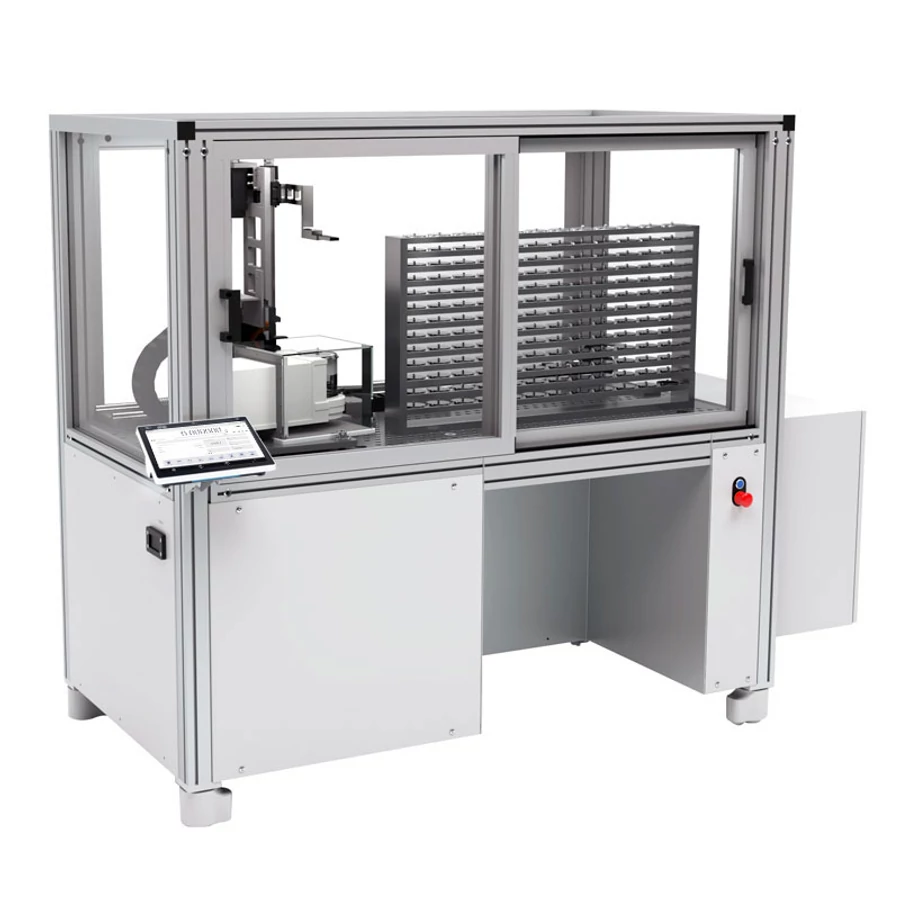

The RMC 2.5Y.F filter robot is a professional-class measuring device ensuring full automation of filter mass measurement. The robot is based on MYA 5Y microbalance mechanism that guarantees unrivalled repeatability and readability of d= 1 µg. The device enables weighing up to 156 filters.
The device is enclosed in a tight and dustproof chamber protecting it against any contamination. Ambient conditions monitoring allows control of current chamber status and report of data.
Advantages:
Compliance with EN 12341:2014 standard
Less time consuming when compared to manual filter weighing
Elimination of human factor as the reason of measurement errors
Process management using RMCS Filter software
Automatic data recording, creating reports and statistics
Coding and identification of filters using QR code system
Elimination of the influence of electrostatics onto the measurement
The RMC 2.5Y.F filter robot comprises:
a six-position reference magazine for storing mass standards and reference filters;
a robot with a gripper enabling transport of the filters between the magazine and the microbalance, the robot moves on three axes: X,Y,Z;
a microbalance with a draft shield;
an ionizing system;
ambient conditions monitoring (temperature, humidity, pressure);
a weighing indicator for managing of the device operation;
an integrated QR code reader;
a QR code printer;
a PC with the RMCS Filter software for managing the device operation.
Parameters
- Relative humidity: 30% ÷ 70%
- Operating temperature: +10 ÷ +40 °C
- Stabilization time: 10 - 20 s
- Linearity: ≤ 1,5 µg
- Tare range: -2,1 g
- Readability [d]: 1 µg
- Maximum capacity [Max]: 2,1 g
- Adjustment: internal
- Operating temperature change rate: ±0,3°C/1h (±1°C/8h)
- Relative humidity change rate: ±1%/h (±4%/8h)
- Repeatability (5% Max): 0,5 µg
- Repeatability (Max): 1 - 2 µg
- OIML Class: I
- Net weight: 400 kg
- Gross weight: 500 kg
- Verification unit [e]: 1 mg
- Keypad: 8 buttons
- Touch-free operation: 2 IR Sensors
- Storage temperature: -20 ÷ +50 °C
- Device dimensions: 2108×1067×1595 mm
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Power supply: 110 – 240 V AC 50/60 Hz
