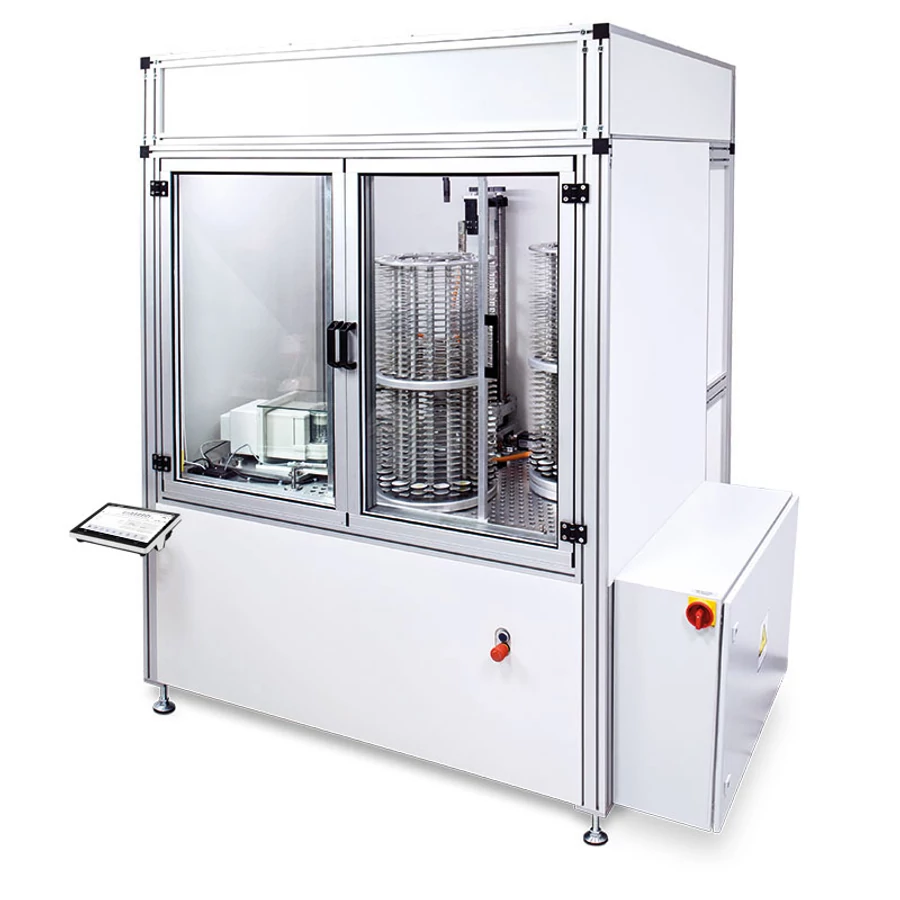

The RB 2.5Y.F filter robot is a professional-class measuring device ensuring full automation of filter mass measurement. The robot is based on MYA 5Y microbalance mechanism that guarantees unrivalled repeatability and redability of d= 1 µg. The device enables weighing up to 1020 filters with 47 mm diameter.
The device is enclosed in a tight and dustproof chamber protecting it against any contamination. The air conditioning and humidification system ensures stable and fixed ambient conditions inside the chamber, which guarantees correct filters conditioning. Ambient conditions monitoring allows control of current chamber status and report of data.
Advantages:
Fully automatic system for weighing filters with Ø 47 mm
Compliance with EN 12341:2014 standard
Conditioning and weighing of up to 1020 filters
Additional reference magazine
Less time consumed when compared to manual filter weighing
Elimination of human factor as the reason of measurement errors
Process management using RMCS Filter software
Automatic data recording, creating reports and statistics
Coding and identification of filters using QR code system
Elimination of the influence of electrostatics onto the measurement
Hermetic robot chamber and the chamber for filter weighing
Air conditioning system, HEPA filter (version without air conditioning on request)
Increased pressure in the chamber prevents contamination
The RB 2.5Y.F filter robot comprises:
Two magazines for filter storage and weighing. Each magazine consists of 34 discs with 15 filter positions.
A six-position reference magazine for storing mass standards and reference filters.
A robot with a gripper enabling transport of the filters between the magazine and the microbalance, the robot moves on three axes: X,Y,Z;
Microbalance with a draft shield;
Ionizing system;
An air conditioning system with HEPA filter for cleaning the air in the vicinity of the robot chamber;
Ambient conditions monitoring (temperature, humidity, pressure);
Weighing indicator for managing of the device operation;
QR code reader integrated with the device;
QR code printers;
A PC with the RMCS Filters software for managing the device operation;
Control and adjustment system;
An external air conditioning unit.
Parameters
- Relative humidity: 30% ÷ 70%
- Operating temperature: +19 ÷ +25 °C
- Stabilization time: 10 - 20 s
- Linearity: ≤ 1,5 µg
- Tare range: -2,1 g
- Readability [d]: 1 µg
- Maximum capacity [Max]: 2,1 g
- Adjustment: internal
- Operating temperature change rate: ±0,3°C/1h (±1°C/8h)
- Relative humidity change rate: ±1%/h (±4%/8h)
- Repeatability (5% Max): 0,5 µg
- Repeatability (Max): 1 - 2 µg
- OIML Class: I
- Net weight: 700 kg
- Gross weight: 775 kg
- Verification unit [e]: 1 mg
- Keypad: 8 buttons
- Touch-free operation: 2 IR Sensors
- Storage temperature: -20 ÷ +50 °C
- Device dimensions: 1900×1410×2160 mm
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Power supply: 110 – 240 V AC 50/60 Hz
