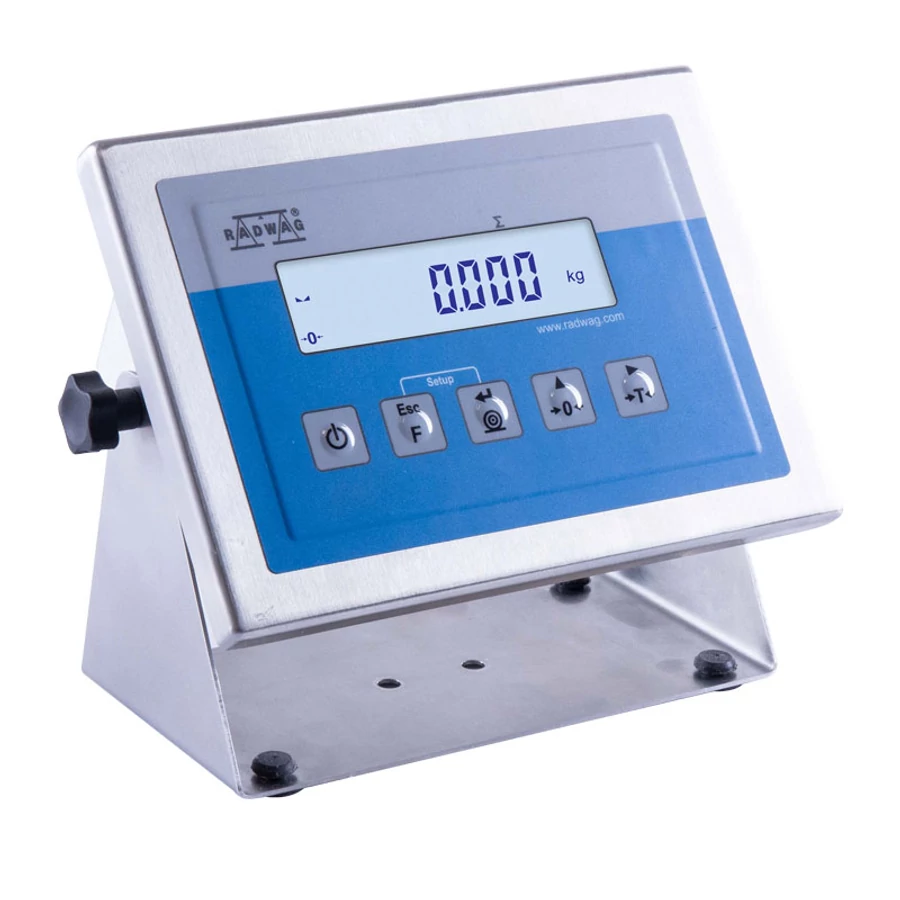

The terminal is intended to be a component of a vast range of industry scales – from small table-top scales, through platform, ramp, track and pallet scales, to livestock scales. It is equipped with a stainless steel housing of high ingress protection, IP 66/IP 67/IP 69. By standard the terminal features RS 232 and USB interfaces.
Operation Ergonomics and Durability
A brand new design of the housing makes the terminal a compact device, which positively influences the comfort of operation. Another useful facility is the multifunctionally, this feature allows to operate the device when placed on a table or mounted to a post. In either case, tilt regulation is available. The said tilt regulation is also a convenience offered by a wall-mounting bracket.
Besides, high ingress protection rate, which is the basic characteristic of the terminal, means failure free operation under harsh industrial conditions.
Working Modes and Functions
The terminal has been equipped with numerous working modes: Parts Counting, +/- Control, Percent weighing, Totalizing, Peak Hold and Animal Weighing.
Additionally, it enables defining of simple printouts in accordance with GLP procedures, and features weighing and ALIBI memory with export option, real time clock, and extensive tare functions.
Communication Interfaces and Exchange of Information with External Devices
Possibility to furnish the terminal with additional interfaces, makes its adaptation to customer requirements easy. This facilitates especially communication with stack lights and external buttons controlling scale functions (zeroing, taring and printout), and integration with unsophisticated automation systems.
The terminal allows for communication with external devices such as receipt printer, additional display, computer or USB flash drive.
Battery as an Optional Power Source
Use of the optional battery enables the PUE H315 terminal to operate even when there is either no or unstable power supply.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Additional LCD display: WD-4/1 (option)
- Load cell excitation voltage: 5V DC
- Multiple range: 1 or 2 ranges
- Connection of load cells: 4 or 6 wires + shield
- Maximum load cell impedance: 1200 Ω
- Minimum load cell impedance: 50 Ω
- Minimum volatge per verification unit: 0,4 µV
- Maximum voltage per verification unit: 3,25 µV
- Maximum increase of signal: 39 mV
- Number of buttons: 5
- Maximum quantity of verification units: 6000 e
- Housing: Stainless steel
- Maximum quantity of divisions from converter: 838 860 ×10
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Protection class: IP 66 / IP 67 / IP 69
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Display: LCD (backlit)
- Packaging dimensions: 300×250×130 mm
- Keypad: microswitch
- Net weight: 1,9 kg
- Gross weight: 2,2 kg
- OIML Class: III
- Storage temperature: -10 ÷ +50 °C
- Device dimensions: 208×145×80 mm
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Communication interface: RS232, USB
