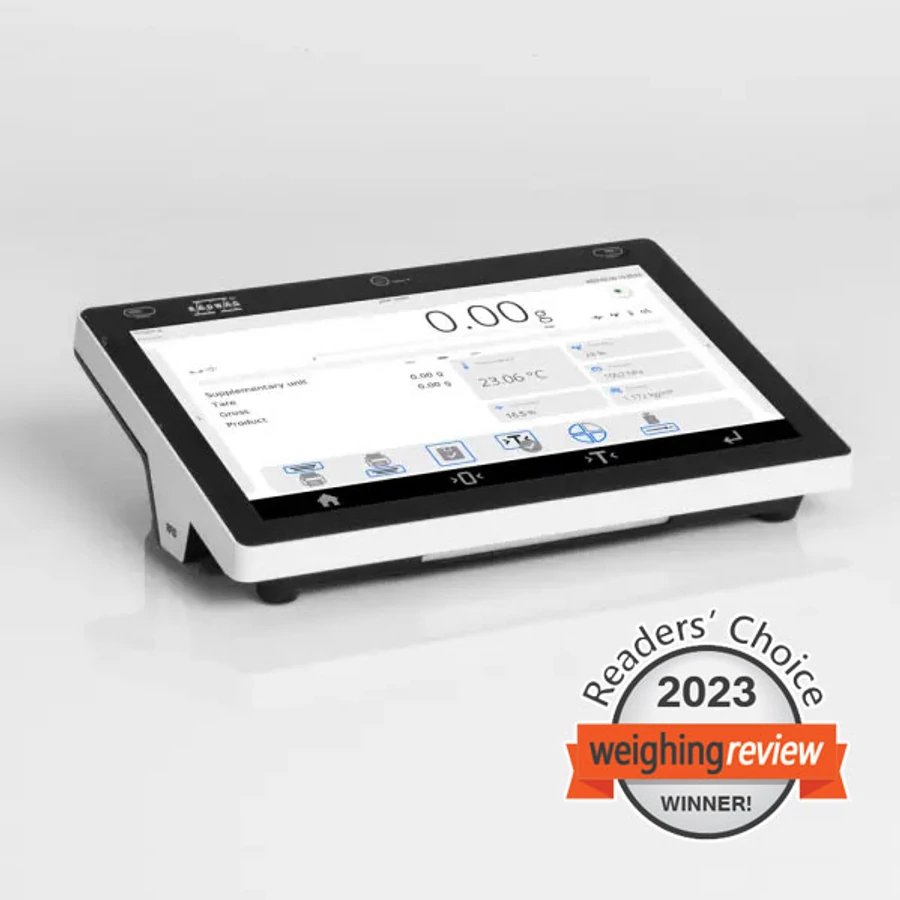

The PUE CY10 terminal is the head of the CY10 series precision balances and 1 load cell platform scales. It features a durable housing with an IP 43 ingress protection and numerous communication interfaces, including Ethernet, Hotspot and Wi-Fi (full list below).
Innovation to Match ELLIPSIS
The PUE CY10 terminal has all the strengths of the 5Y terminal used in the ELLIPSIS series balances, that is:
10-inch display
Uncompromised user verification
Hotspot - use the balance on any device connected to it. This can be a smartphone, tablet, or computer
RFID - allows access to defined capabilities by radio-frequency identification
Live Note voice and text notes
Voice commands for the device
Measurement history within the Handy Library
Widgets - prepared to display what you need most at any given moment
Ambient Light - the light colour will tell you about status, process results, procedures, or alerts.
Labeling Scale Functionality
The PUE CY10 terminal has been extended with features specific to labeling scales, as it:
Cooperates with the computer program Label Editor R02
Is compatible with ZEBRA label printers
Supports single labels, bulk labels and bulk from bulk labels
Allows import/export of label designs using a pendrive
Enables you to assign labels to goods or customers and print a global label.
Software for Special Tasks
The PUE CY10 terminal software has a set of innovative Features that make daily work with the scale easier:
Cooperation with up to 2 weighing platforms
Updating statistical data separately for each commodity or globally
Tare mode expanded to include Dispenser mode capability.
Modbus TCP/IP
is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.
A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
Functions
- Autotest
- Dosing
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Animal weighing
- Pipettes Calibration
- Air density correction
- Density determination
- Differential weighing
- Ambient conditions monitoring
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Wi-Fi
Parameters
- Maximum quantity of verification units: 10000
- Maximum load cell impedance: 1200Ω
- Minimum load cell impedance: 50Ω
- Minimum volatge per verification unit: 0,4µV
- Maximum voltage per verification unit: 3,25µV
- Connection of load cells: 4 or 6 wires + shield
- Load cell excitation voltage: 5V
- Maximum increase of signal: 19,5mV
- Display: 10″ graphic colour touchscreen
- Protection class: IP 43
- Housing: ABS + aluminium
- Max number of platforms: max.2
- Power supply: 12÷15V DC
- Power consumption: 1A
- Multiple range: YES
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Operating temperature: -10 ÷ +40 °C
- Processor: quad-core Broadcom 1,5 GHz
- Memory: 16 GB, 2GB RAM
- Operating system: Linux
