The Housing and the Display

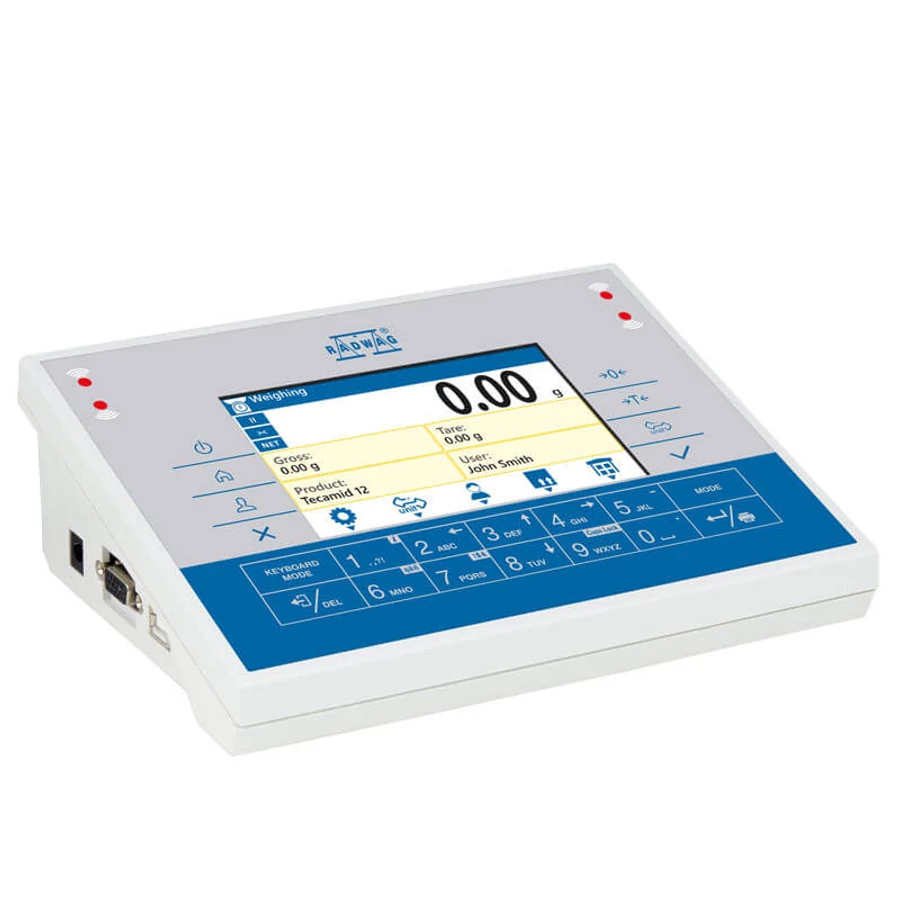

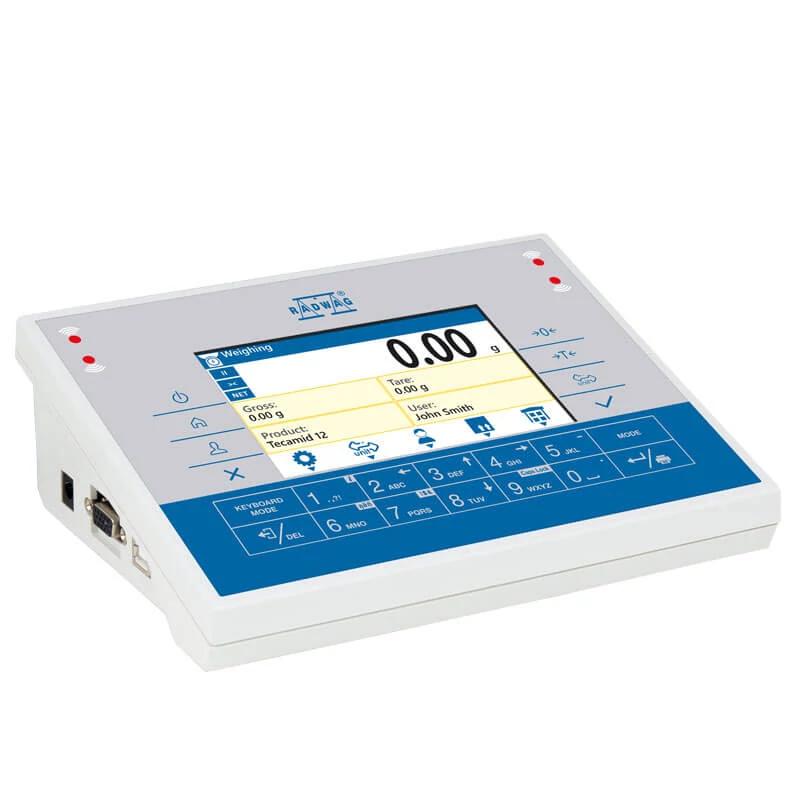

The housing is made of durable ABS plastic. The terminal has been equipped with 5’’ colour display ensuring perfect readability, and 22-key membrane keypad featuring programmable function keys. The terminal offers customized menu, with this all your personal needs can be met which makes operation even more intuitive and simple.
Battery as an Optional Power Source
Use of the optional battery enables the PUE C32 terminal to operate even when there is either no or unstable power supply.
Communication Interfaces
Standard terminal has been equipped with RS 232, USB-A, USB-B, 4×IN, 4×OUT and Ethernet interfaces which facilitate both cooperation with peripherals such as printer or computer and data exchange using USB drives.
The terminal connects with wireless networks due to a Wireless Connection module, which comes standard.
Data Management
PUE C32 information system is based on 7 databases, each of different maximum record quantity::
Products - 15 000
Operators - 500
Formulations - 500
Packaging - 500
Customers - 500
Labels - 500
Universal variables – 100
Databases can be imported and exported via USB flash drives.
ALIBI Memory
ALIBI memory provides data safety and allows saving up to 500 thousand weighing records.This guaranties continuous storing of data over a long period of time.
Functions
- Labelling
- Percent Weighing
- Totalizing
- Parts counting
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Replaceable unit
- ALIBI Memory
Parameters
- Housing: ABS plastic
- Operating temperature: -10 ÷ +40 °C
- Protection class: IP 43
- Display: 5” graphic colour
- Maximum quantity of verification units: 6000 e
- Maximum load cell impedance: 1200 Ω
- Minimum load cell impedance: 50 Ω
- Maximum voltage per verification unit: 3,25 µV
- Minimum volatge per verification unit: 0,4 µV
- Connection of load cells: 4 or 6 wires + shield
- Load cell excitation voltage: 5V DC
- Maximum increase of signal: 39 mV
- Max number of platforms: 1
- Communication interface: 2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Multiple range: YES
- Operation time on batteries: operation time up to 5 h
- Packaging dimensions: 300×250×130 mm
- Net weight: 0,7 kg
- Gross weight: 0,94 kg
- Device dimensions: 206×140×71 mm
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: internal rechargeable battery
