Terminal for Industry

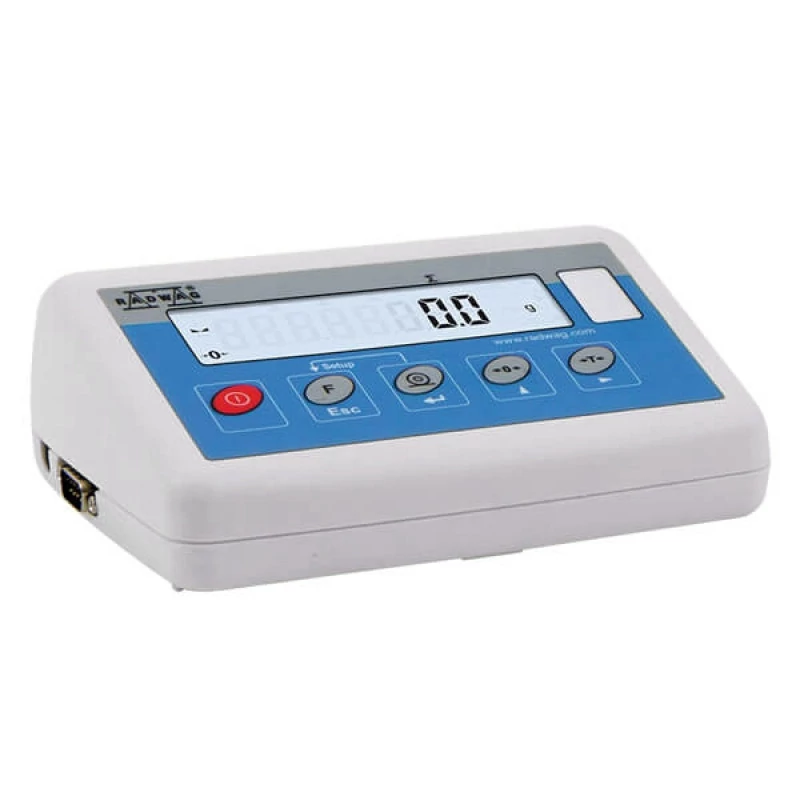

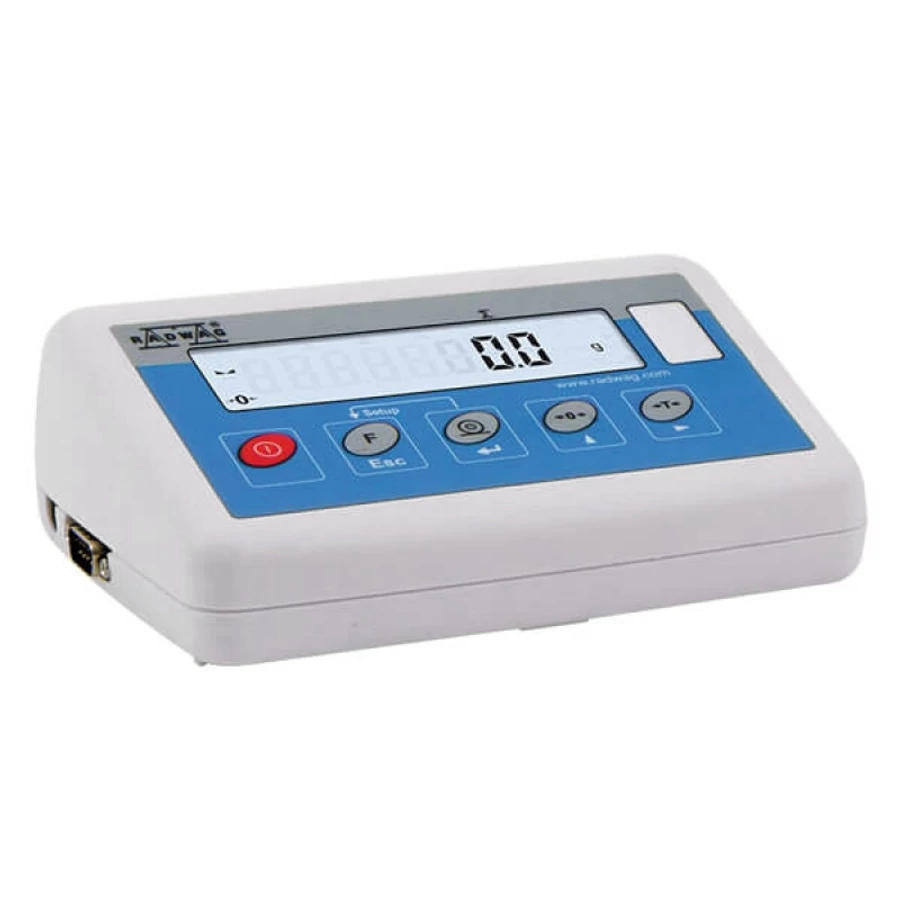

The PUE C315 terminal is intended for fast and precise presentation of mass measurement result. Taring available for the whole weighing range allows to swiftly and precisely determine net mass of weighed loads. An ABS plastic housing ensures durability and lightness of the construction.
Uncomplicated Operation and Clear Presentation of Indications
A clear 6-digit LCD display with backlight and pictograms provides clearly visible measurement result. Easy operation enables fast and reliable measurements to be carried out even by an inexperienced operator.
Mobility due to an Internal Battery
In addition to power supply from the mains, PUE C315 terminal is equipped with internal battery that enables several hours long mobile operation.
Versatility of Use
Various possibilities of fastening of the PUE C315 terminal to the weighing platform enable selecting appropriate solution for different places of operation. The terminal can be mounted next to the platform, on a post or using cable.
ALIBI Memory
Internal ALIBI memory guarantees safety and automatic record of measurements copies, it also offers possibility to preview, copy and archive data.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Additional LCD display: WD-4/8 (option)
- Load cell excitation voltage: 5V DC
- Multiple range: 1 or 2 ranges
- Connection of load cells: 4 or 6 wires + shield
- Maximum load cell impedance: 1200 Ω
- Minimum load cell impedance: 50 Ω
- Minimum volatge per verification unit: 0,4 µV
- Maximum voltage per verification unit: 3,25 µV
- Maximum increase of signal: 39 mV
- Number of buttons: 5
- Maximum quantity of verification units: 6000 e
- Power supply: 100 – 240 V AC 50/60 Hz
- Maximum quantity of divisions from converter: 838 860 ×10
- Optional power supply: 12V DC and battery
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Protection class: IP 43
- Operation time on batteries: max 7h
- Display: LCD (backlit)
- Packaging dimensions: 220×190×90 mm
- Keypad: microswitch
- Net weight: 0,6 kg
- Gross weight: 0,78 kg
- OIML Class: III
- Storage temperature: -10 ÷ +50 °C
- Device dimensions: 181×136×60 mm
- Housing: ABS plastic
- Optional interfaces: RS232
- Power consumption max.: 5 W
- Communication interface: RS232
