If you buy a PUE 7.1 Weighing Terminal by July 31, 2024,
you will receive each of these products along with a FREE lifetime license for the Workflow Module.

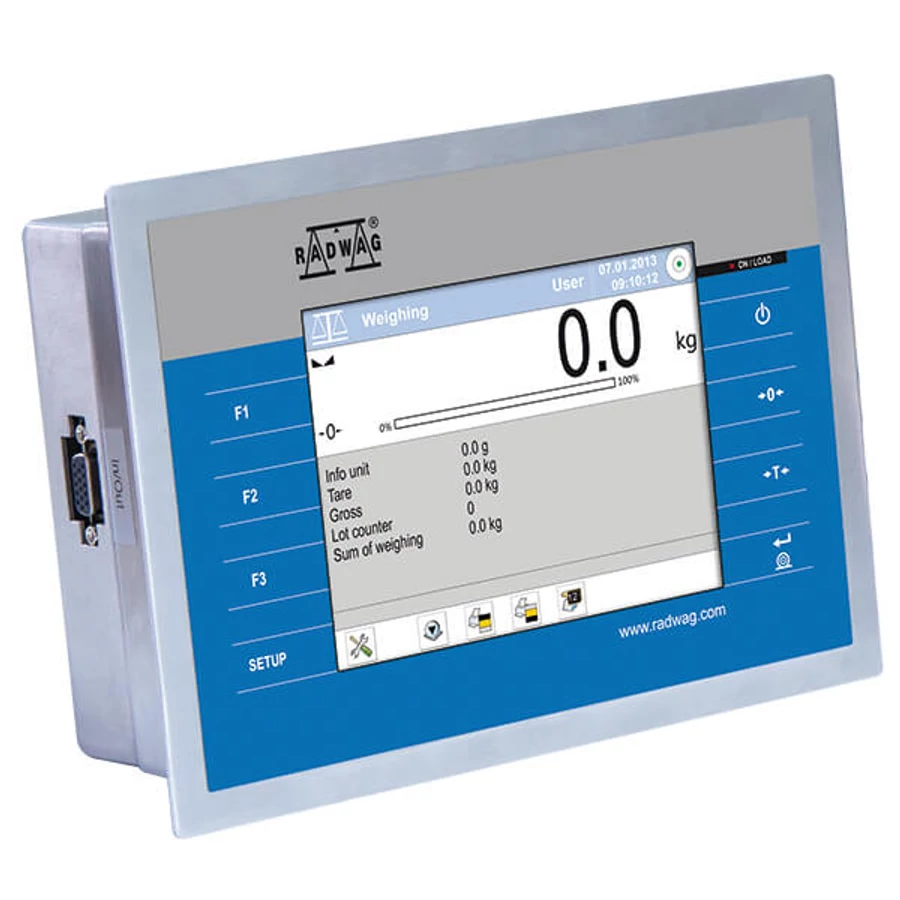

The PUE 7.1 terminal is a constructional component of industrial load cell scales.
Ergonomics and Comfort of Operation
It is equipped with 5.7" TFT display featuring a touch panel and a membrane keypad.
The device offers two proximity sensors which can be programmed using the menu. It can connect with maximum 2 weighing platforms, a barcode scanner, a printer, a labeller, RFID reader and PC equipment (mouse, keyboard, USB flash drive). Standard PUE 7.1P terminal communicates with 1 weighing platform, and is provided with an extended communication interface offering 2×USB, 2×RS 232, Ethernet, 4inputs/4outputs (digital).
It is possible to expand the PUE 7.1P terminal with 1 extra platform, this is done by installation of an additional platform module, DP-6.
Caution: in case of a terminal supporting 2 weighing platforms, only cable version is available (/R version does not exist).
Parameters
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: front IP 66/67, construction IP 32
- Display: 5,7” Resistive Color Touchscreen
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
- Keypad: touch screen
- Load cell excitation voltage: 5V DC
- Housing: Stainless steel
- Maximum load cell impedance: 1200 Ω
- Minimum load cell impedance: 50 Ω
- Processor: quad-core 64-bit Cortex-A53 1,2 GHz
- Operating system: Linux
- Max number of platforms: 2
- Memory: RAM 1GB LPDDR2
- Maximum increase of signal: 19,5 mV
- Number of buttons: 8
- Data memory: 16 GB (micro SD)
- Packaging dimensions: 300×250×130 mm
- Net weight: 0,8 kg
- Gross weight: 2,75 kg
- Device dimensions: 215×156×120 mm
- Additional DP6 A/C converter module: 1 (option)
