If you buy a High Resolution Scale PUE 7.1 by July 31, 2024,
you will receive each of these products along with a FREE lifetime license for the Workflow Module.

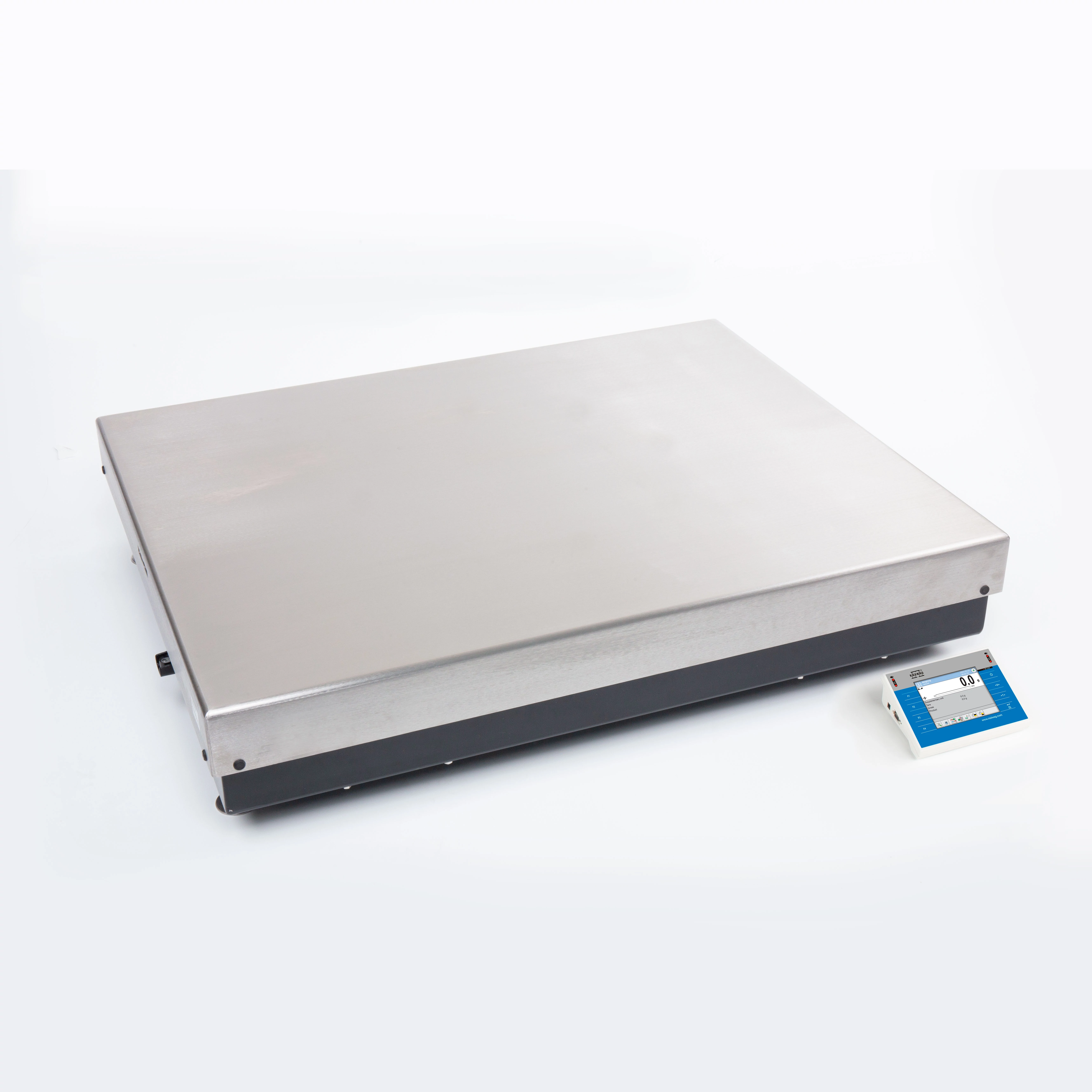

High Resolution Scale
The HRP high resolution scales feature a cutting-edge measuring system based on RADWAG MonoBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.
9 advantages, 1 monobloc
The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved technology.
Repeatability not repeatable by others
Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort. The HRP high resolution scales feature a cutting-edge measuring system based on RADWAG MonoBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2 000 kg, with a repeatability of 3 g guaranteed.
For such industries as pharmaceutical, chemical, food and…
HRP scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries.
Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
5.7-inch color resistive display
a touch-sensitive keyboard
ABS plastic housing
IP 43 protection rating
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®,
optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
10.1-inch color graphic display
touchscreen keyboard
stainless steel housing
IP 68/69 degree of protection
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.
The power of steel
The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.
Use the potential
Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, PUE 7.1 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of PUE 7.1’s working mods.
Parameters
- Maximum capacity [Max]: 300 kg
- Minimum load: 50 g
- Readability [d]: 1 g
- Tare range: -300 kg
- Preload range: 60 kg
- Repeatability: 3 g
- Linearity: ±6 g
- Weighing pan dimensions: 1000×800 mm
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Protection class: IP 66/67 construction, IP 43 terminal
- Stabilization time: 3 s
- Display: 5,7” Resistive Color Touchscreen
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Power supply: 100 – 240 V AC 50/60 Hz
- Device dimensions: 360×313×170 mm
- Packaging dimensions: 1000×1200×436 mm
- Adjustment: internal (automatic)
- OIML Class: II
- Verification unit [e]: 10 g
- Maximum quantity of verification units: 30000 e
- Net weight: 126 kg
- Gross weight: 160 kg
- Construction: mild steel St3S
- Weighing pan material: Stainless steel AISI304
