The terminals are intended to designing scales with maximum resolution of 6000 e. PUE 5 series, similarly to the basic model, are enclosed in a stainless steel housing which allows for reaching the highest IP rating, i.e. IP 67.
The terminals come standard with interfaces: 2 × RS232, 1 × RS485, 1 x Ethernet, 4 x USB 2.0.
PUE 5 series can be extended by additional 3 weighing modules for simultaneous operation of maximum 4 weighing platforms.
Intended Use:
The terminal PUE 5 series is a multifunctional weighing device. It combines the best features of a PC computer and a scale. The PUE 5 operates on basis of OS Windows, creating the best option for configuring the device to individual customer requirements through installing corresponding application.
If applied with dosing or formula making systems, the PUE 5 allows for operation with multiple weighing platforms, and simultaneous dosing with full process control. A dosing or formula making system that is configured on basis of the terminal PUE 5 series does not require an additional PC computer. Database editing is possible from the level of PUE 5 touch screen display or an optional PC keyboard.
Area of Use:
Main applications for terminal PUE 5 series:
Designing industrial load cell scales;
Multiple weighing applications supervised by a computer system through Ethernet module;
Possibility of connecting large quantity of additional weighing platforms to industrial terminals.
Terminal type:

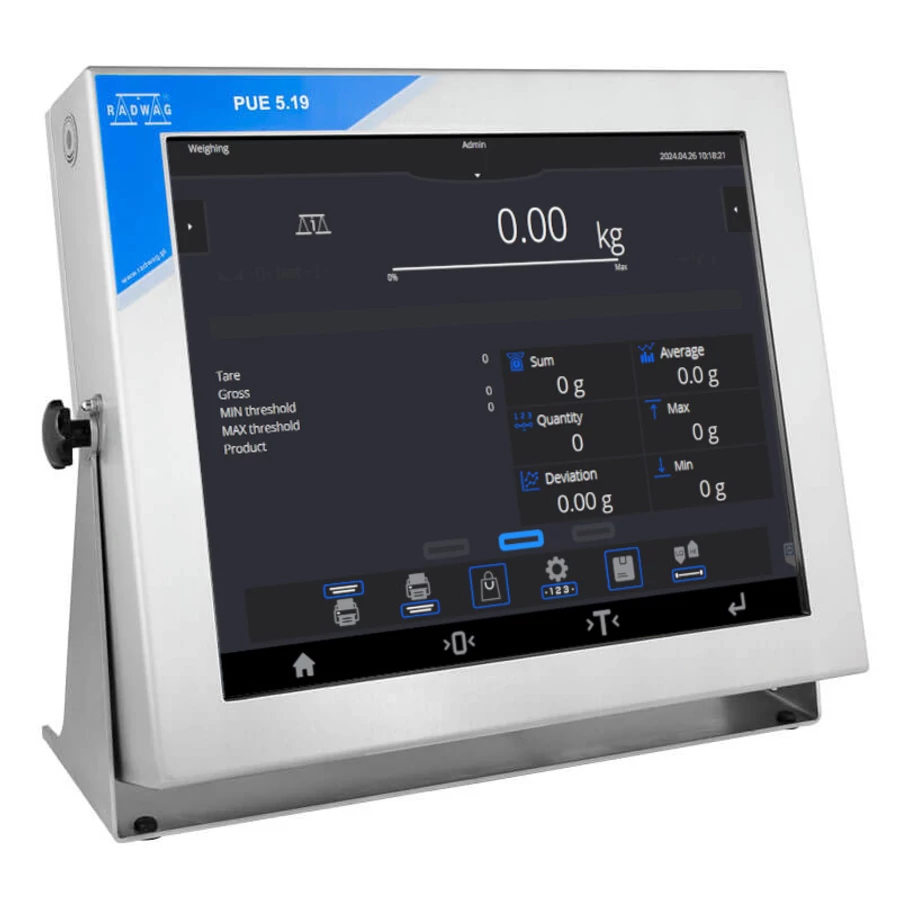

PUE 5.19IR – infrared touch screen technology. IP67 protection class. Very high brightness and readability level. High resistance to moisture and dust. Very good mechanical resistance, operation in gloves enabled (material: latex, fabric or steel chain).
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Parts counting
- Formulation
- Statistics
- Checkweighing
Parameters
- Maximum quantity of verification units: 6000 e
- Maximum quantity of divisions from converter: 8388608
- Maximum increase of signal: 19,5 mV
- Maximum voltage per verification unit: 3,25 µV
- Memory: 16 GB RAM
- Processor: Intel® Celeron® J6412
- Operating system: Microsoft Windows 11
- Power consumption max.: 75 W
- Chipset: Intel® UHD Graphics for 10th Gen Intel® Processors
- Data memory: SSD 128 GB
- Minimum volatge per verification unit: 0,4 µV
- Minimum load cell impedance: 80 Ω
- Maximum load cell impedance: 1200 Ω
- Connection of load cells: 4 or 6 przewodów
- Load cell excitation voltage: 5V
- Housing: Stainless steel
- OIML Class: III
- Packaging dimensions: 590×470×240 mm
- Display: 19” graphic colour touchscreen
- Protection class: IP 67
- Operating temperature: 0 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Touch panel: infrared
- Net weight: 14 kg
- Gross weight: 15 kg
- Device dimensions: 524×420×200 mm
- Communication interface: 4×USB 2.0 (2×USB-A, 2×M12 4P), Ethernet - 2×10/100/1000 Mbit (2×RJ45 hermetic), 2×RS232, RS485 (2×M12 8P)
- Optional interfaces: external buttons PRINT, TARE, START - wymagana wersja terminala z zainstalowanymi 4IN/4OUT (ports M12 8P), additional weighing platform module - max. 3 pcs, metrological parameters as in the main weighing platform
- Power supply: 100 – 240 V AC 50/60 Hz
- Storage temperature: -20 ÷ +60 °C
