The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).

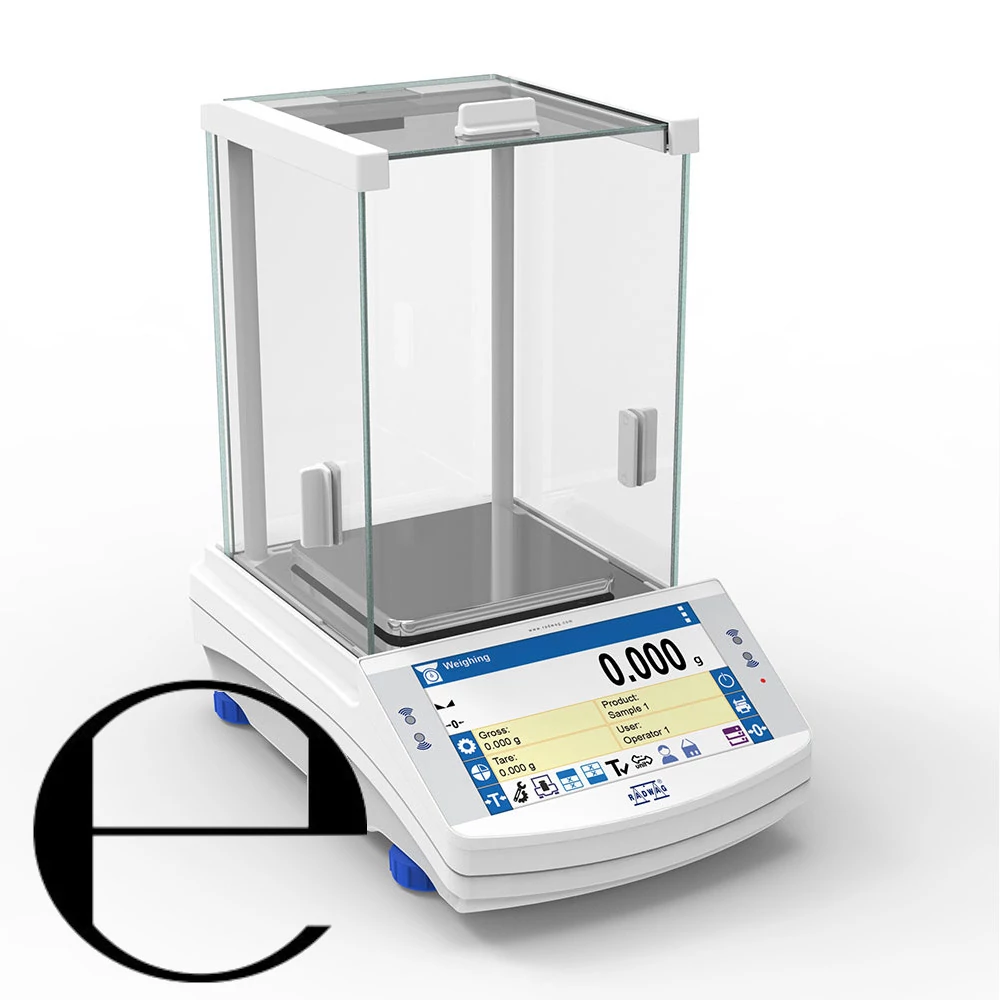

PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu and intuitive layout of information on the display. Much of this is due to the 7-inch touchscreen display, but the latest generation of capacitive display, which provides maximum operating comfort, is not the only advantage of these balances.
Precision and comfort
PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10,100 g; both of these parameters vary depending on the model. An advantage of this series balances is internal (automatic) adjustment, which relieves the user from having to carry out this complicated and precision-demanding procedure himself.
The PS X7 balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The balances housing is made of plastic, and the pan is made of stainless steel.
New Possibilities
PS X7 Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7 balance display gives access to information and operating results directly from the main display panel.
PS X7 Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.
Databases
In PS X7 Precision Balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
Users (up to 10 users),
Products (up to 5 000 products),
Weighments (up to 50 000 weighments),
Packaging (up to 100 packaging types),
Formulas (up to 100 formulas),
Clients (up to 1000 clients),
ALIBI memory (up to 512 000 weighments).
In addition, the reports on formulas can be made (up to 500 reports).
Weighing Data Management
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its database.
ALIBI Memory
PS X7 Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving.
The ALIBI memory allows to record up to 512 000 weighment records.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Autotest
- Dosing
- Plus/Minus Control
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- Under-pan weighing
- GLP Procedures
- Animal weighing
- Density determination
- Ambient conditions monitoring
- Replaceable unit
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Mass for titrator
- Wi-Fi
Parameters
- Adjustment: internal (automatic)
- Operating temperature: +10 ÷ +40 °C
- Stabilization time: 2 s
- Weighing pan dimensions: 128×128 mm
- Linearity: ±0,003 g
- Tare range: -750 g
- Readability [d]: 0,01 g
- Minimum load: 0,5 g
- Maximum capacity [Max]: 750 g
- Display: 7″ graphic colour touchscreen
- Communication interface: 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi
- Packaging dimensions: 545×455×575 mm
- Touch-free operation: 2 IR Sensors
- Database capacity: 7
- Minimum weight (USP): 1 g
- Minimum weight (U=1%,k=2): 0,1 g
- Net weight: 3,9 kg
- Gross weight: 5 kg
- Repeatability (5% Max): 0,0005 g
- Repeatability (Max): 0,0015 g
- Verification unit [e]: 0,01 g
- OIML Class: II
- Protection class: IP 43
- Leveling system: manual
- Delivery components: Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,8A max - Power consumption: 4 W
- Relative humidity: 40% — 80%
- Sensitivity temperature drift: 2×10⁻⁶/°C×Rt
