The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).

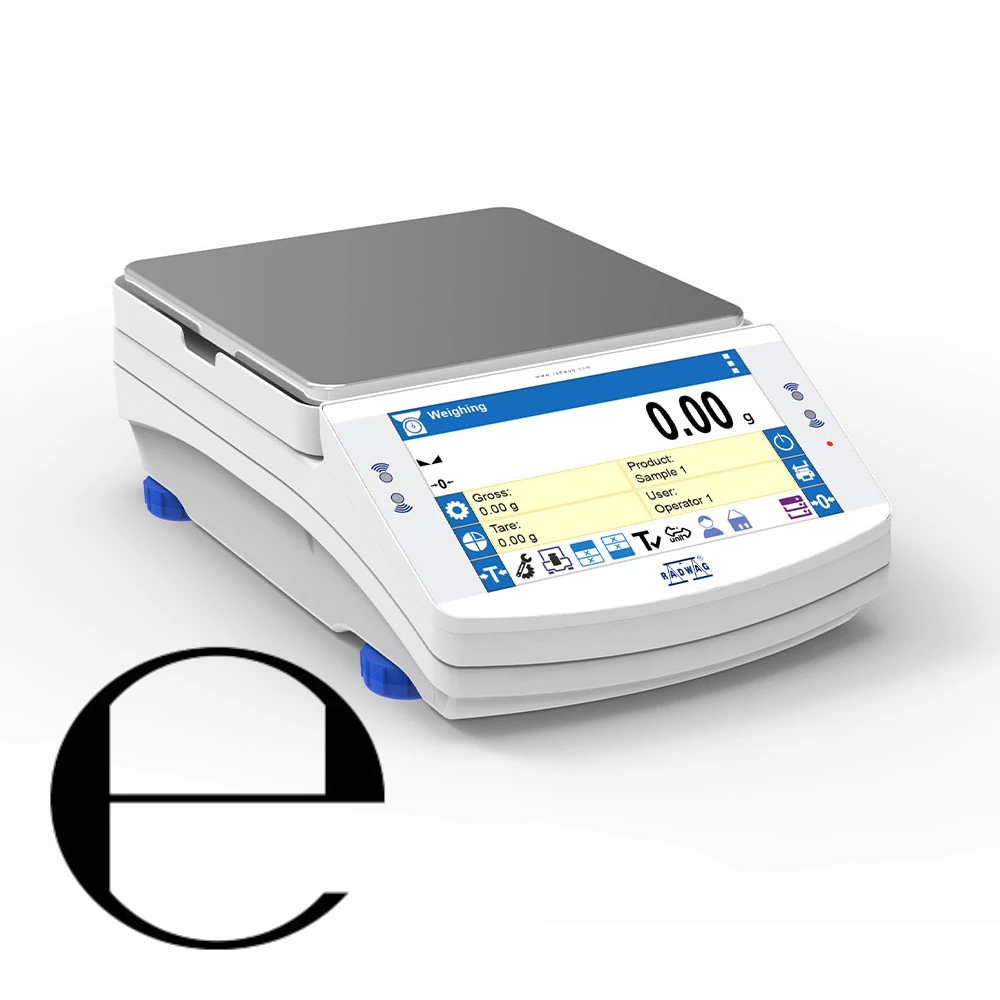

PS X7.M is a series of advanced-class precision balances of high resolution based on RADWAG MonoBLOCK technology. The innovative construction of PS X7.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination.
Weighing module
RADWAG MonoBLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures stability of the weighing system and great resistance to shocks.
Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.
Features:
d=0.01 g readability at 10 kg max capacity
great resistance to ambient conditions
stability and repeatability over time
RADWAG MonoBLOCK technology
internal adjustment within the whole measuring range
complex databases and ALIBI memory
ergonomic 7” colour touchscreen
touch-free operation
Databases
In PS X7.M Precision Balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
Users (up to 100 users)
Products (up to 5,000 products)
Weighments (up to 50,000 weighments)
Packaging (up to 100 packaging types)
Formulas (up to 100 formulas)
Clients (up to 1,000 clients)
ALIBI memory (up to 512,000 weighments).
In addition, the reports on formulas can be made (up to 500 reports).
ALIBI memory
PS X7.M Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.
New Possibilities
PS X7.M Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7.M balance display gives access to information and operating results directly from the main display panel. PS X7.M Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.
USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.
THBR 2.0 System
The balances work with THBR 2.0 System for ambient conditions monitoring.
Functions
- Autotest
- Dosing
- Plus/Minus Control
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- Under-pan weighing
- GLP Procedures
- Animal weighing
- Density determination
- Ambient conditions monitoring
- Replaceable unit
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Mass for titrator
- Wi-Fi
Parameters
- Adjustment: internal (automatic)
- Operating temperature: +10 ÷ +40 °C
- Stabilization time: 1,5 s
- Weighing pan dimensions: 195×195 mm
- Linearity: ±0,02 g
- Tare range: -6100 g
- Readability [d]: 0,1 g
- Minimum load: 5 g
- Maximum capacity [Max]: 6100 g
- Display: 7″ graphic colour touchscreen
- Communication interface: 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi
- Packaging dimensions: 475×380×345 mm
- Touch-free operation: 2 IR Sensors
- Database capacity: 7
- Minimum weight (USP): 10 g
- Minimum weight (U=1%,k=2): 1 g
- Net weight: 5,7 kg
- Gross weight: 6,5 kg
- Sensitivity temperature drift: 2×10⁻⁶/°C×Rt
- Protection class: IP 43
- Relative humidity: 40% — 80%
- Device dimensions: 333x206x107 mm
- Verification unit [e]: 0,1 g
- OIML Class: II
- Storage temperature: -20 ÷ +50 °C
- Repeatability (5% Max): 0,005 g
- Repeatability (Max): 0,008 g
- Leveling system: manual
- Delivery components: Balance, weighing pan, weighing pan shield, power supply
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,8A max - Power consumption: 4 W
