Precision Balance for statistic control
The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).

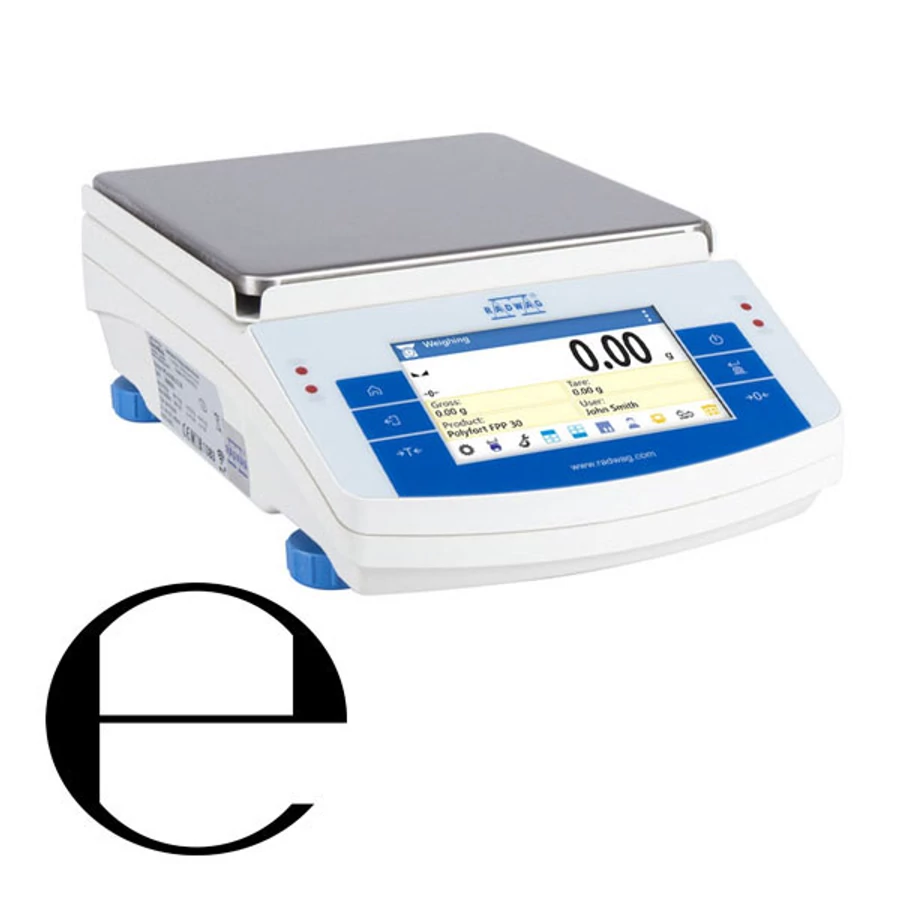

PS X2.M is a series of advanced-class precision balances of high resolution based on RADWAG MonoBLOCK technology. The innovative construction of PS X2.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination.
RADWAG MonoBLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures stability of the weighing system and great resistance to shocks. Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.
Features:
d=0.01 g readability at 10 kg max capacity
great resistance to ambient conditions
stability and repeatability over time
RADWAG MonoBLOCK technology
internal adjustment within the whole measuring range
complex databases and ALIBI memory
ergonomic 5” colour touchscreen
touch-free operation
Databases
The instrument allows saving completed measurement data as complex reports and graphs.
There are 7 databases:
Operators (max 100 entries),
Products (max 5 000 entries),
Weighings (max 50 000 entries),
Packaging (max 100 entries)
Formulations (max 100 entries),
Customers (max 1000 entries),
The balance enables creating formulation reports (max 500 entries).
ALIBI memory provides data protection and facilitates automatic measurement recording (max 500 000 weighing records). The memory facilitates data previewing, copying and archiving.
Communication
PS X2.M series is equipped with the following interfaces: 2 x RS 232, USB type A, USB type B, Ethernet and Wireless Connection. USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.
Functions
- Autotest
- Dosing
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Animal weighing
- Density determination
- Ambient conditions monitoring
- Replaceable unit
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Mass for titrator
- Wi-Fi
Parameters
- Adjustment: internal (automatic)
- Operating temperature: +10 ÷ +40 °C
- Stabilization time: 1,5 s
- Weighing pan dimensions: 195×195 mm
- Linearity: ±0,02 g
- Tare range: -4500 g
- Readability [d]: 0,1 g
- Minimum load: 5 g
- Maximum capacity [Max]: 4500 g
- Display: 5” graphic color touchscreen
- Communication interface: 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi
- Packaging dimensions: 470×380×336 mm
- Touch-free operation: 2 IR Sensors
- Database capacity: 7
- Minimum weight (USP): 10 g
- Minimum weight (U=1%,k=2): 1 g
- Net weight: 4,5 kg
- Gross weight: 6,1 kg
- Relative humidity: 40% ÷ 80%
- Device dimensions: 333x206x107 mm
- Verification unit [e]: 0,1 g
- OIML Class: II
- Storage temperature: -20 ÷ +50 °C
- Sensitivity temperature drift: 2×10⁻⁶/°C×Rt
- Protection class: IP 43
- Repeatability (5% Max): 0,005 g
- Repeatability (Max): 0,008 g
- Leveling system: manual
- Delivery components: Balance, weighing pan, weighing pan shield, power supply
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,8A max - Power consumption: 4 W
