Leírás

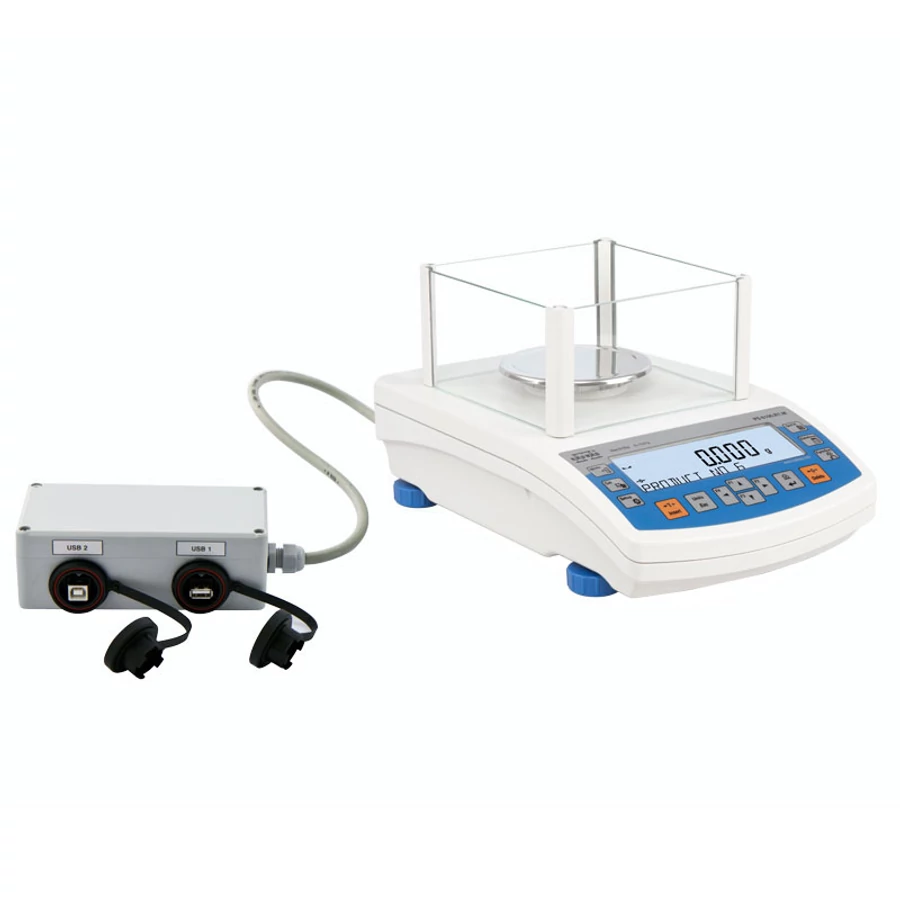

PS R2.H series balances redefine the level of standard precision balances.
Not only do they share all the features of R series balances, but can also work in adverse operating conditions (condensed dust, drops of water falling down at different angles typical for IP 54).
LCD display
These balances are equipped with innovative LCD display allowing for clear and legible presentation of a measurement result.
Moreover, it offers new text line which supplies the user with some additional messages and information, e.g. product name or tare value.
Interfaces
Additional asset of PS R2.H balances are their interfaces build-in a hermetic closed housing which is separated from the balance.
The interfaces include 2×RS 232, USB type A, USB type B, and Wireless Connection optionally.
Balance housing is made of plastic, whereas its pan of stainless steel.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Autotest
- Dosing
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Newton unit measurement
- Statistics
- Checkweighing
- Under-pan weighing
- GLP Procedures
- Animal weighing
- Density determination
Parameters
- Maximum capacity [Max]: 1000 g
- Minimum load: 20 mg
- Readability [d]: 0,001 g
- Tare range: -1000 g
- Linearity: ±0,003 g
- Weighing pan dimensions: ø100 mm
- Stabilization time: 2 s
- Operating temperature: +10 ÷ +40 °C
- Adjustment: internal (automatic)
- Display: LCD (backlit)
- Communication interface: 2×RS232¹, USB-A, USB-B, Wi-Fi (option)
- Packaging dimensions: 475×380×345 mm
- Repeatability (5% Max): 0,0005 g
- Repeatability (Max): 0,0015 g
- Net weight: 4,5 kg
- Gross weight: 6 kg
- Protection class: IP 54
- Leveling system: manual
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,4A max - Power consumption: 4 W
- Relative humidity: 40% ÷ 80%
- Sensitivity temperature drift: 2×10⁻⁶/°C×Rt
