Effective and Excellent Measurement

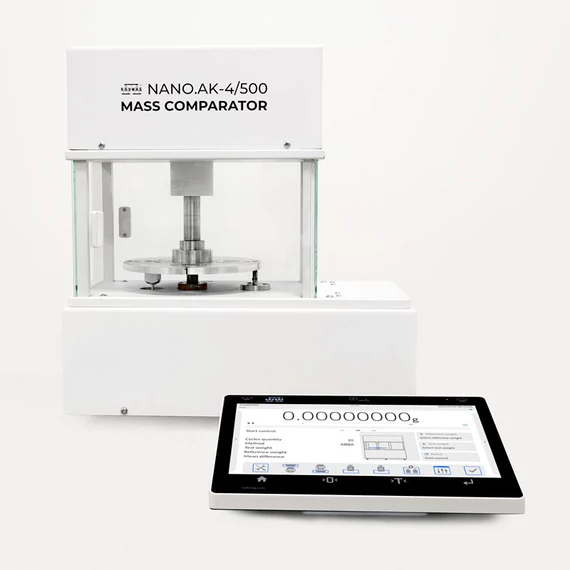

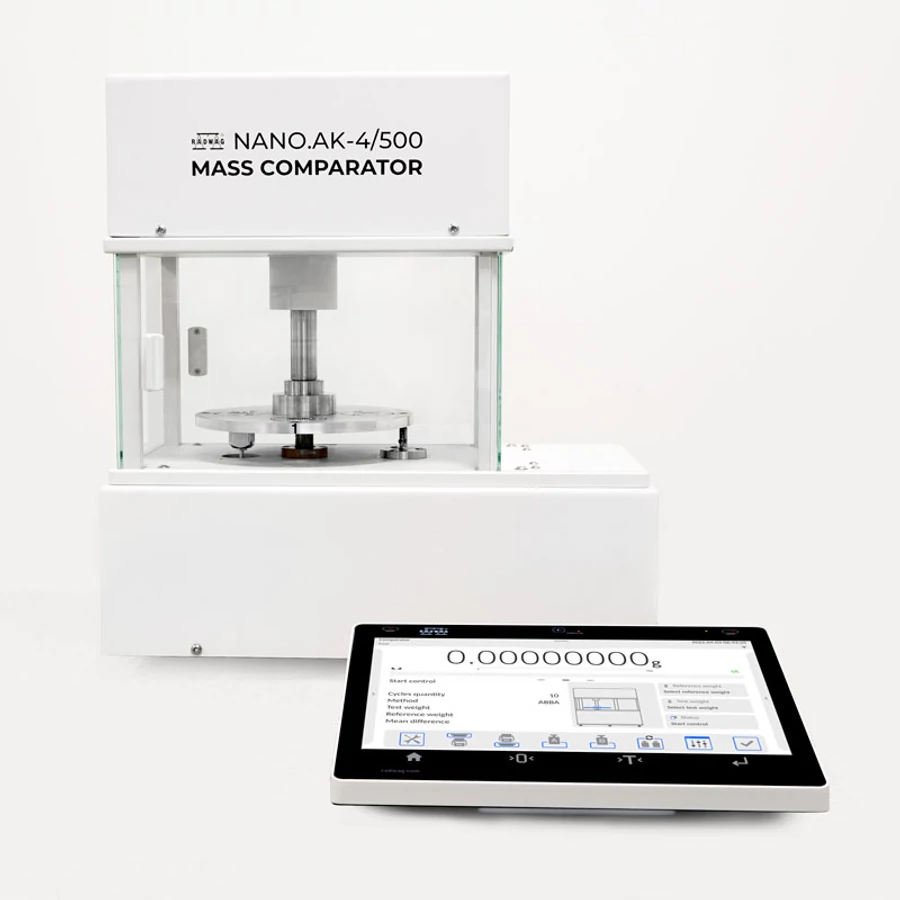

The NANO.AK-4/500.5Y automatic nano mass comparator enables determining mass deviations of weights with the minimum possible operator participation. The comparator allows to compare weights of mass ranging between 0.05 mg to 500 mg.
Excellent Measurement Repeatability
NANO.AK-4/500.5Y automatic nano mass comparator, due to the elimination of the human factor, temperature changes and air drafts, guarantees excellent measurement repeatability when compared to manual mass comparator.
Design and Functionality
An element that controls mass comparator operation is a digital management module, which is placed inside comparator’s chamber along with an automatic mass standard feeder. Mass comparator is operated by means of indicator connected to the comparator controller. Control elements are not mechanically integrated with the construction thanks to what the influence of ambient conditions on mass comparator chamber is significantly reduced.
Dedicated Software
Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through proced
Parameters
- Maximum capacity [Max]: 510 mg
- E1 Calibration Range: 0,05 ÷ 500 mg
- E2 Calibration Range: 0,05 ÷ 500 mg
- F1 Calibration Range: 0,05 ÷ 500 mg
- F2 Calibration Range: 0,05 ÷ 500 mg
- Readability [d]: 10 ng
- Stabilization time: 30 s
- Electric compensation range: 0 ÷ 510 mg
- Adjustment: external
- Power supply: 100 – 240 V AC 50/60 Hz
- Weighing pan dimensions: ø20 mm
- Supplementary weights internal: -
- Supplementary weights external: -
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ±5%/12h (3%/4h)
- Weighing device dimensions: 385×245×390 mm
- Controling device dimensions: 460×250×195 mm
- Packaging dimensions: 860×750×570 mm
- Magazine positions: 4
- Eccentricity (tested load): 0 mg
- Net weight: 21 kg
- Gross weight: 31 kg
- Standard repeatability [5% Max]: 0,04 µg
- Standard repeatability [Max]: 0,06 µg
- Permissible repeatability: 0,1 µg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
