MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, Italy, Japan and the USA.
Vast Max Capacity Range

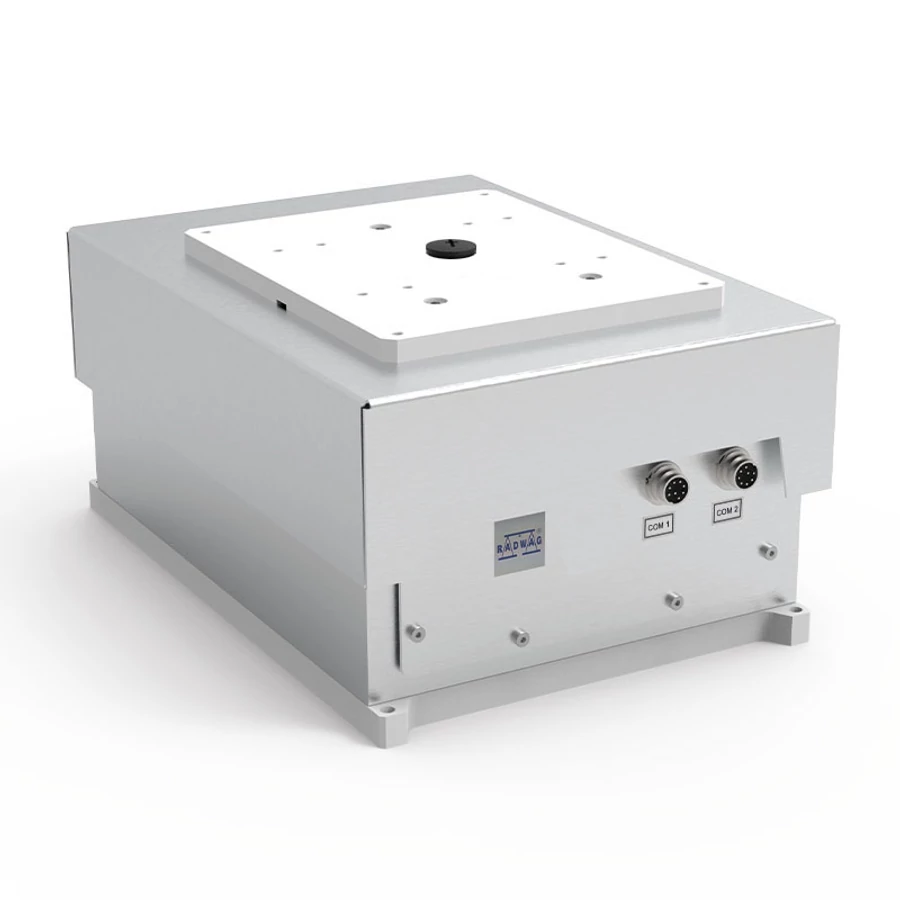

Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement.
Protection Against Challenging Conditions
Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation.
Fast and Precise Measurement
High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s.
Cooperation with terminals
Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications.
Mechanical design versions:
MWMH xxx - 1 - model with Binder connectors (IP65),
MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan,
MWMH xxx - 3 - model with cable glands, (IP 69K),
MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan
MWMH xxx - TWD - model with cable glands (IP 69K).
Parameters
- Operating temperature: +10 ÷ +40 °C
- Adjustment: external
- Weighing pan dimensions: 212×174 mm
- Stabilization time: <0,1 s
- Preload range: 4 - 7 kg
- Tare range: -5 kg
- Readability [d]: 0,1 g
- Maximum capacity [Max]: 5 kg
- Relative humidity: 15% ÷ 80%
- Protection class: IP 65
- Power supply: 12 ÷ 24 V DC
- Verification unit [e]: 0,5 g
- Minimum load: 10 g
- OIML Class: III
- Repeatability: 0,1 g
- Sensitivity temperature drift: 2×10⁻⁶/°C×Rt
- Material: Stainless steel
- Power consumption max.: 5 W
- Communication interface: RS232, Ethernet, 2×IN / 2×OUT
- Net weight: 12,4 kg
- Gross weight: 15 kg
- Packaging dimensions: 580×413×360 mm
- Device dimensions: 344×224×166 mm
- Storage temperature: -20 ÷ +50 °C
