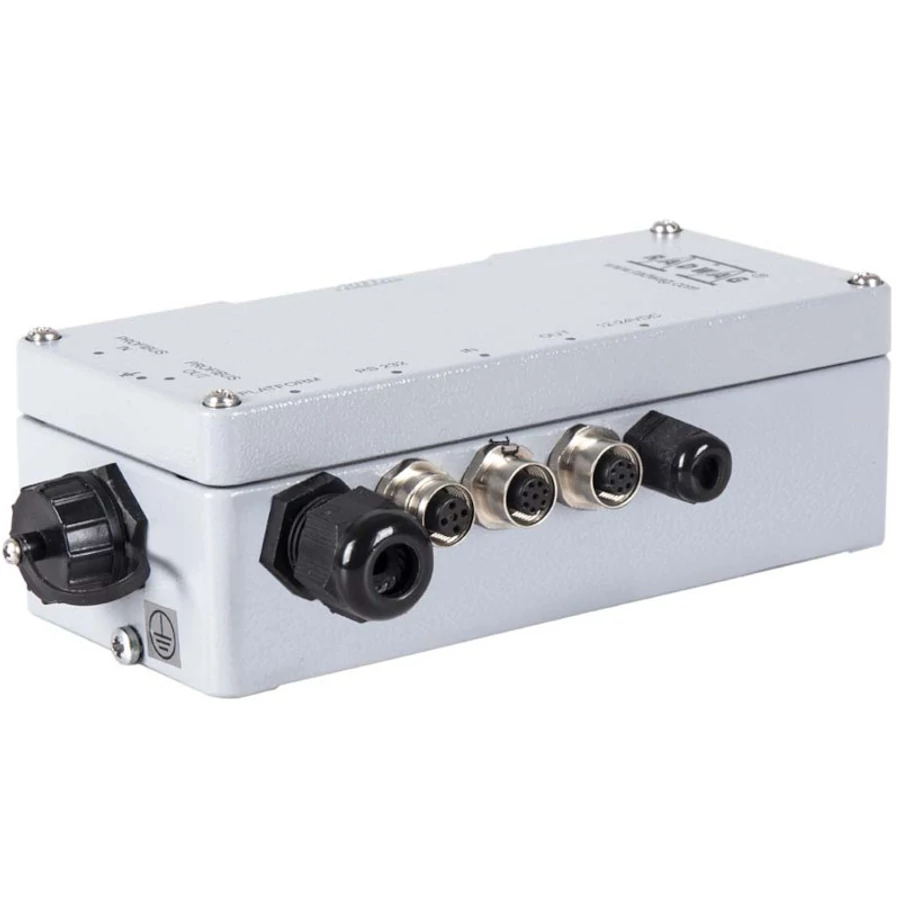

The MW-01-A mass converter is designed to be a component of an industrial load cell scale. Depending on the needs, communication with the mass converter can be carried out via the following communication interfaces: RS232, RS485, Ethernet, Ethernet IP, Profibus or Profinet. The MW-01-A mass converter is compatible with indicators and PC.
Operation of the MW-01-A mass converter via PC is carried out using „MW Manager” software.
Parameters
- Operating temperature: -10 ÷ +40 °C
- Protection class: IP 66
- Power supply: 100 – 240 V AC 50/60 Hz
- Communication interface: RS232, 3×IN / 3×OUT
- OIML Class: II or III
- Multiple range: YES
- Load cell excitation voltage: 5V DC
- Housing: aluminum
- Connection of load cells: 4 or 6 wires + shield
- Maximum load cell impedance: 1200 Ω
- Minimum load cell impedance: 50 Ω
- Minimum volatge per verification unit: 0,5 µV
- Max number of platforms: 1
- Maximum increase of signal: 19,5 mV
- Maximum quantity of verification units: 10000 e
- Packaging dimensions: 300×250×130 mm
- Net weight: 1 kg
- Gross weight: 1,4 kg
- Maximum voltage per verification unit: 1,95 µV
