The series of MUYA electromagnetic high resolution modules is designed to be incorporated into customer’s weighing systems.

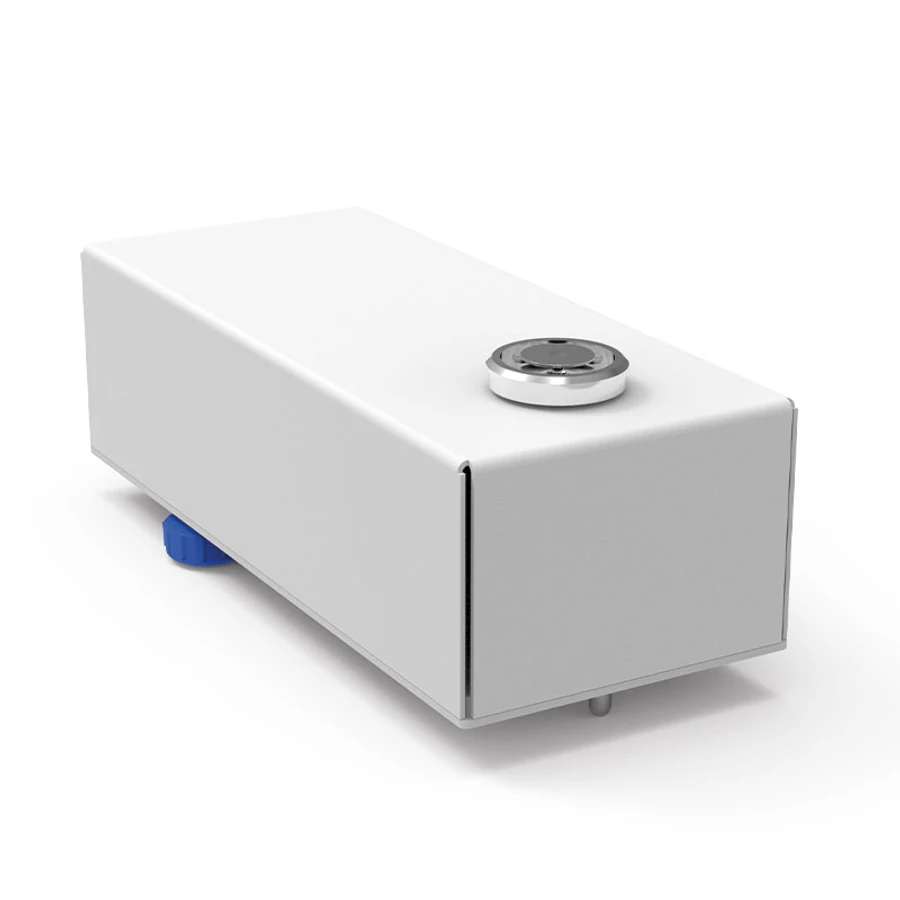

A new generation’s MUYA 2 ultra-microbalance module is designed to fulfill our customers’ high expectations regarding mass measurements carried out with the greatest precision. The system of internal adjustment improves the quality of work even more by affecting measurements results. Operation of MUYA electromagnetic high resolution module is based on an electromagnetic digital converter. Compact design and inbuilt electronics ensure great possibilities when it comes to module's adaptation capabilities.
Due to high precision of a measurement it is recommended to build the module into the customer's device (e.g. anti-draft chamber), thus limiting ambient conditions influence.
Power supplier for MUYA weighing module comes standard.
Parameters
- Power consumption max.: 700 mA (wireless terminal - 1A)
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Stabilization time: 10 - 20 s
- Weighing pan dimensions: ø16 mm
- Minimum weight (USP): 0,5 mg
- Minimum weight (U=1%,k=2): 0,05 mg
- Sensitivity time drift: 1×10⁻⁶/Year×Rt
- Sensitivity temperature drift: 1×10⁻⁶/°C×Rt
- Sensitivity offset: 1,5×10⁻⁶×Rt
- Eccentric load deviation: 1,5 µg
- Linearity: ±1,5 µg
- Repeatability: 0,25 µg
- Tare range: -2,1 g
- Maximum capacity [Max]: 2,1 g
- Readability [d]: 0,1 µg
- Adjustment: internal (automatic)
- Protection class: IP 32
- Net weight: 6,3 kg
- Memory: RAM 256 MB DDR2, 16GB - microSD
- Processor: 2×1 GHz
- Gross weight: 12,8 kg
- Packaging dimensions: 610×610×455 mm
- Preload range: 0,21 g
