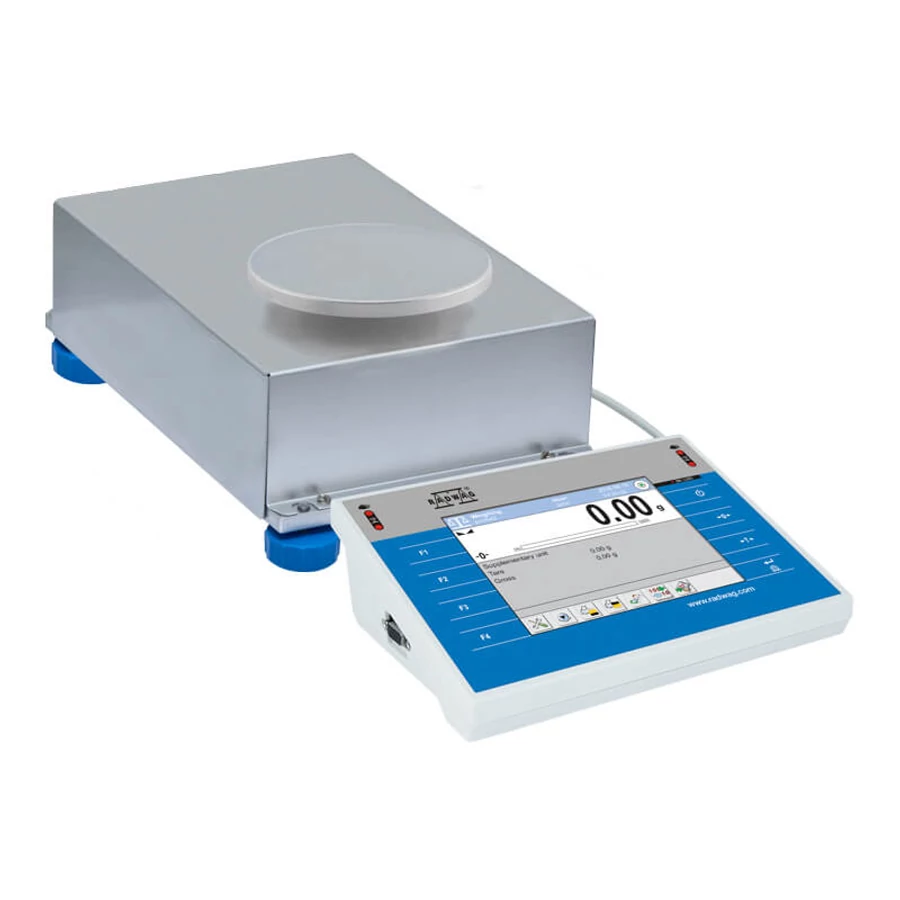

MPS Y device consists of the electromagnetic module of high resolution and Y operation panel equipped with LCD. It has been designed to be easily integrated into customer-owned weighing systems, and therefore can be built either into technological line or inside weighing devices or laboratory equipment. The MPS Y allows to perform the measurements using the under-pan weighing method or a regular weighing pan. In case of the under-pan method the load is suspended beneath the module.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The MPS module comes standard with a dedicated power supply.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.01 g,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration.
The Y panel functionality is remarkable thanks to use of numerous interfaces: 2×RS232, 2xUSB type A, Ethernet, 4×IN, 4×OUT, Wi-Fi.
MPS.Y can also be integrated with E2R Weighing Records and E2R PGC.
Parameters
- Maximum capacity [Max]: 6000 g
- Readability [d]: 10 mg
- Tare range: -6000 g
- Weighing pan dimensions: ø115 mm
- Operating temperature: +15 ÷ +35 °C
- Relative humidity: 40% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: 5,7” Resistive Color Touchscreen
- Net weight: 4,8 kg
- Device dimensions: 293×190×112 mm
- Packaging dimensions: 515×340×295 mm
