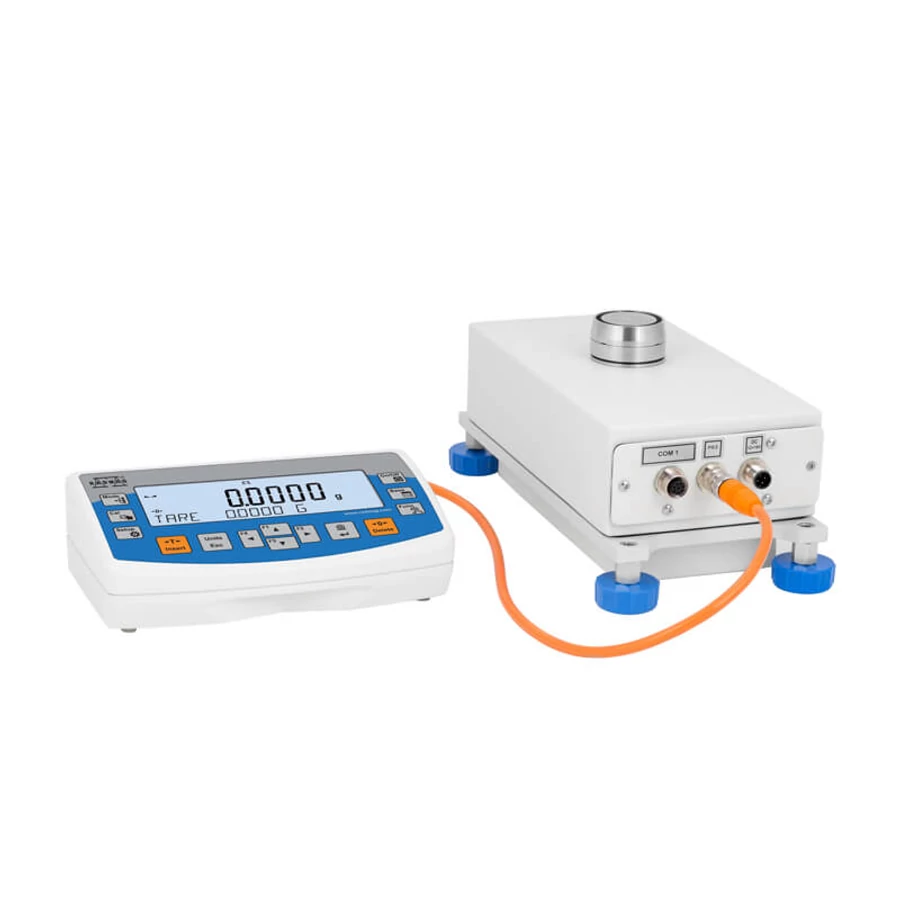

MAS.1 R device is an electromagnetic weighing module of high resolution, equipped with R touch panel featuring 5.7" display. The module is intended to be integrated into customer-owned weighing system. The compact design and integrated electronics make it possible to adapt the module into customer's technological line or to install it inside customers' device.
In order to reduce the influence of ambient conditions on the measurement result which is a cause high measurement accuracy, it is recommended to install the module inside a draft shield for example.
The module comes standard with a dedicated power supply.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.01 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration.
Parameters
- Communication interface: RS232
- Readability [d]: 0,01 / 0,1 mg
- Tare range: -220 g
- Weighing pan dimensions: ø42 mm
- Operating temperature: +10 ÷ +40 °C
- Stabilization time: 6 / 2 s
- Protection class: IP 54
- Net weight: 4,7 kg
- Minimum weight (U=1%,k=2): 4 mg
- Minimum weight (USP): 40 mg
- Linearity: ±0,06 / 0,2 mg
- Repeatability (Max): 0,1 mg
- Repeatability (5% Max): 0,02 mg
- Minimum load: 1 mg
- Display: LCD (backlit)
- Maximum capacity [Max]: 82 / 220 g
- Device dimensions: 289×143×125 mm
- Power supply: 100 – 240 V AC 50/60 Hz
- Relative humidity: 40% ÷ 80%
- Gross weight: 6,7 kg
- Packaging dimensions: 650×340×315 mm
- Preload range: 8,2 g
