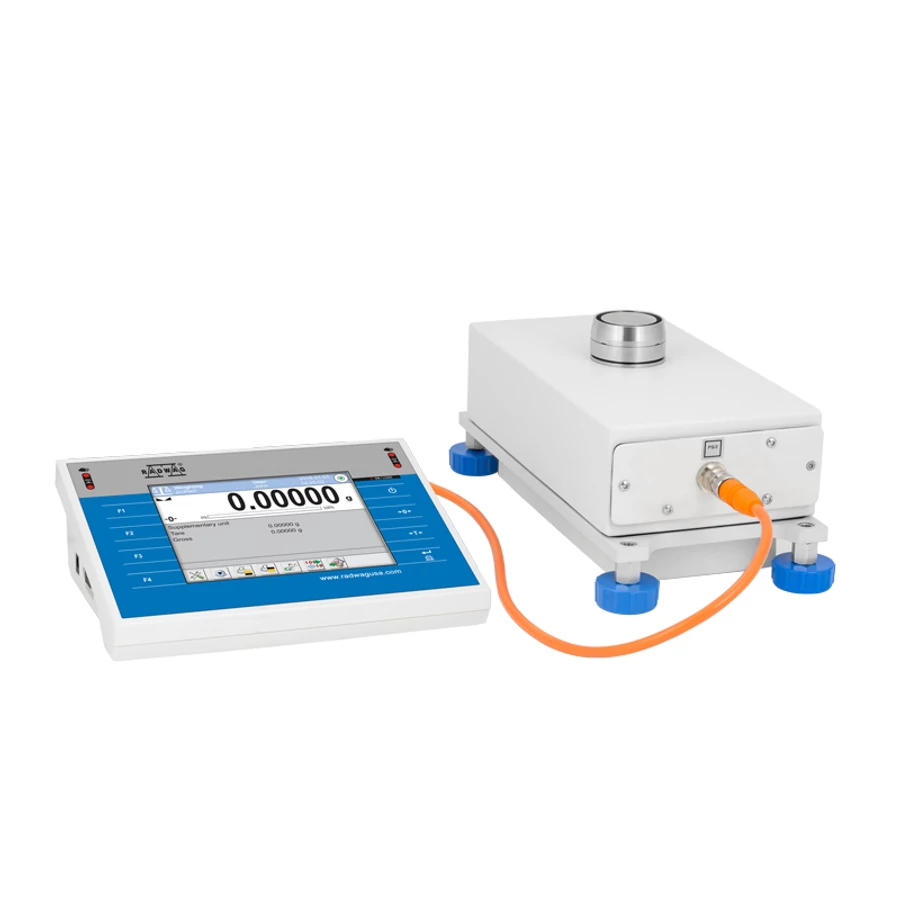

MAS.1 Y device is an electromagnetic weighing module of high resolution, equipped with Y touch panel featuring 5.7" display. The device can be integrated into a weighing system of the customer. Solid construction and advanced electronics ensure great adaptability both when fitting the module into the technological line and building it into the customer device.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The module comes standard with a dedicated power supply.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.01 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration.
The Y panel functionality is remarkable thanks to use of numerous interfaces: 2×RS232, 2×USB type A, Ethernet, 4×IN, 4×OUT, Wi-Fi
Parameters
- Readability [d]: 0,01 mg
- Tare range: -51 g
- Weighing pan dimensions: ø33 mm
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: 5,7” Resistive Color Touchscreen
- Device dimensions: 289×143×125 mm
- Maximum capacity [Max]: 51 g
- Minimum load: 1 mg
- Repeatability (5% Max): 0,012 mg
- Repeatability (Max): 0,025 mg
- Linearity: ±0,06 mg
- Minimum weight (USP): 24 mg
- Minimum weight (U=1%,k=2): 2,4 mg
- Net weight: 4,7 kg
- Protection class: IP 54
- Stabilization time: 6 s
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Gross weight: 6,7 kg
- Packaging dimensions: 650×340×315 mm
