Leírás

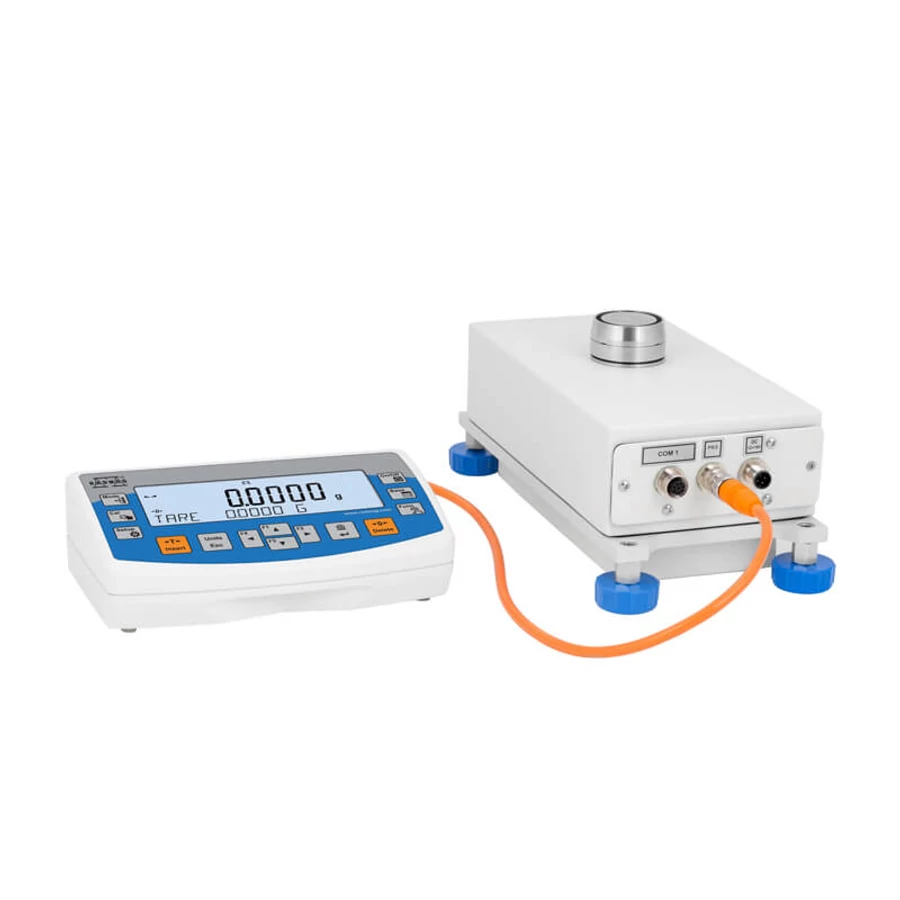

MAS.1 R device is an electromagnetic weighing module of high resolution, equipped with R touch panel featuring 5.7" display. The module is intended to be integrated into customer-owned weighing system. The compact design and integrated electronics make it possible to adapt the module into customer's technological line or to install it inside customers' device.
In order to reduce the influence of ambient conditions on the measurement result which is a cause high measurement accuracy, it is recommended to install the module inside a draft shield for example.
The module comes standard with a dedicated power supply.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.01 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration.
Parameters
- Readability [d]: 0,01 mg
- Tare range: -21 g
- Weighing pan dimensions: ø33 mm
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Device dimensions: 289×143×125 mm
- Maximum capacity [Max]: 21 g
- Display: LCD (backlit)
- Minimum load: 1 mg
- Repeatability (5% Max): 0,012 mg
- Repeatability (Max): 0,025 mg
- Linearity: ±0,06 mg
- Minimum weight (USP): 24 mg
- Minimum weight (U=1%,k=2): 2,4 mg
- Net weight: 4,7 kg
- Protection class: IP 54
- Stabilization time: 6 s
- Communication interface: RS232
- Gross weight: 6 kg
- Packaging dimensions: 650×340×315 mm
- Preload range: 2,1 g
