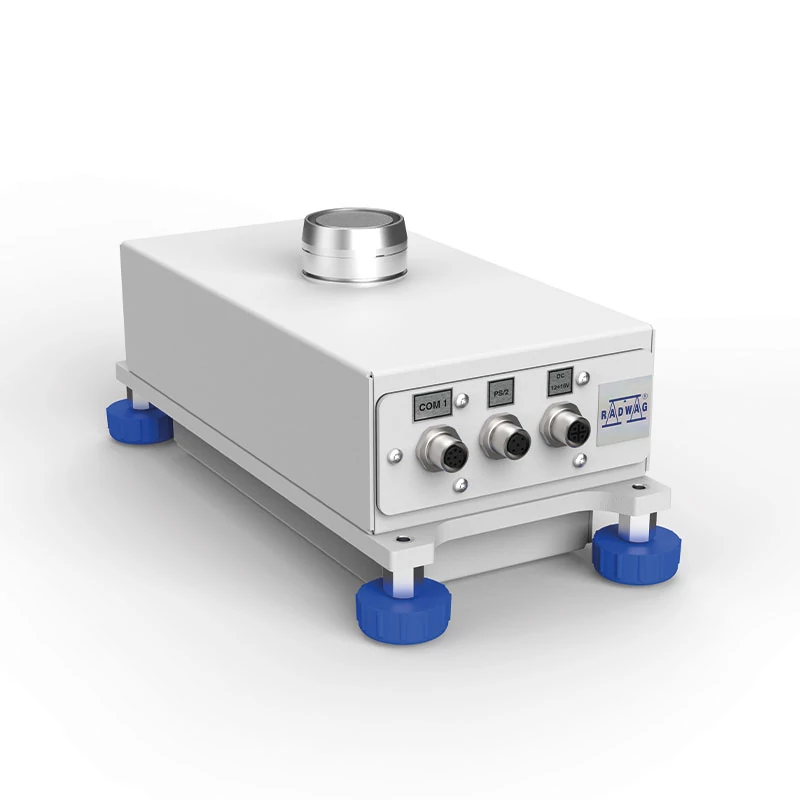

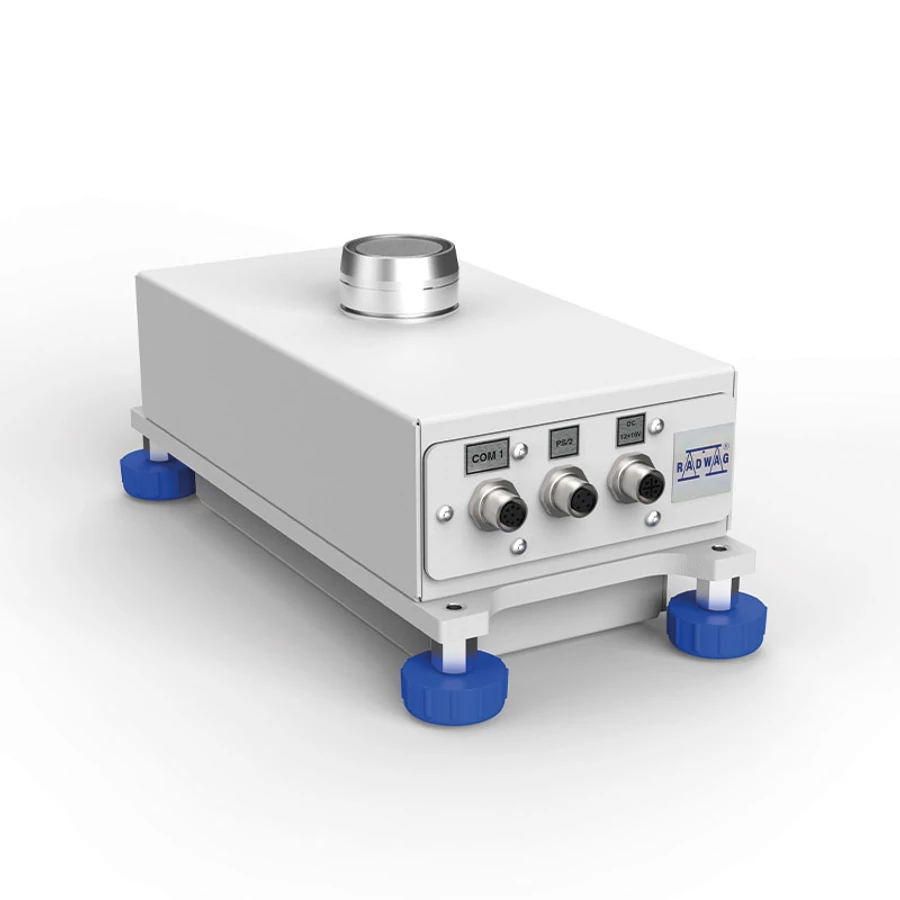

The series of standard electromagnetic modules of high resolution, MAS.1, is intended for integration into customer’s weighing systems.
The high resolution MAS.1 module operates on the basis of electromagnetic force converter. Thanks to its compact design and integrated electronics the module can be both adapted into technological lines and installed inside customers' devices.
By cause of high measurement accuracy, it is recommended to install the module inside customer's instrument (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The MAS.1 module comes standard with a dedicated power supply.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.01 mg,
Overload protection,
Ease of adaptation to the required storage space,,
Internal adjustment,
Various options of hardware configuration.
Parameters
- Readability [d]: 0,01 mg
- Tare range: -21 g
- Weighing pan dimensions: ø33 mm
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Device dimensions: 289×143×125 mm
- Maximum capacity [Max]: 21 g
- Minimum load: 1 mg
- Repeatability (5% Max): 0,012 mg
- Repeatability (Max): 0,025 mg
- Linearity: ±0,06 mg
- Minimum weight (USP): 24 mg
- Minimum weight (U=1%,k=2): 2,4 mg
- Net weight: 4,1 kg
- Protection class: IP 54
- Stabilization time: 6 s
- Communication interface: RS232
- Gross weight: 6,1 kg
- Packaging dimensions: 650×340×315 mm
- Preload range: 2,1 g
