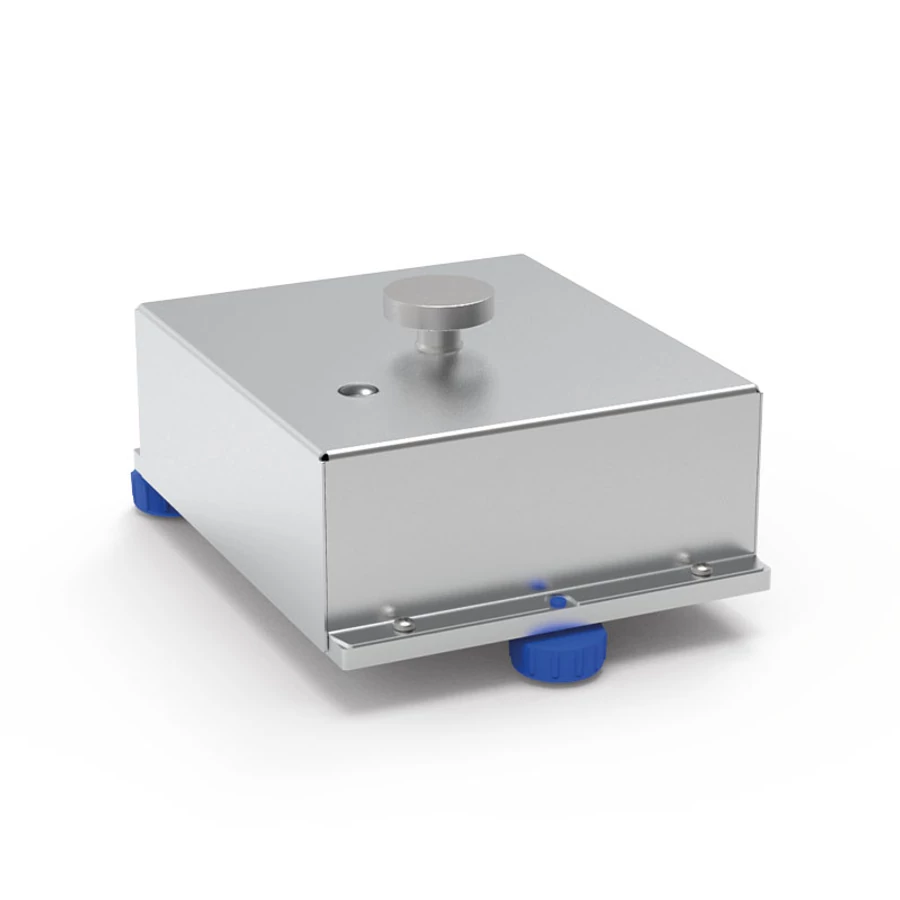

MAS, the electromagnetic modules of high resolution are devices designed to be integrated into weighing systems of the customer. Their compact design and in-built electronics stand for significant adaptation possibilities which guarantees that customer demands are met.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.1 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration,
The module housing features the following interfaces:
RS232 and USB type B.
The measurements can be carried out using the weighing pan or an under-pan weighing system – solution requiring the load to be suspended beneath the module. In order to prevent negative influence of the ambient conditions onto the weighing result, it is recommended to install the module inside the customer's device (e.g. in a draft shield).
The MAS module comes standard with a dedicated power supply.
Dedicated software
Dedicated freeware, the R Panel, has been designed to enable control of the module via a computer. It provides access to all the keys and functions available directly from the operation panel, e.g. taring, zeroing, setup, etc. An innovative algorithm for automatic search of electromagnetic weighing modules is a guarantee for a remarkable ease of connection of a module to a computer.
With R Panel software, the complete functionality of R series balances is available via PC .
R Panel functionality has been implemented in RLab program as one of its numerous functions.
Parameters
- Maximum capacity [Max]: 82 / 220 g
- Minimum load: 1 mg
- Readability [d]: 0,01 / 0,1 mg
- Tare range: -220 g
- Preload range: 8,2 g
- Linearity: ±0,06 / 0,2 mg
- Stabilization time: 6 / 2 s
- Weighing pan dimensions: ø42 mm
- Adjustment: internal (automatic)
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Protection class: IP 32
- Power supply: 100 – 240 V AC 50/60 Hz
- Communication interface: RS232, USB-B
- Packaging dimensions: 515×340×295 mm
- Net weight: 3 kg
- Device dimensions: 175x236x105 mm
- Housing: aluminum
- Standard minimum weight (USP): 40 mg
- Standard minimum weight (U=1%, k=2): 4 mg
- Repeatability (Max): 0,1 mg
- Repeatability (5% Max): 0,02 mg
