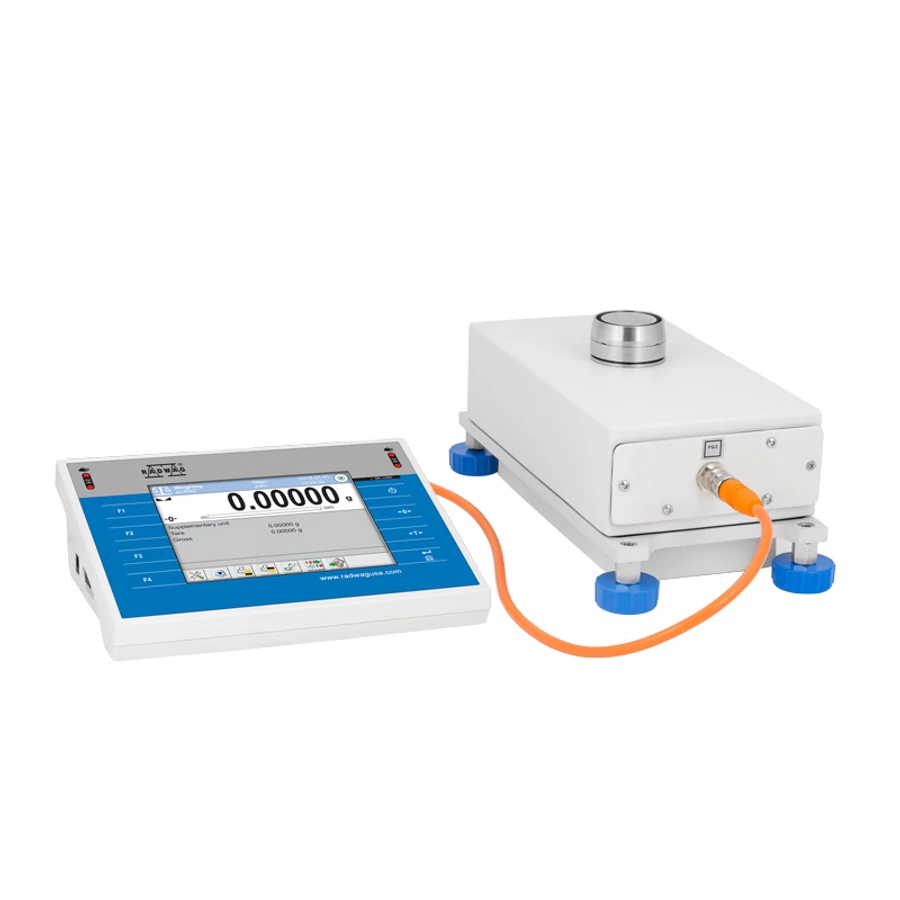

MAS Y device features an electromagnetic MAS module of high resolution and Y touch panel featuring 5.7” display. The device is intended to be integrated into customer's system. Compact module design plus the in-built electronics allow to adapt the module respectively in accordance with the customer demand.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.1 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration.
The measurements can be carried out using an under-pan weighing solution and a regular weighing pan. By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The Y panel functionality is remarkable thanks to use of numerous interfaces: 2×RS232, 2xUSB type A, Ethernet, 4×IN, 4×OUT, Wi-Fi.
The module comes standard with a dedicated power supply.
Parameters
- Maximum capacity [Max]: 220 g
- Readability [d]: 0,1 mg
- Tare range: -220 g
- Weighing pan dimensions: ø42 mm
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: 5,7” Resistive Color Touchscreen
- Net weight: 3,7 kg
- Device dimensions: 175×236×105 mm
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Packaging dimensions: 610×340×295 mm
