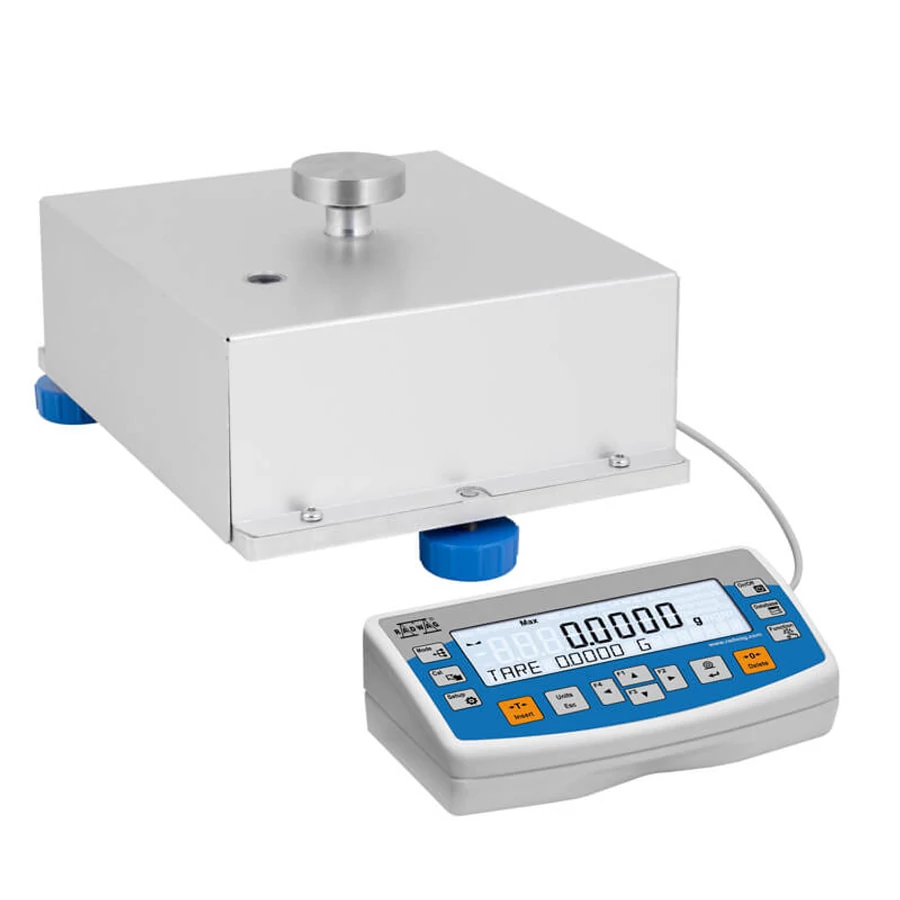

MAS R is a device comprising electromagnetic MAS module of high resolution and R operation panel equipped with an LCD. MAS R is known for its great adaptation possibilities both when speaking of its integration into a technological line and building it into a customer-owned device.
Features:
Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
Readability of 0.1 mg,
Overload protection,
Ease of adaptation to the required storage space,
Internal adjustment,
Various options of hardware configuration,
The module has been equipped with RS232 and USB type B interfaces.
The measurements are possible to be performed using an under-pan weighing solution and a regular weighing pan. It is recommended to build the module into customer's device, e.g. draft shield. With this the negative effect of ambient conditions brought about onto the weighing result is reduced.
The module comes standard with a dedicated power supply.
Dedicated software
Dedicated freeware, the R Panel, has been designed to enable control of the module via a computer. It provides access to all the keys and functions available directly from the operation panel, e.g. taring, zeroing, setup, etc. An innovative algorithm for automatic search of electromagnetic weighing modules is a guarantee for a remarkable ease of connection of a module to a computer.
With R Panel software, the complete functionality of R series balances is available via PC .
R Panel functionality has been implemented in RLab program as one of its numerous functions.
Parameters
- Maximum capacity [Max]: 220 g
- Minimum load: 10 mg
- Readability [d]: 0,1 mg
- Tare range: -220 g
- Repeatability: 0,1 mg
- Linearity: ±0,2 mg
- Stabilization time: 3,5 s
- Weighing pan dimensions: ø42 mm
- Adjustment: internal (automatic)
- Operating temperature: +10 ÷ +40 °C
- Relative humidity: 40% ÷ 80%
- Protection class: IP 32
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: LCD (backlit)
- Communication interface: RS232, USB
- Net weight: 3,6 kg
- Device dimensions: 175×236×105 mm
- Housing: aluminum
- Packaging dimensions: 610×340×295 mm
- Preload range: 22 g
