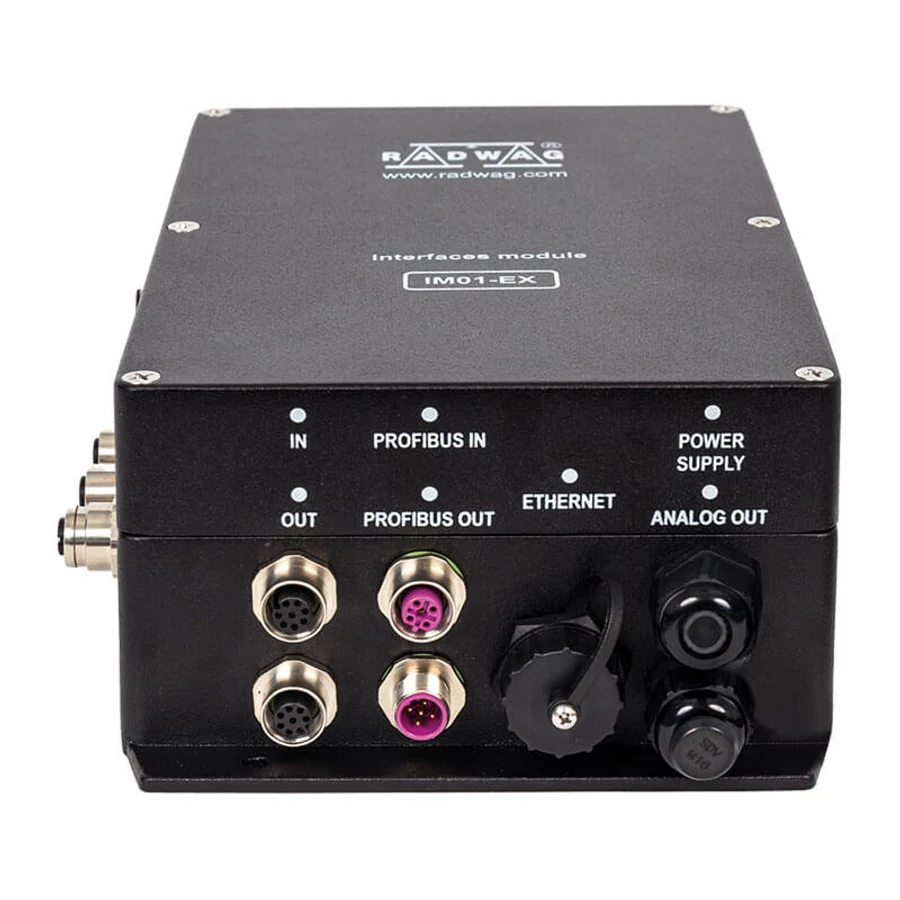

With use of IM01.EX communication module it is possible to expand communication interfaces range of the HX5.EX indicator. The module is installed outside the hazardous area, and connected to the indicator using intrinsically safe interface.
IM01.EX allows to establish communication between the scale and various accessories, e.g. barcode scanners, printers, displays, control buttons, light signalling towers, buzzers and other controlling/signalling devices. It also enables connection with systems of automatic adjustment and control of industrial processes, and with superior IT systems.
IM01.EX-4 interfaces:
2 x RS232,
USB,
4 IN, 4 OUT (digital),
Ethernet,
Profibus DP.
It is possible to configure module interface quantity following the Interface Configuration Table that is to be found in product data sheet.
Parameters
- ATEX Certification: II (2)G [Ex ib] IIC Gb
II (2)D [Ex ib] IIIC Db - Housing: aluminum
- Protection class: IP 66 / IP 68 (1,5m)
- Communication interface: 2×RS232, USB, 4IN / 4OUT, Ethernet, Profibus DP
- Power supply: 100 – 240 V AC 50/60 Hz
- Power consumption max.: 10 W
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -20 ÷ +60 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Device dimensions: 222×146×81 mm
- Net weight: 1,9 kg
- Gross weight: 2,5 kg
