If you buy a High Resolution Scale HY10 by July 31, 2024,
you will receive each of these products along with a FREE lifetime license for the Workflow Module.
Fast and Stable Measurement
The scale displays the final result even in one second.
High Maximum Capacity and Accuracy in a Single Device
On the large weighing pan of an HRP scale, you can weigh a load of 150 kg with a readability of 1 g and impressive repeatability.
Minimum Eccentricity Error Over the Entire Range
On the HRP scales, you can also weigh irregularly shaped items with a centre of gravity significantly displaced from the weighing pan axis.
Parameter Stability Over Time and After Transport
Retain the correct metrological parameters even after prolonged, intensive use and transport of the scale due to its resistant and robust mechanical design.
Weighing Pan Dimensions Adapted to the Accuracy of the Balance
Weigh with the highest readability of 0.02 g on the 360 x 280 mm weighing pan and with a readability of 20 g on the 1,250 x 1,000 mm weighing pan.
Maximum Robustness
IP 67 platforms with additional sealing elements to protect against dust, dirt and moisture and can be cleaned with a pressure washer.
New, lmproved
MONOBLOCK®
The new, taller and larger MONOBLOCK® enables the best repeatability and speed in its class of weighing platforms.
New HRP Platform
HY10 terminal is a constructional component of industrial multifunctional load cell scales, it connects with RADWAG high resolution platforms and weighing modules.
Readability of 0.01 g at 10 kg maximum capacity and 0,2 g at 120 kg maximum capacity.
Repeatability down to 0.01.
Higher resistance to changes in ambient conditions.
The platforms are so robust that they can be cleaned with a pressure washer.
Transport protection that stiffens the structure during transport, eliminating any unwanted stresses.
Platforms with a maximum capacity starting at 300 kg include transport handles, which makes them easy to move.
Platforms of IP 67.

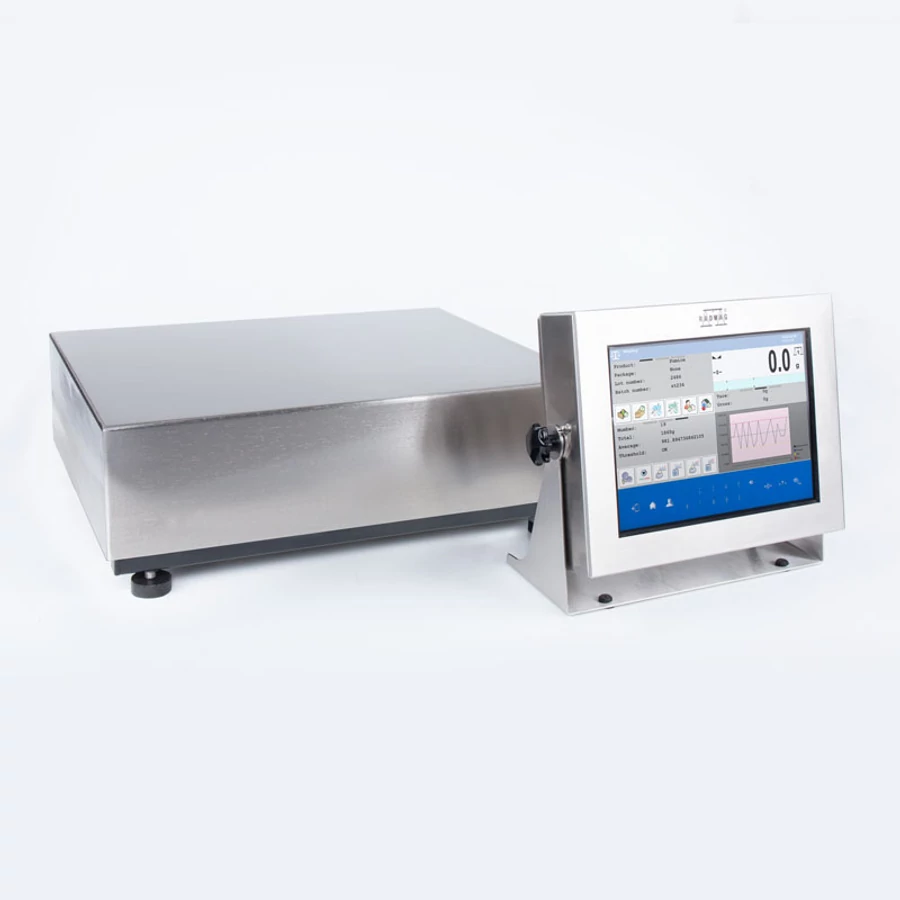

PUE HY10 Terminal
HY10 terminal is a constructional component of industrial multifunctional load cell scales, it connects with RADWAG high resolution platforms and weighing modules.
High Level of Protection
HRP scales have additional sealing elements to protect them from dust, dirt and moisture.
This allows them to be cleaned with a pressure washer.
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- GLP Procedures
- Animal weighing
- Differential weighing
- Replaceable unit
- Statistical Quality Control
- ALIBI Memory
- Transactions
Parameters
- Net weight: 41 kg
- Display: 10″ graphic colour touchscreen
- Repeatability: 0,08 g
- Linearity: ±0,4 g
- Stabilization time: 2 s
- Power supply: 100 – 240 V AC 50/60 Hz
- Protection class: IP 66/67 construction, IP 68/69 terminal
- Relative humidity: 40% ÷ 80%
- Operating temperature: +10 ÷ +40 °C
- Adjustment: internal (automatic)
- Weighing pan dimensions: 500×400 mm
- Tare range: -62 kg
- Preload range: 30 kg
- Readability [d]: 0,1 g
- Minimum load: 25 g
- Maximum capacity [Max]: 62 kg
- Gross weight: 35 kg
- Packaging dimensions: 610×710×505 mm
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
- Weighing pan material: Stainless steel AISI304
- Construction: mild steel St3S
- Optional interfaces: module Wi-Fi 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)
