If you buy a High Resolution Scale HY10 by July 31, 2024,
you will receive each of these products along with a FREE lifetime license for the Workflow Module.

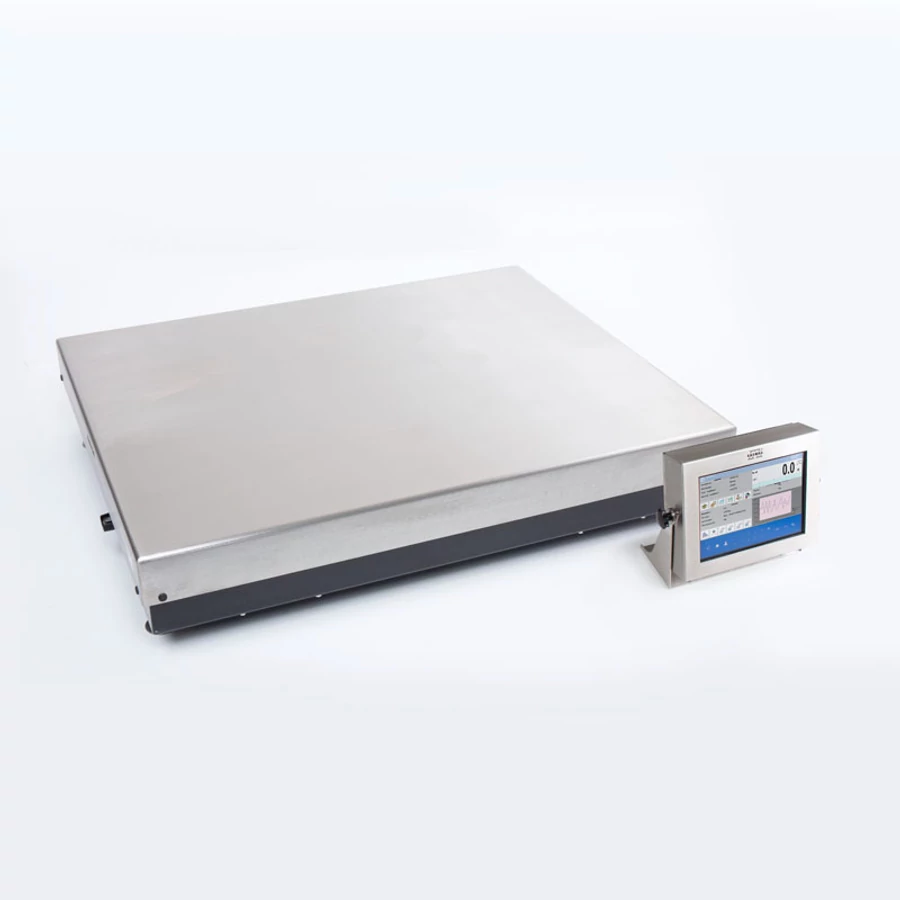

Maximum Robustness
The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.
9 advantages
The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved RADWAG MonoBLOCK technology. The new – taller and larger – RADWAG MonoBLOCK has enabled the best repeatability and speed in the class of high-resolution industrial weighing platforms.
Repeatability not repeatable by others
Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort.
For such industries as pharmaceutical, chemical, food and…
HY10.HRP H scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries. The HY10.HRP and HX7.HRP scales whose terminals are made of stainless steel can be used even in the most demanding wet environments.
Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
5.7-inch color resistive display
a touch-sensitive keyboard
ABS plastic housing
IP 43 protection rating
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®,
optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
10.1-inch color graphic display
touchscreen keyboard
stainless steel housing
IP 68/69 degree of protection
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, moduł wyjść analogowych, 12 IN/ 12 OUT.
The power of steel
The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.
Use the potential
Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, HY10 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of HY10’s working mods.
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- GLP Procedures
- Animal weighing
- Differential weighing
- Replaceable unit
- Statistical Quality Control
- ALIBI Memory
- Transactions
Parameters
- Net weight: 126 kg
- Display: 10″ graphic colour touchscreen
- Repeatability: 7,5 g
- Linearity: ±20 g
- Stabilization time: 3 s
- Power supply: 100 – 240 V AC 50/60 Hz
- Protection class: IP 66/67 construction, IP 68/69 terminal
- Relative humidity: 40% ÷ 80%
- Operating temperature: +10 ÷ +40 °C
- Adjustment: internal (automatic)
- Weighing pan dimensions: 1000×800 mm
- Tare range: -600 kg
- Preload range: 60 kg
- Readability [d]: 20 g
- Minimum load: 1000 g
- Maximum capacity [Max]: 600 kg
- Gross weight: 160 kg
- OIML Class: II
- Verification unit [e]: 20 g
- Maximum quantity of verification units: 30000 e
- Packaging dimensions: 1000×1200×666 mm
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
- Weighing pan material: Stainless steel AISI304
- Construction: Stainless steel AISI304
- Optional interfaces: module Wi-Fi 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)
