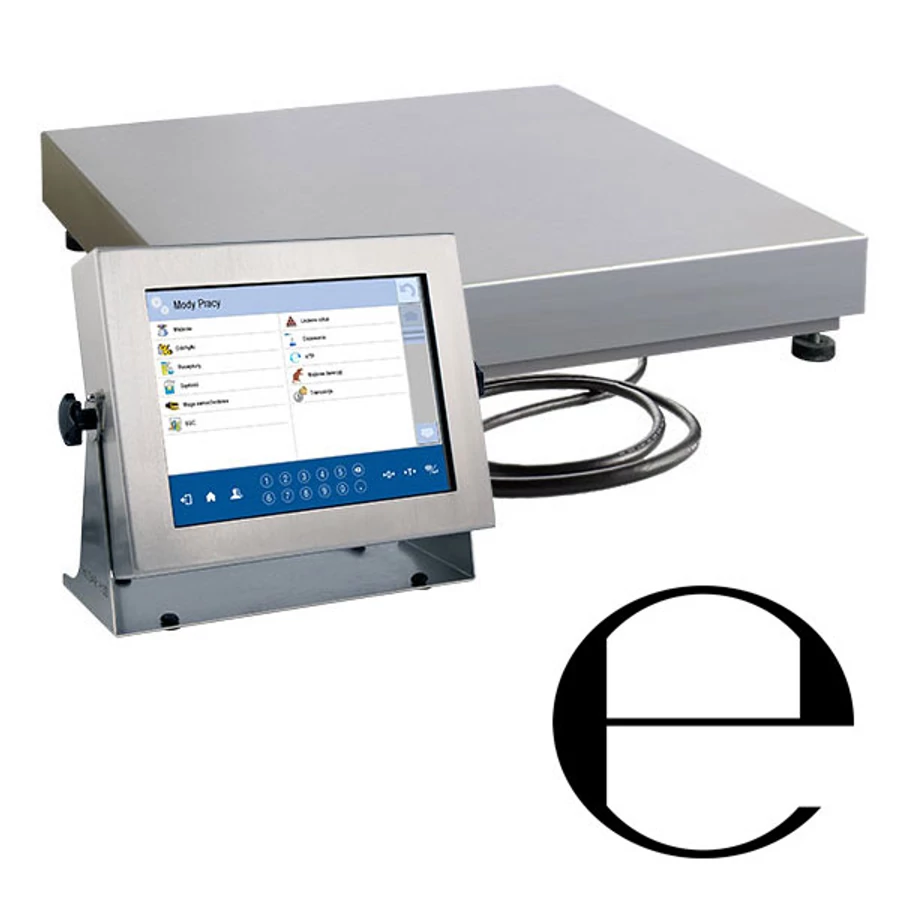

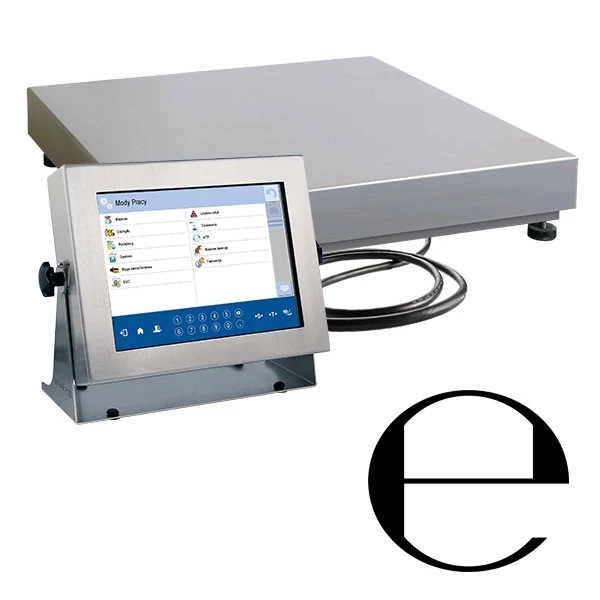

Scale HY10.H for statistic control
Scales HY10.PGC series is equipped with module for control of packed goods. The module is supported by database containing products and operators lists. A control started by the scale is automatically stopped after pre-defined quantity of packages (samples) has been controlled. Number of the packages is fixed by scale program depending on product batch size. Scales features 10,1" colourful, graphic touch screen display and full alphanumeric keyboard aiding scale operation and setting control parameters.
Control cycle runs according to the following scheme:
operator choice,
product choice,
control start,
acquiring weighing records,
automatic control end after certain packages number,
control report print.
Each carried out control is ended with a final report containing all information that is necessary for prepacked products control report. The report is automatically saved in scales memory and at the same time it can be printed by printer connected to the scales.
The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).
Functions
- Dosing
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- GLP Procedures
- Animal weighing
- Differential weighing
- Replaceable unit
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Transactions
Parameters
- Maximum capacity [Max]: 1,5 / 3 kg
- Readability [d]: 0,5 / 1 g
- Tare range: -3 kg
- Weighing pan dimensions: 150×200 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Power supply: 100 – 240 V AC 50/60 Hz
- Display: 10″ graphic colour touchscreen
- Packaging dimensions: 350×420×470 mm
- OIML Class: III
- Verification unit [e]: 0,5 / 1 g
- Net weight: 8,48 kg
- Gross weight: 10 kg
- Communication interface: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
- Cable length: 1,5 m
- Optional interfaces: module Wi-Fi 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)
