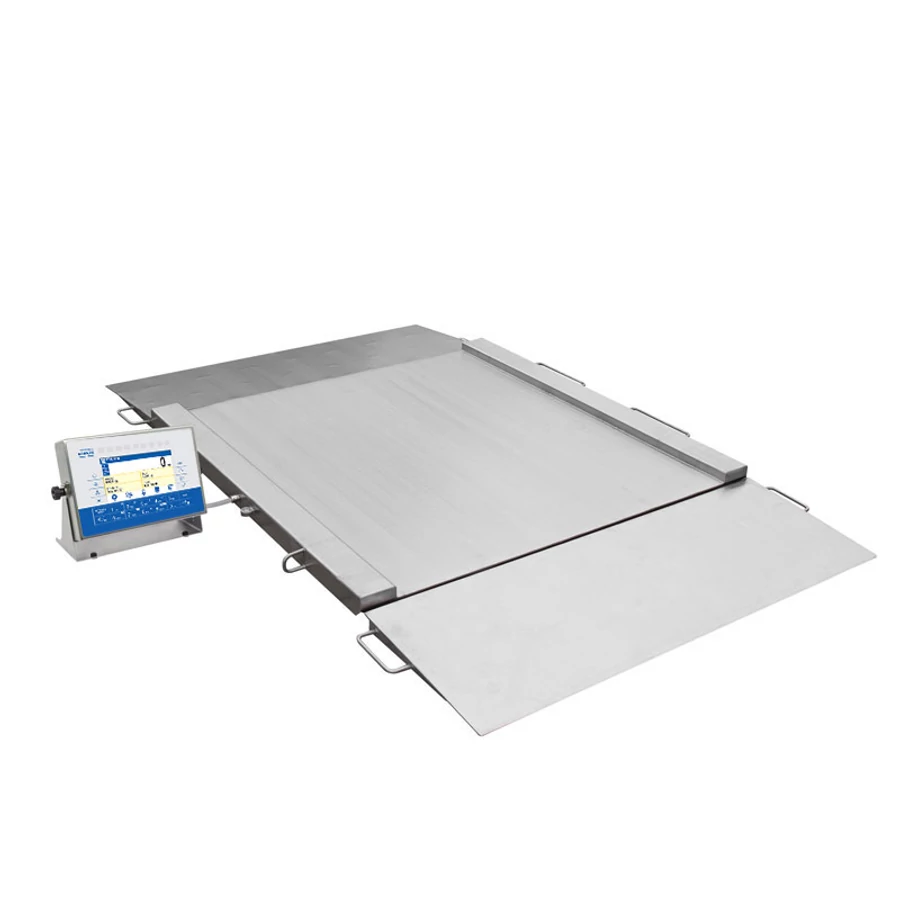

The HX7.4N H scale is a device controlled by means of the PUE HX7 indicator, and it has been equipped with a 4-load-cell ramp platform made of stainless steel, AISI 304. This robust design facilitates weighing of heavy loads in humid environment. The ramps enable easy loading and unloading.
Indicator with a colour 7” graphic display and a diode bar graph allow to observe visualisation of a current load mass presented in relation to the scale range or declared minimum and maximum thresholds. This makes the operation significantly easier. At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.
With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Indicator’s system of information is based on databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.
Functions
- Dosing
- Percent Weighing
- Parts counting
- Formulation
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 600/1500 kg
- Minimum load: 4 kg
- Readability [d]: 200/500 g
- OIML Class: III
- Verification unit [e]: 200/500 g
- Tare range: -1500 kg
- Max number of platforms: 2
- Construction: Stainless steel AISI304
- Indicator: PUE HX7
- Display: 7” graphic colour
- Keypad: membrane
- Number of buttons: 22
- Protection class: IP 68 construction, IP 66/68 terminal
- Power consumption max.: 25 W
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: 12-24V DC
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -10 ÷ +50 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Weighing pan dimensions: 1100×1200 mm
- Net weight: 189,7 kg
- Gross weight: 226,3 kg
- Packaging dimensions: 1500×1300×600 mm
- Cable length: 3 m
- Communication interface: RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
- Optional interfaces: USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
