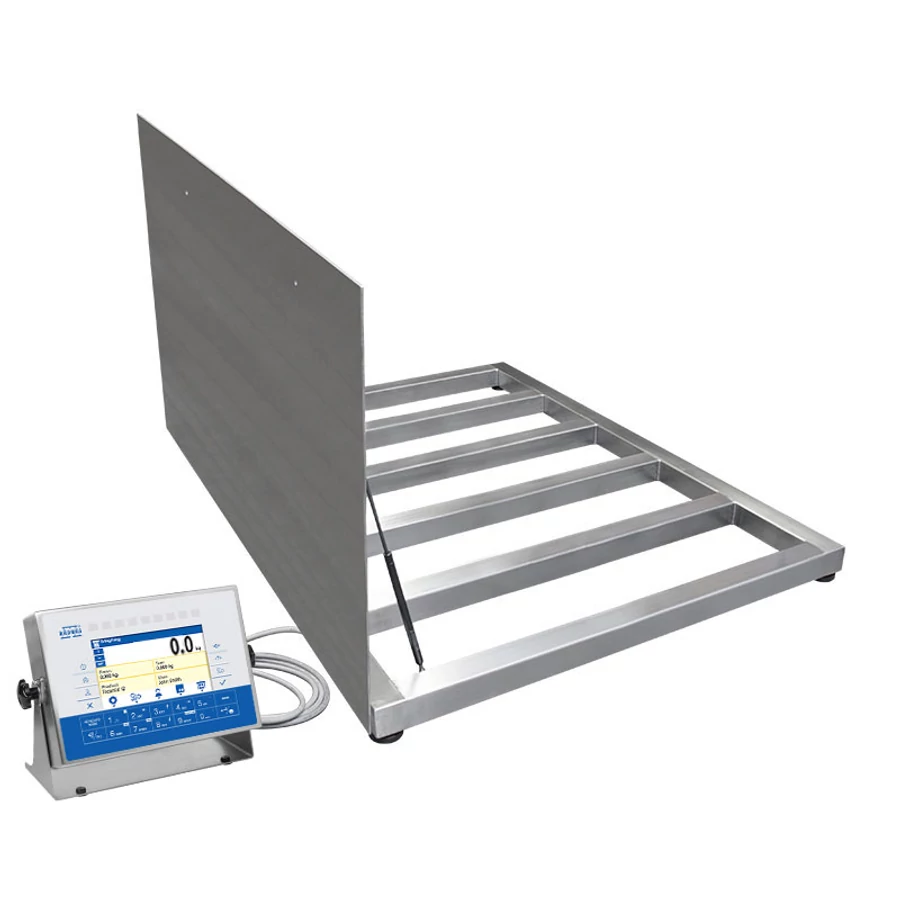

The HX7.4 H/Z scale is a device constructed on the basis of a PUE HX7 terminal and a ground-embedded 4-load-cell platform, both manufactured using the AISI 304 stainless steel. The device's high protection class, IP66 / IP68, makes it suitable for use in industry.
HX7.4 H/Z
Comfort of operation is guaranteed thanks to a clear-cut menu, and a colour display featuring a 9-diode bar graph blinking red and green when signalling current net mass of a load in reference to the scale range or declared min and max thresholds. Housing back is equipped with hermetic communication interfaces such as RS232, RS485, USB, Ethernet, at your disposal there are also digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.
With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing.
The terminal's system of information is based on databases:
users,
products,
weighings,
packaging,
formulations,
customers,
ALIBI memory which guarantees stored data safety.
The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
Functions
- Dosing
- Percent Weighing
- Parts counting
- Formulation
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 600 kg
- Minimum load: 4 kg
- Readability [d]: 200 g
- OIML Class: III
- Max readability for non-verified scale: 50 g
- Verification unit [e]: 200 g
- Tare range: -600 kg
- Max number of platforms: 2
- Construction: Stainless steel AISI304
- Indicator: PUE HX7
- Display: 7” graphic colour
- Keypad: membrane
- Number of buttons: 22
- Protection class: IP 68 construction, IP 66/68 terminal
- Power consumption max.: 25 W
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: 12-24V DC
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -10 ÷ +50 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Weighing pan dimensions: 1200×1200 mm
- Net weight: 144,7 kg
- Gross weight: 181,3 kg
- Packaging dimensions: 1400×1400×550 mm
- Cable length: 3 m
- Communication interface: RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
- Optional interfaces: USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
