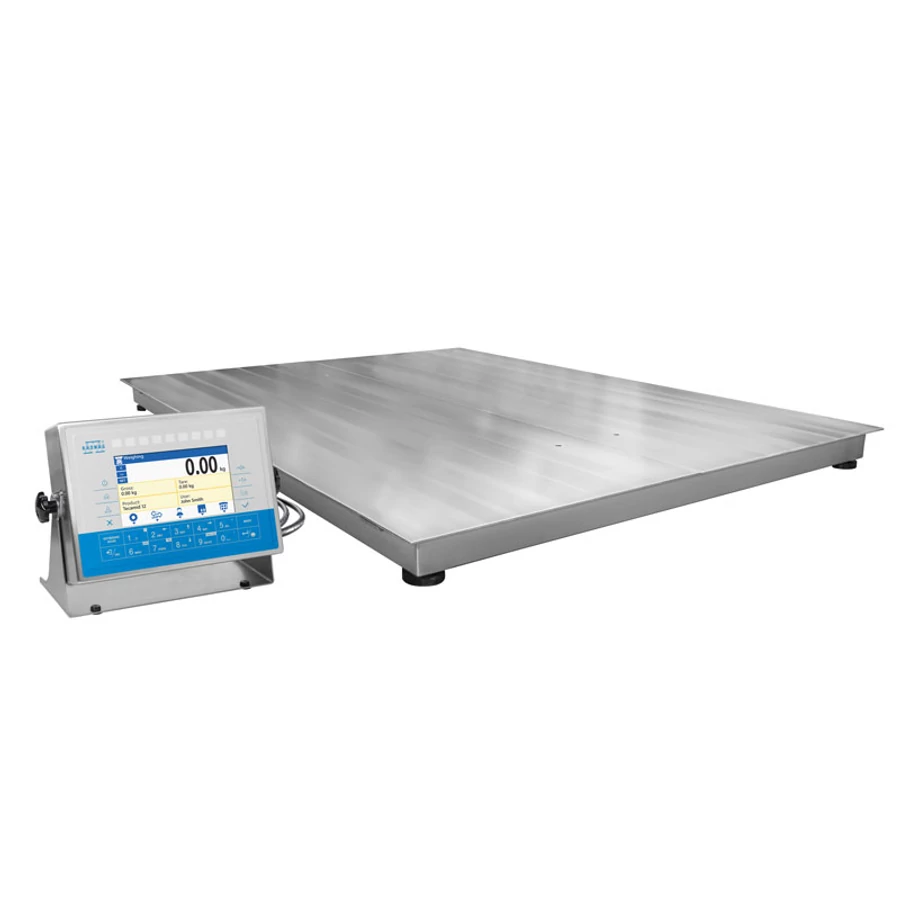

The HX7 H is a mechanical design combining into one a PUE HX7 terminal and a 4-load-cell platform, both made of stainless steel. High protection class, IP66 / IP68, makes the HX7 H a scale that can be used in harsh industrial conditions.
4 load cells guarantee correct weighing regardless of load placing at the platform.
Equipment
The scale provides 7" colour graphic display and a bar graph consisting of 9 diodes emiting red and green light. The bar graph is a graphic visualisation of the current net weight referred either to the scale range or predetermined min and max thresholds. Housing back is equipped with hermetic communication interfaces such as RS232, RS485, USB, Ethernet, at your disposal there are also digital inputs/outputs and analogue output.
This enables cooperation with external devices such as:
barcode scanners,
printers,
external displays,
control buttons,
light signalling towers,
controlling/signalling devices,
systems for automatic process control,
superior IT systems.
With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
Databases
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing.
Terminal’s system of information is based on databases:
users,
products,
weighings,
packaging,
formulations,
customers,
ALIBI memory which guarantees stored data safety.
Functions
- Dosing
- Percent Weighing
- Parts counting
- Formulation
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 600 kg
- Minimum load: 4 kg
- Readability [d]: 200 g
- OIML Class: III
- Max readability for non-verified scale: 50 g
- Verification unit [e]: 200 g
- Tare range: -600 kg
- Max number of platforms: 2
- Construction: Stainless steel AISI304
- Indicator: PUE HX7
- Display: 7” graphic colour
- Keypad: membrane
- Number of buttons: 22
- Protection class: IP 68 construction, IP 66/68 terminal
- Power consumption max.: 25 W
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: 12-24V DC
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -10 ÷ +50 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Weighing pan dimensions: 1500×2000 mm
- Net weight: 280 kg
- Gross weight: 335,5 kg
- Packaging dimensions: 2100×1600×550 mm
- Cable length: 3 m
- Communication interface: RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
- Optional interfaces: USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
