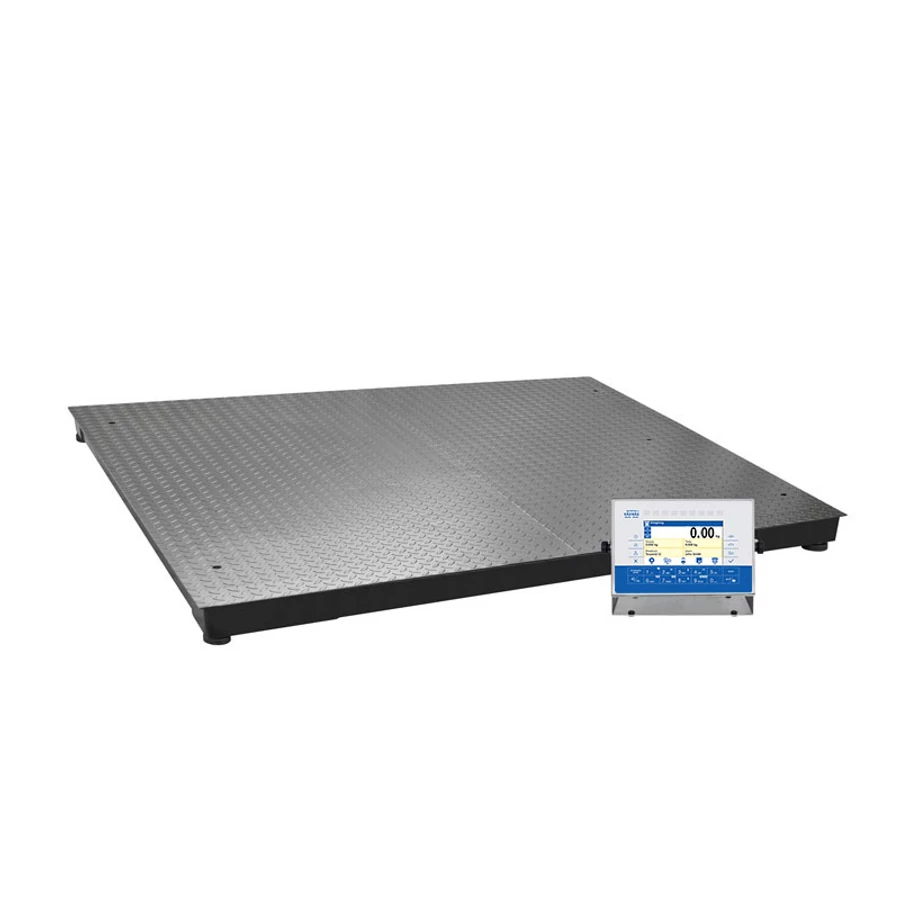

The HX7.4 C scale is a solution based on a stainless steel PUE HX7 terminal (AISI 304) and a powder coated 4-load-cell platform.
The terminal
The terminal is characteristic for a 7” colour graphic display. Its novelty is a red-green 9-diode bar graph presenting the current net mass in reference to the scale range or preset min and max thresholds. At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output.
This enables cooperation with external devices such as:
barcode scanners,
printers,
external displays,
control buttons,
light signalling towers,
other controlling/signalling devices,
systems for automatic process control
superior IT systems.
With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
Databases
Terminal’s system of information is based on databases:
users,
products,
weighings,
packaging,
formulations,
customers,
ALIBI memory which guarantees stored data safety.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing.
Functions
- Dosing
- Percent Weighing
- Parts counting
- Formulation
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 600 kg
- Minimum load: 4 kg
- Readability [d]: 200 g
- OIML Class: III
- Max readability for non-verified scale: 50 g
- Verification unit [e]: 200 g
- Tare range: -600 kg
- Max number of platforms: 2
- Construction: mild steel St3S
- Indicator: PUE HX7
- Display: 7” graphic colour
- Keypad: membrane
- Number of buttons: 22
- Protection class: IP 65 construction, IP 66/68 terminal
- Power consumption max.: 25 W
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: 12-24V DC
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -10 ÷ +50 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Weighing pan dimensions: 1200×1200 mm
- Net weight: 114,7 kg
- Gross weight: 149,3 kg
- Packaging dimensions: 1300×1300×500 mm
- Cable length: 3 m
- Communication interface: RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
- Optional interfaces: USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
