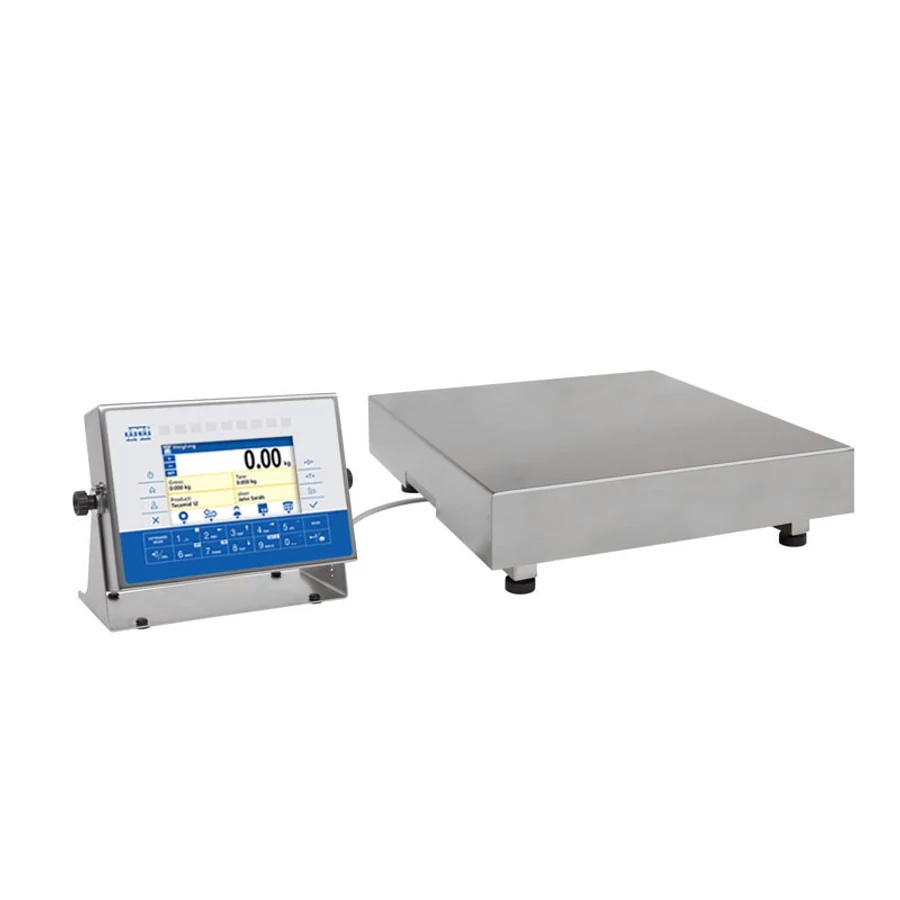

HX7 H scale’s multi functions
Many functions, many interfaces and great robustness (IP66/ IP68) mean many possibilities for you to use this advanced scale. Tomorrow you can apply it to a different process than today – that’s the multifunctionality. That’s the saving!
Use the potential
Barcode scanners, receipt printers, label printers, external displays, control buttons, light signalling towers and other controlling/ signalling devices – thanks to multipurpose software, HX7 scale can work with all of them. You can easily connect them thanks to the fact that the balance is equipped with interfaces: RS232, RS485, USB, Ethernet, 4 IN/ 4 OUT. Optionally, the balance can be equipped with 12 IN/ 12 OUT and analog output module. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Easy and pleasant
Simple and convenient operation with a 7-inch color display. Perfectly visible messages additionally supported by bargraph.
The top part of the operation panel features a bar graph consisting of 9 red and green diode fields. The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.
The bracket allows the terminal to be placed on any flat horizontal surface or screwed to the wall with adjustable angle.
The power of steel
The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The construction of the scale is made of a stainless steel. This guarantees you work for many years.
Not just weighing
But also parts counting, dosing, percent weighing and formulations. The power of HX7’s working mods.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased. Referring to stored weighings you can generate weighing reports, formulation reports and reports on performed control processes. Single weighing is stored in the ALIBI memory as long as it is specified by a Weighing Storage Period (days) parameter.
Functions
- Dosing
- Percent Weighing
- Parts counting
- Formulation
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 30 kg
- Minimum load: 200 g
- Readability [d]: 10 g
- OIML Class: III
- Max readability for non-verified scale: 1 g
- Verification unit [e]: 10 g
- Tare range: -30 kg
- Max number of platforms: 2
- Weighing pan material: Stainless steel AISI304
- Construction: Stainless steel AISI304
- Indicator: PUE HX7
- Display: 7” graphic colour
- Keypad: membrane
- Number of buttons: 22
- Protection class: IP 67 construction, IP 66/68 terminal
- Power consumption max.: 25 W
- Power supply: 100 – 240 V AC 50/60 Hz
- Optional power supply: 12-24V DC
- Operating temperature: -10 ÷ +40 °C
- Storage temperature: -10 ÷ +50 °C
- Relative humidity: 10% ÷ 80% RH no condensation
- Weighing pan dimensions: 400×600 mm
- Net weight: 22 kg
- Gross weight: 26,3 kg
- Packaging dimensions: 490×680×450 mm
- Communication interface: RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
- Optional interfaces: USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
