The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.
Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.
The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

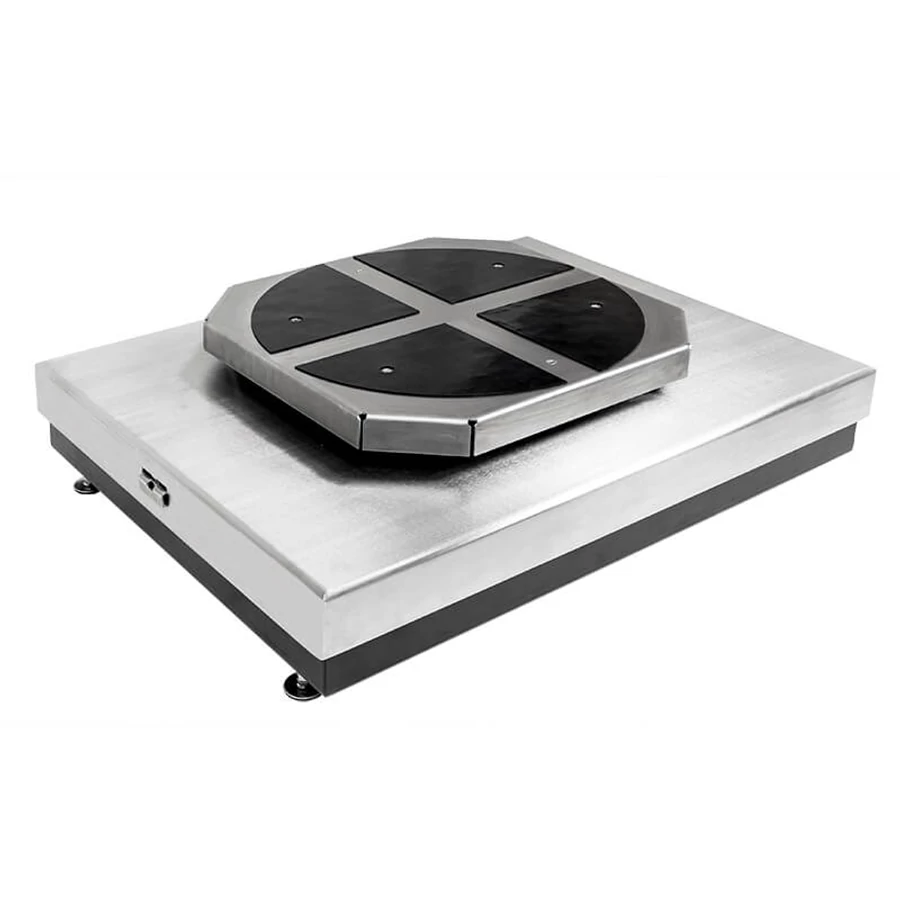

The comparator can be equipped with a self-centring weighing pan (extra charge), which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.
The comparator has a user-friendly menu.
Data security and work results archiving are ensured by RADWAG terminal software.
Parameters
- Maximum capacity [Max]: 510 kg
- F2 Calibration Range: 100 kg ÷ 500 kg
- M1 Calibration Range: 20 kg ÷ 500 kg
- M2 Calibration Range: 10 kg ÷ 500 kg
- Readability [d]: 0,1 g
- Stabilization time: 10 s
- Weighing pan dimensions: 1000×800 mm
- Electric compensation range: 0 ÷ 510 kg
- Adjustment: external
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±1°C/12h
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ±5%/4h
- F1 Calibration Range: 500 kg
- E1 Calibration Range: -
- E2 Calibration Range: -
- Eccentricity (tested load): 2d / 1 mm
- Self-centering weighing pan dimensions: 600×600 (extra charge) mm
- Weighing unit dimensions with self-centering weighing pan: 1010×800×275 mm
- Weighing unit dimensions without self-centering weighing pan: 1010×800×182 mm
- Comparator packaging dimensions without self-centering weighing pan: 1200×1000×440 mm
- Comparator packaging dimensions with self-centering weighing pan: 1200×1000×485 mm
- Maximum permissible load speed: 0,6 m/min
- Recommended load speed: 0,3 m/min
- Net weight: 200 kg
- Gross weight: 269 kg
- Standard repeatability [5% Max]: 0,2 g
- Standard repeatability [Max]: 0,4 g
- Permissible repeatability: 0,6 g
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
