The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.
Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

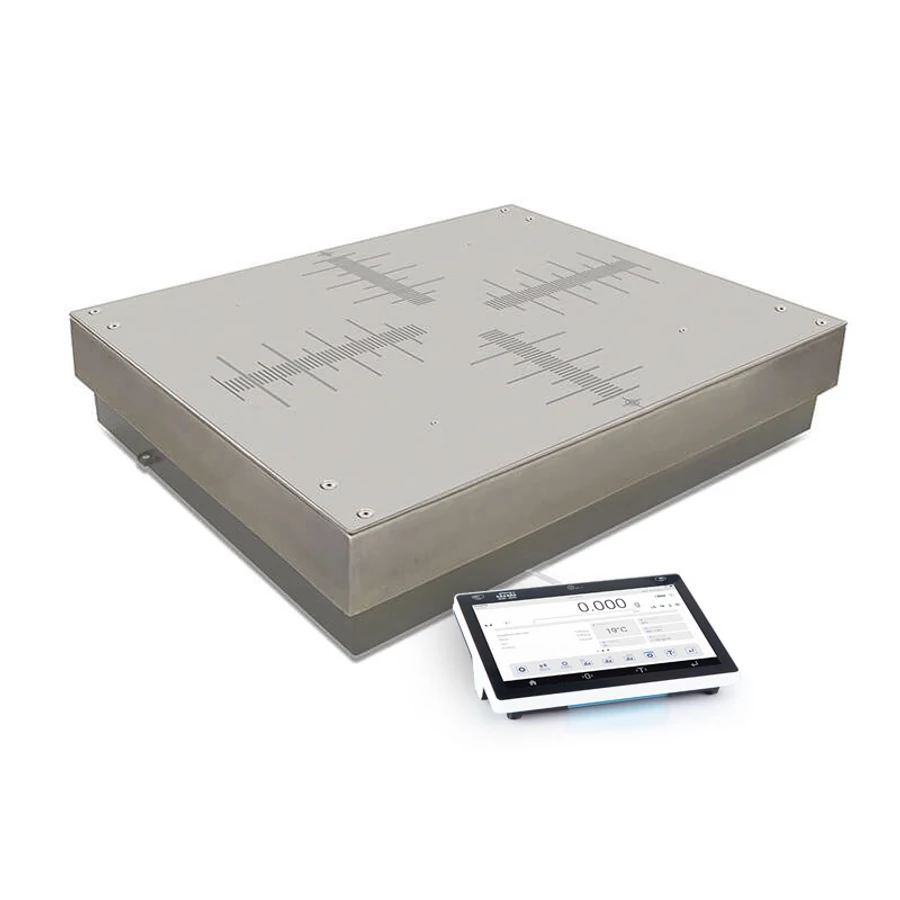

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.
The comparator has a user-friendly menu.
Data security and work results archiving are ensured by RADWAG terminal software.
Parameters
- Recommended load speed: 0,3 m/min
- Operating temperature: +15 ÷ +30 °C
- Weighing pan dimensions: 1250×1000 mm
- Electric compensation range: 0 ÷ 2100 kg
- Stabilization time: 10 s
- Adjustment: internal (automatic)
- E1 Calibration Range: -
- Readability [d]: 5 g
- M2 Calibration Range: 500 kg ÷ 2000 kg
- M1 Calibration Range: 500 kg ÷ 2000 kg
- F2 Calibration Range: -
- Maximum capacity [Max]: 2100 kg
- Relative humidity change rate: ±10%/4h
- Relative humidity: 40% ÷ 60%
- Operating temperature change rate: ±2°C/12h
- F1 Calibration Range: -
- E2 Calibration Range: -
- Eccentricity (tested load): 0,5d / 1 mm
- Standard repeatability [5% Max]: 5 g
- Standard repeatability [Max]: 10 g
- Permissible repeatability: 15 g
- Net weight/gross weight (comparator): 300 / 400 kg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
- Packaging dimensions: 1500×1250×615 mm
