The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) for M1 class and lower.
The comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories, in many countries.

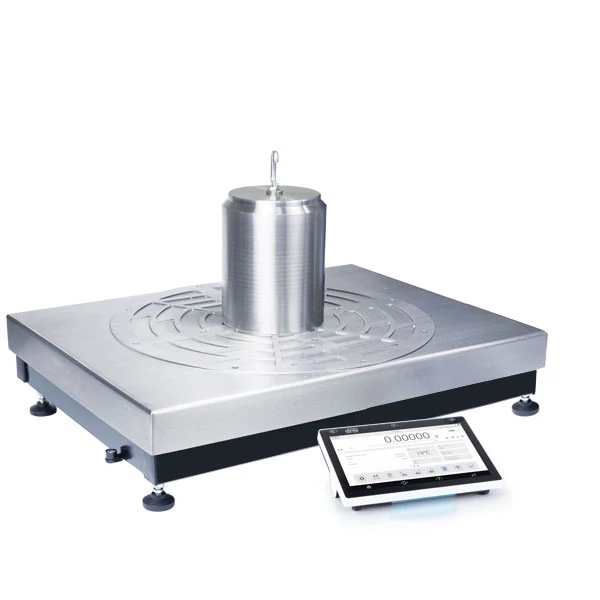

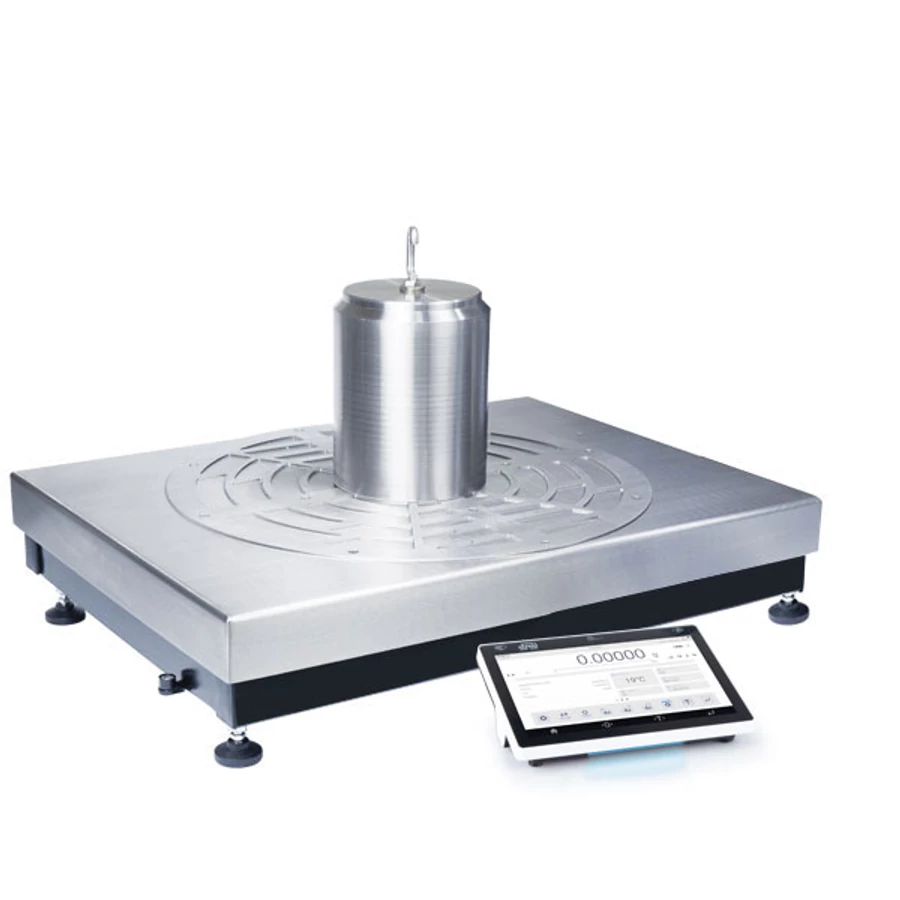

HRP 5Y.KB series comparators comprise two components, professional weighing platform (a new mechanical design of electromagnetic mechanism housed within a tight steel casing) and 5Y terminal.
The weighing platform made of steel features centring rings enabling precise positioning of the weights.
The comparator features intuitive and user friendly menu.
Parameters
- Operating temperature: +15 ÷ +30 °C
- Weighing pan dimensions: 1000×800 mm
- Electric compensation range: 0 ÷ 1050 kg
- Stabilization time: 10 s
- Adjustment: internal (automatic)
- Readability [d]: 10 g
- M2 Calibration Range: 200 kg ÷ 1000 kg
- M1 Calibration Range: 1000 kg
- Maximum capacity [Max]: 1050 kg
- Relative humidity change rate: ±10%/4h
- Relative humidity: 40% ÷ 60%
- Operating temperature change rate: ±2°C/12h
- F1 Calibration Range: -
- Recommended load speed: 0,3 m/min
- Maximum permissible load speed: 0,6 m/min
- E2 Calibration Range: -
- Eccentricity (tested load): 1d / 5 mm
- Weighing unit dimensions without self-centering weighing pan: 1010×800×182 mm
- Comparator packaging dimensions without self-centering weighing pan: 1200×1000×440 mm
- E1 Calibration Range: -
- Net weight: 121 kg
- Gross weight: 161 kg
- Standard repeatability [5% Max]: 6 g
- Standard repeatability [Max]: 10 g
- Permissible repeatability: 15 g
- F2 Calibration Range: -
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
